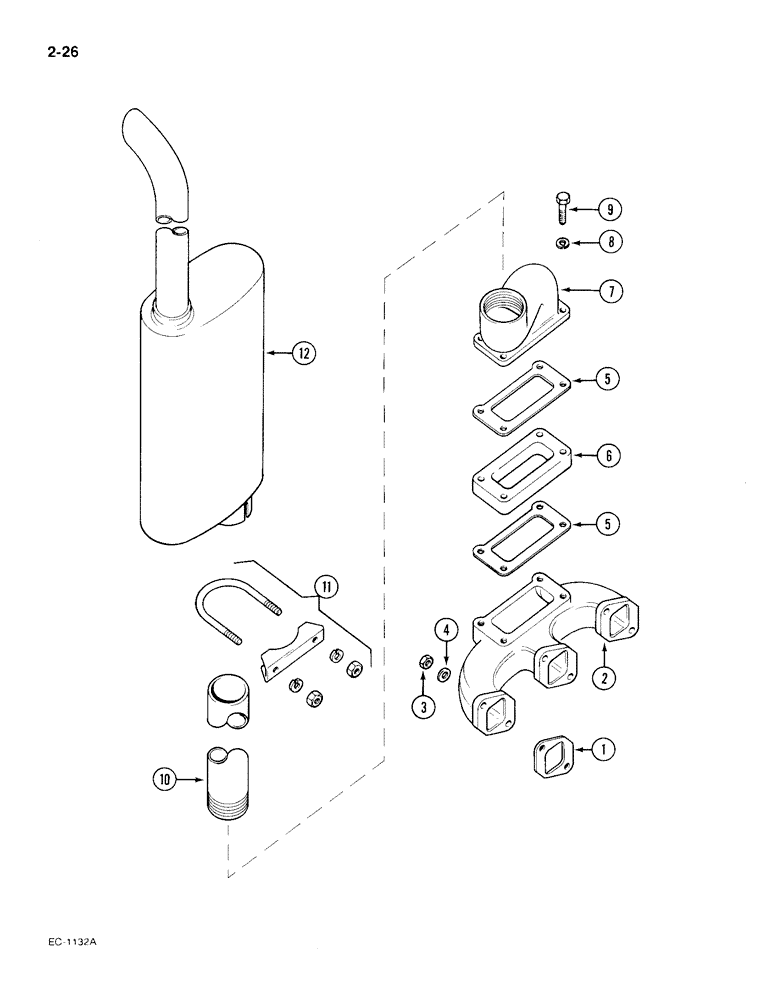

Запчасти Case IH 385 (2-026) - VERTICAL EXHAUST (02) - ENGINE

1

3132434R1

MANIFOLD GASKET,0.5mm Thk

- exhaust manifold

3шт.

2

3121373R3

MANIFOLD

- exhaust

1шт.

3

103026

NUT,3/8"-24, G5

6шт.

4

20285H

WASHER

- plain, 0.406 x 0.75 x 0.105 inch

6шт.

5

3136248R1

MANIFOLD GASKET,0.5mm Thk

- exhaust manifold

2шт.

6

3125792R1

SPACER

- manifold

1шт.

7

3136250R1

ELBOW

- exhaust manifold

1шт.

8

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

9

NLS

NO LONGER SERVICED

4шт.

10

80547C1

TUBE

KIT - service, exhaust pipe, with fitting instructions

1шт.

NSS

NOT SOLD SEPARAT

PIPE - exhaust

1шт.

NSS

NOT SOLD SEPARAT

INSTRUCTIONS - fitting

1шт.

10

379661R1

PIPE

EXTENSION - exhaust, with R.O.P.S. canopy

1шт.

11

1502294C1

CLAMP

- muffler, U-type

1шт.

12

83027C1

MUFFLER

- exhaust, curved end

1шт.

12

83028C1

MUFFLER

- exhaust, curved end, optional to P/N 83027C1

1шт.
