Запчасти Case IH 385 (9-372) - ROPS CANOPY, TWO POST ROPS FRAME (09) - CHASSIS/ATTACHMENTS

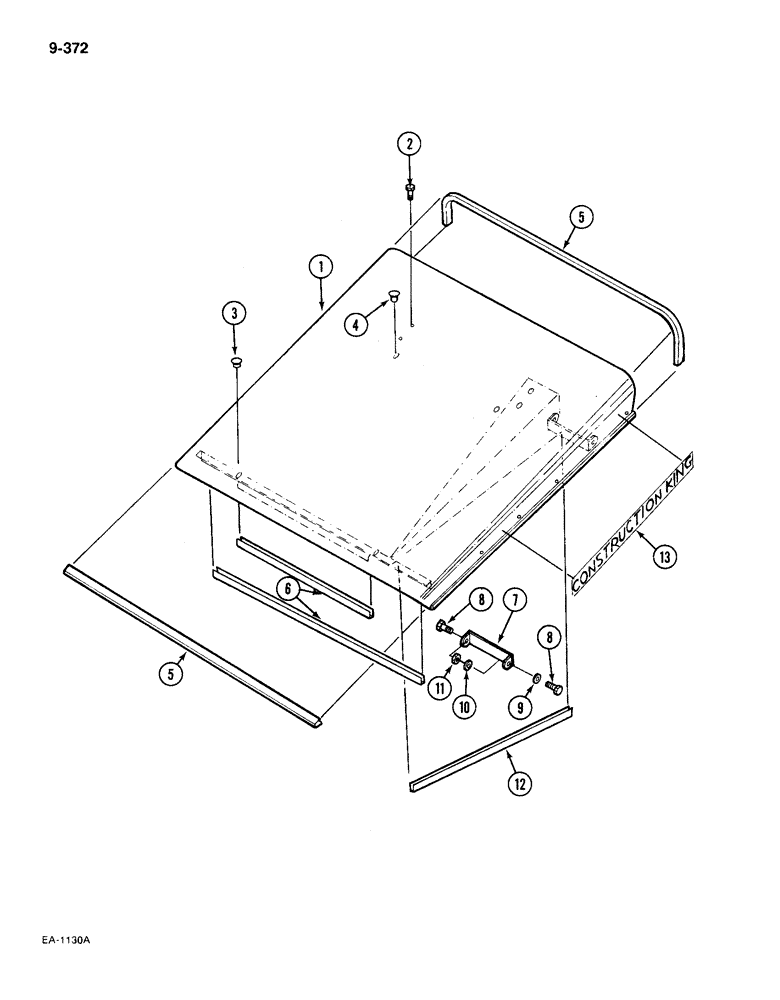

Схема запчастей Case IH 385 - (9-372) - ROPS CANOPY, TWO POST ROPS FRAME (09) - CHASSIS/ATTACHMENTS
9
6
7
12
3
4
8
11
2
10
13
5
8
5
1

Артикул

Название

Примечание

Количество

1

118375C4

TOP

ROOF canopy

1шт.

1

1281633C2

TOP

ROOF canopy, Optional to P/N 118375C4

1шт.

2

28672R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 2", Gr 5

BOLT carriage, 1/2 NC x 2 inch, grade 5

8шт.

3

1332024C1

PLUG,5/8"

Restraining cable 5/8"

2шт.

4

3123992R1

PLUG

7 mm, canopy blanking, without headliner trim

2шт.

5

NSS

NOT SOLD SEPARAT

STRIP trim, cut from P/N 118483C2, canopy with sheared front and rear edges

2шт.

5

118483C2

STRIP, METERS

STRIP roof trim, bulk length

1шт.

6

NSS

NOT SOLD SEPARAT

STRIP trim, cut from P/N 1327666C2

2шт.

6

1327666C2

SEALING STRIP

STRIP trim, bulk length 50 foot roll

1шт.

7

118531C2

BRACKET

stabilizer

4шт.

8

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

8шт.

9

120392

WASHER,1/4", SAE

plain, 0.281 x 0.625 x 0.051 inch

4шт.

10

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

11

120375

NUT,Hex, 1/4" - 20, Gr 5

8шт.

12

NSS

NOT SOLD SEPARAT

STRIP trim, cut from P/N 118524C2

2шт.

12

118524C2

SEALING STRIP

STRIP trim

1шт.

13

Not used in this application

1шт.

Выбрано товаров: 17
