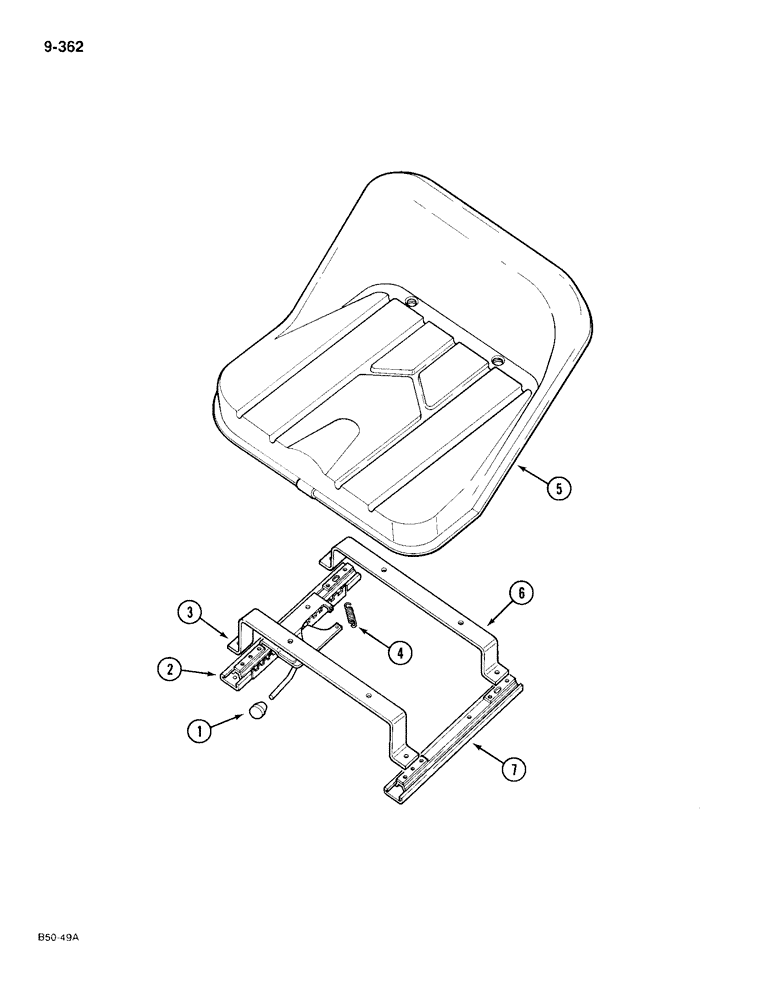

Запчасти Case IH 385 (9-362) - SEAT NON SUSPENSION, LOW PROFILE TRACTORS (09) - CHASSIS/ATTACHMENTS

3121641R91

SEAT ASSY.

SEAT static, Includes: Ref. 1 thru 7

1шт.

160688

SCREW,Cross Pan Hd, 5/16" - 18 x 3/4"

4шт.

3123564R1

LOCK WASHER

WASHER lock, 5/16 inch

4шт.

1

538693R1

BUTTON

KNOB seat adjustment handle

1шт.

2

825199C91

SLIDE

RAIL slide, right, With adjuster

1шт.

160688

SCREW,Cross Pan Hd, 5/16" - 18 x 3/4"

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

120376

NUT,5/16"-18, G5

2шт.

3

3121642R1

SUPPORT

BRACKET front mounting

1шт.

120376

NUT,5/16"-18, G5

2шт.

4

538694R1

SPRING

1шт.

5

538026R1

SEAT ASSY.

SEAT pan

1шт.

6

3121643R1

SUPPORT

BRACKET rear mounting

1шт.

160688

SCREW,Cross Pan Hd, 5/16" - 18 x 3/4"

6шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

7

825198C1

RAIL

slide, left

1шт.
