Запчасти Case IH 385 (9-358) - SEAT, DELUXE SUSPENSION, WITHOUT CAB, WITH BEFORE AND AFTER HEIGHT ADJUSTMENT (09) - CHASSIS/ATTACHMENTS

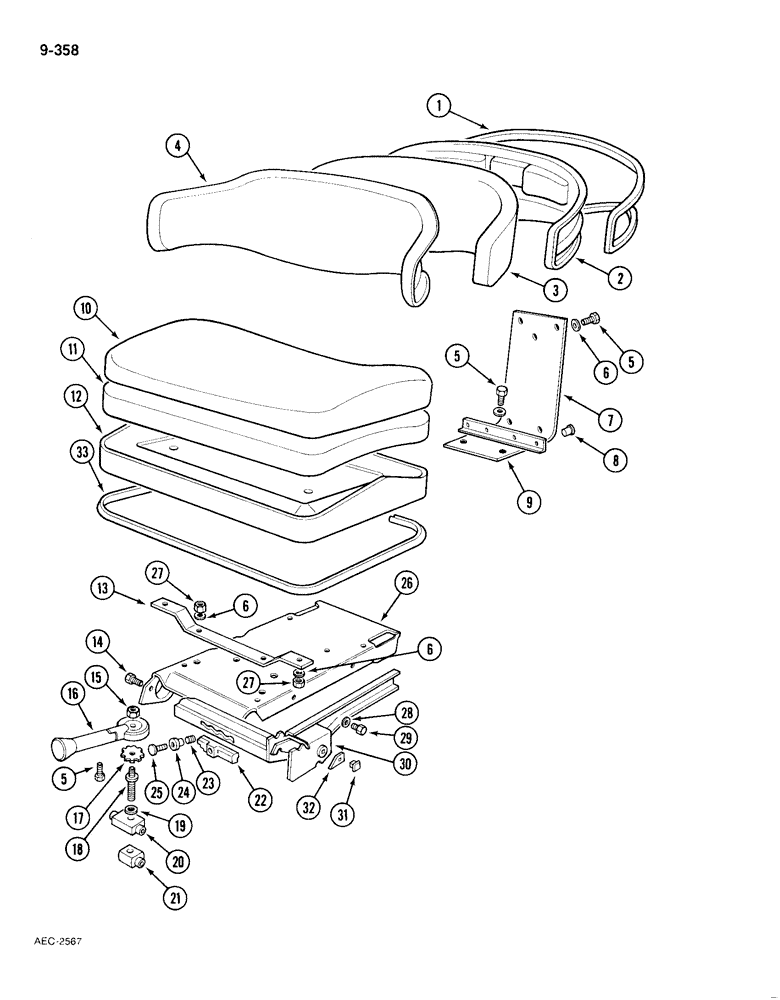

Схема запчастей Case IH 385 - (9-358) - SEAT, DELUXE SUSPENSION, WITHOUT CAB, WITH BEFORE AND AFTER HEIGHT ADJUSTMENT (09) - CHASSIS/ATTACHMENTS
5
31
3
27
28
20
25
14
10
33
5
30
24
13
15
4
8
32
26
6
9
2
17
27
21
29
12
1
7
22
16
23
18
11
19
6
5
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

3121421R92

SEAT

deluxe suspension, PVC, Includes: Ref. 1 thru 33

1шт.

3123336R1

BACKREST

CUSHION back, PVC, Includes: Ref. 1 thru 4

1шт.

1

NSS

NOT SOLD SEPARAT

STRIP edging

1шт.

2

NSS

NOT SOLD SEPARAT

BACKREST

1шт.

3

NSS

NOT SOLD SEPARAT

CUSHION seat back

1шт.

4

NSS

NOT SOLD SEPARAT

COVER seat back

1шт.

5

30001R1

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

hex, M8 x 16 mm, class 10.9

9шт.

6

112723

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

11шт.

7

3123331R1

SUPPORT

seat back

1шт.

8

3125163R1

RIVET

pop

4шт.

9

3125164R1

BRACKET

1шт.

3123332R1

CUSHION, SEAT

CUSHION seat, PVC, Includes: Ref. 10, 11 and 12

1шт.

10

NSS

NOT SOLD SEPARAT

COVER seat

1шт.

11

NSS

NOT SOLD SEPARAT

CUSHION foam seat

1шт.

12

NSS

NOT SOLD SEPARAT

PAN seat

1шт.

13

3123334R1

SUPPORT

BRACKET seat tilt

1шт.

14

3123312R1

SCREW

taptite, M8 x 16 mm

1шт.

15

3123326R1

NUT

clamp

1шт.

16

3123327R1

HANDLE

complete

1шт.

17

538570R1

GEAR

1шт.

18

3123325R1

BOLT

adjuster

1шт.

19

3123322R1

THRUST WASHER

WASHER thrust

1шт.

20

3123323R1

TRUNNION

adjuster, large

1шт.

21

3123324R1

TRUNNION

adjuster, small

1шт.

22

3123307R1

SLIDE

seat adjusting

1шт.

23

3220537R1

SPRING

slider

1шт.

24

3123309R1

BUTTON

KNOB slide

1шт.

25

3220548R1

SCREW

BOLT hex, M6 x 25 mm

1шт.

26

3123313R1

SEAT PLATE

PLATE top

1шт.

27

934109R1

NUT

hex, 4 mm

6шт.

28

933965R1

LOCK WASHER,M10

2шт.

29

3123317R1

BOLT

2шт.

30

3123314R1

SHROUD ASSY.

SHROUD right

1шт.

31

538695R1

PLUG

end

1шт.

32

3220525R1

INDICATOR

1шт.

33

NSS

NOT SOLD SEPARAT

STRIP protection, order P/N 3123332R1

1шт.
