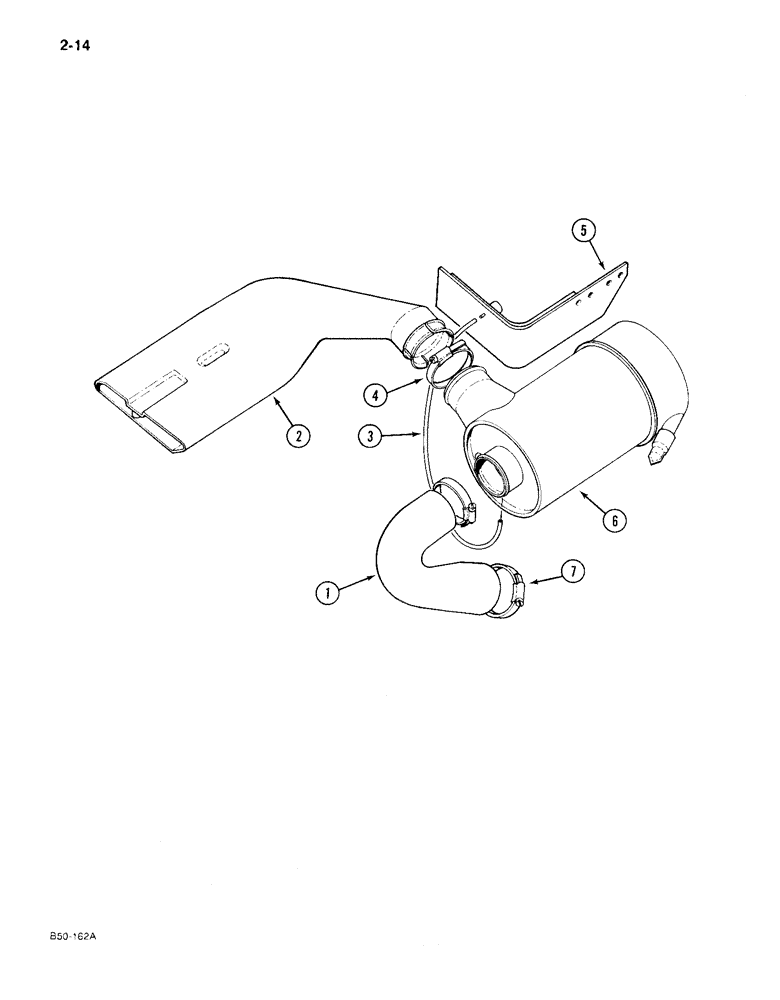

Запчасти Case IH 385 (2-014) - AIR CLEANER AND CONNECTIONS (02) - ENGINE

1

1502062C1

INTAKE AIR HOSE,63.50 mm ID, 71.12 mm ID x 170.94 mm

HOSE - air cleaner outlet

1шт.

2

529864R1

DUCT

- air inlet

1шт.

3

NSS

NOT SOLD SEPARAT

Not used in this applicaton

1шт.

4

21423R1

CLAMP

- hose, 3-5/16 inch

1шт.

5

1502064C1

SUPPORT

BRACKET - air cleaner mounting

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

- hex, 3/8 NC x 3/4 inch, grade 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

6

3125248R94

AIR CLEANER

CLEANER - air, Coopers No. sk-15235, see Fig. 2-020

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

- hex, 3/8 NC x 3/4 inch, grade 5

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

93-41039

LOCK WASHER,Ext Tooth, 3/8"

WASHER - lock, external tooth, 3/8 inch

1шт.

7

539994R1

CLAMP

- hose, No. 350S

2шт.
