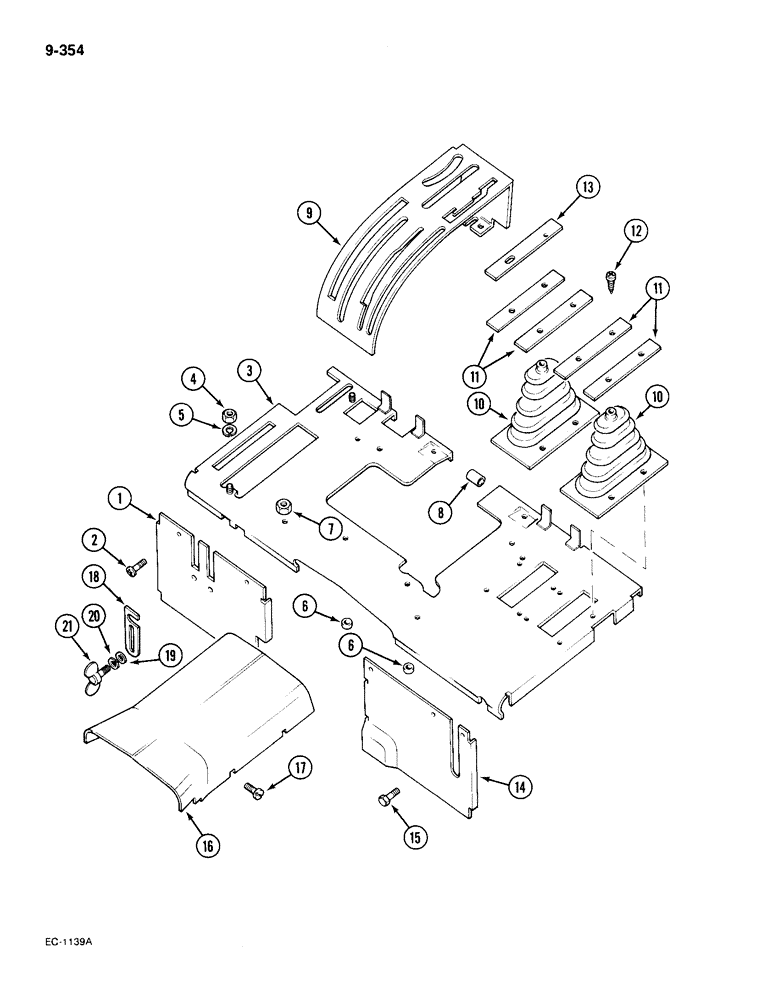

Запчасти Case IH 385 (9-354) - SEAT DECK AND PANELS, WITHOUT CAB (09) - CHASSIS/ATTACHMENTS

1

3125857R1

CHANNEL

rear vertical, right, Serial Range: -18001

1шт.

1

94161C1

PROTECTION PLATE

CHANNEL rear vertical, right 18001 to

1шт.

2

470-12510

SCREW,Slotted Pan Hd, 1/4"-20 x 5/8"

machine pan slotted, 1/4 NC x 5/8 inch

2шт.

3

3129233R1

COVER ASSY

PLATFORM seat, Serial Range: -180001

1шт.

3

99656C2

PLATFORM ASSY.

PLATFORM seat 18001 to

1шт.

4

120368

NUT,5/16"-24, G5

2шт.

5

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

6

401941R1

SPACER

mounting, short

2шт.

7

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

2шт.

8

3125820R1

SLEEVE

PVC, cable clips

6шт.

9

529457R61

COVER ASSY

COVER hitch control lever, Serial Range: -180001

1шт.

9

1331007C1

HOUSING

COVER hitch control lever 18001 to

1шт.

10

1502031C1

BOOT

control lever

2шт.

11

1502032C1

STRIP

boot retainer

4шт.

12

27046R1

SELF-TAP SCREW,Cross Pan Hd, #8 x 7/8"

SCREW tapping, pan cross recess, No. 8 x 7/8 inch

8шт.

13

1283389C1

STRIP

retaining, With R.O.P.S. fit

1шт.

14

528638R2

PROTECTION PLATE

CHANNEL rear vertical, left

1шт.

15

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

hex, 1/4 NC x 5/8 inch, grade 5

3шт.

16

66290C1

COVER

clutch housing

1шт.

17

470-1256

SCREW,Slotted Pan Hd, 1/4"-20 x 3/8"

pan head slotted, 1/4 NC x 3/8 inch

4шт.

18

3125862R1

PLATE

lockout, auxiliary valve lever

2шт.

19

120394

WASHER,3/8", SAE

WASHER flat, 13/32 x 13/16 x 3/64 inch

2шт.

20

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

21

164603C1

THUMB SCREW,3/8" - 16 x 5/8"

SCREW adjusting

2шт.
