Запчасти Case IH 385 (9-350) - INSTRUMENT HOUSING AND SIDE PANELS, WITHOUT CAB (09) - CHASSIS/ATTACHMENTS

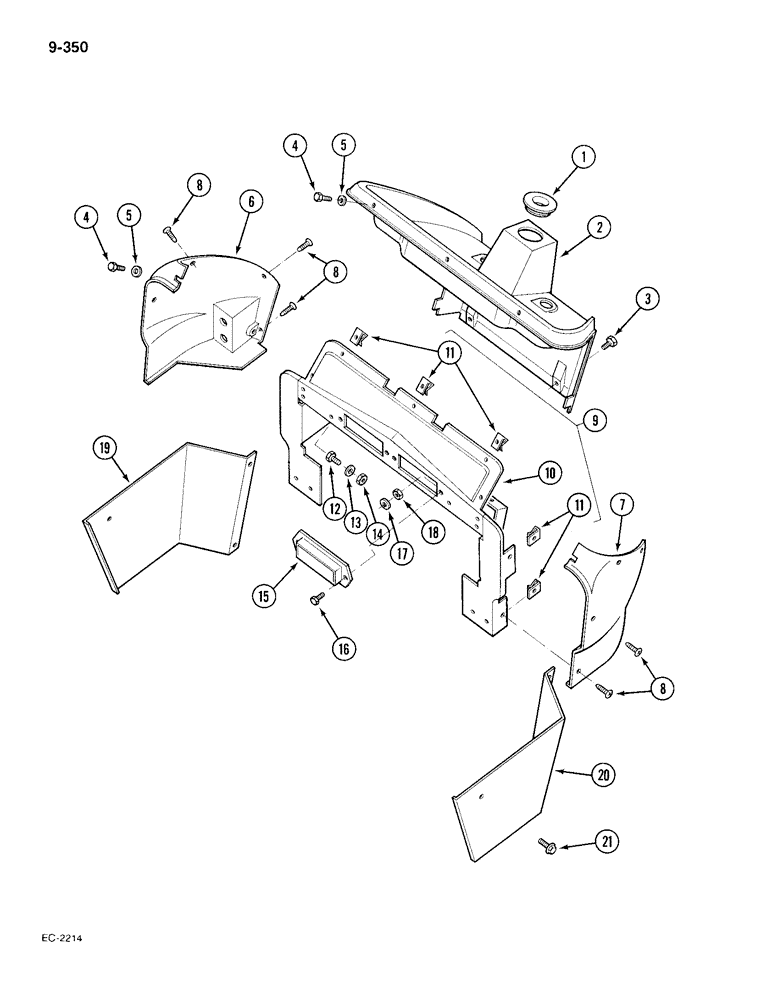

Схема запчастей Case IH 385 - (9-350) - INSTRUMENT HOUSING AND SIDE PANELS, WITHOUT CAB (09) - CHASSIS/ATTACHMENTS
4
1
10
6
5
9
5
8
18
16
15
3
4
13
21
7
19
11
2
20
8
11
17
12
14
8

Артикул

Название

Примечание

Количество

1

3123366R1

PLUG

BOOT rubber, Steering column

1шт.

2

1500974C3

PANEL, INSTRUMENTS

HOUSING instrument panel

1шт.

2

1332884C1

PANEL, INSTRUMENTS

HOUSING instrument panel, version with oil pressure gauge and ammeter

1шт.

3

160536

SCREW,Cross Pan Hd, 1/4" - 20 x 5/8"

2шт.

4

23994R1

SELF-TAP SCREW,Hex Hd, #10 x 5/8"

SCREW, SELF TAPPING, Hex Hd, #10 x 5/8"

3шт.

5

120391

WASHER,#10

flat, 0.219 x 0.5 x 0.036 inch

3шт.

6

3121712R3

HOUSING

instrument panel side, right

1шт.

7

3121711R3

HOUSING

instrument panel side, left

1шт.

8

24394R1

SELF-TAP SCREW,Hex Wash Hd, #10 x 5/8"

SCREW Phillips pan, tapping, No. 10 x 5/8 inch

10шт.

9

3125771R92

PLATE ASSY.

PLATE instrument panel support, Includes: Ref. 10 and 11

1шт.

10

NSS

NOT SOLD SEPARAT

PLATE instrument panel back

1шт.

11

3123171R1

NUT

captive

1шт.

12

179814

SPACER

- hex, 5/16 NC x 5/8 inch, grade 5

2шт.

13

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

14

9635082

NUT,5/16" - 18, Gr 5

hex, 5/16 inch NC, grade 5

2шт.

15

NSS

NOT SOLD SEPARAT

BOX fuse, see Page 97

2шт.

16

159929

SCREW,Cross Pan Hd, #10 - 24 x 5/8"

4шт.

17

120217

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

18

120361

NUT,Hex Mach Screw, #10 - 24

4шт.

19

3121638R1

GUARD

PANEL lower rear side, right

1шт.

20

3121637R1

GUARD

PANEL lower rear side, left

1шт.

21

463-42510

SCREW,Hex, 1/4" - 20 x 5/8"

cap, 1/4 NC x 5/8 inch

6шт.

Выбрано товаров: 22
