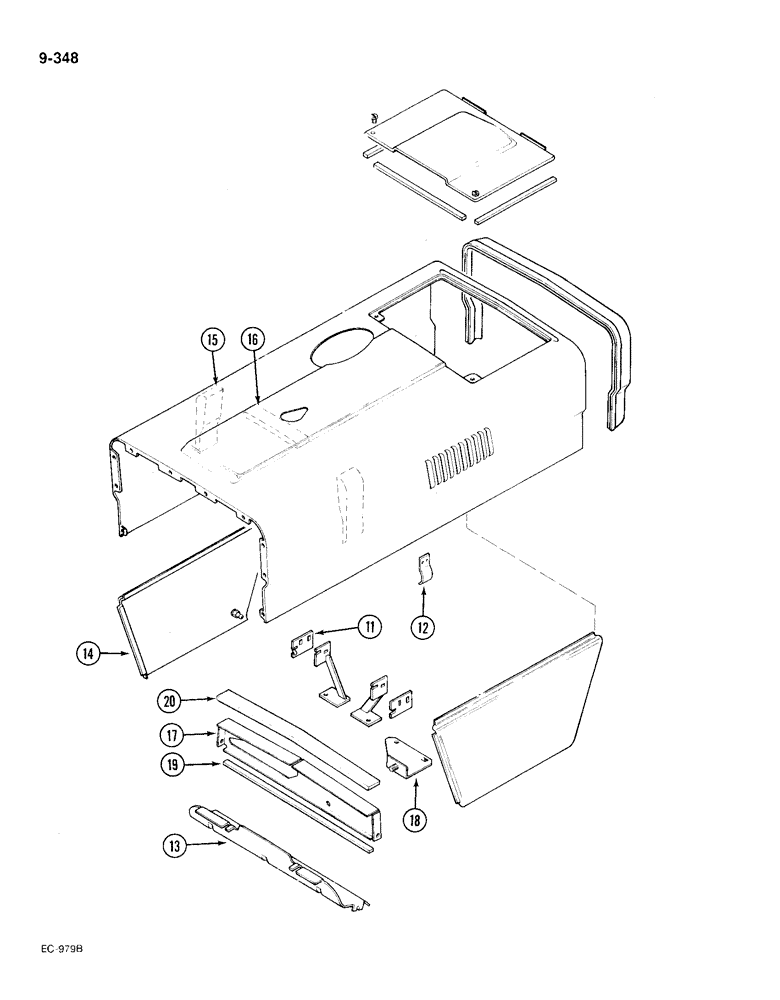

Запчасти Case IH 385 (9-348) - HOOD AND PANELS (CONTD) (09) - CHASSIS/ATTACHMENTS

11

99642C1

PLATE

adjustable, right, Serial Range: -19651

1шт.

11

1333180C1

CLIP

panel, front, Start Serial: 19651

1шт.

598794R1

CARRIAGE BOLT,1/4" - 20 x 1/2", Grade 5

BOLT carriage, 1/4 NC x 1/2 inch, grade 5

2шт.

231-4144

NUT,1/4"-20, GB

NUT hex lock, 1/4 inch NC, grade 5

4шт.

120392

WASHER,1/4", SAE

plain, 0.281 x 0.625 x 0.051 inch

2шт.

12

94367C1

SPRING

RETAINER side panel, Serial Range: -19651

2шт.

12

1333181C1

CLIP

panel, rear

2шт.

30267R1

NUT,M4, Cl 8

hex, 4 mm, class 10

4шт.

13

3121397R2

BAFFLE

upper

1шт.

30209R1

WASHER,M6 x 13 x 2, HT

plain, 6 mm

4шт.

30381R1

NUT,M6 x 1, Cl 10

NUT hex, M6

4шт.

14

1970615C1

PANEL

side, right, A

1шт.

14

1333167C1

PANEL

side, right, A

1шт.

15

98935C1

SEAL

foam, hood corner

2шт.

16

NSS

NOT SOLD SEPARAT

SEAL hood center, 200 mm, cut from bulk length

1шт.

17

98906C1

DEFLECTOR

BAFFLE upper, air

1шт.

17

1333035C1

DEFLECTOR

BAFFLE upper, air, MFD tractors P.I.N. 19651 and after

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

3шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

18

98911C1

BRACKET

mounting, upper baffle

1шт.

18

1333026C1

BRACKET

mounting, upper baffle, MFD tractors P.I.N. 19651 and after

1шт.

3118801R1

SPACER

insulation

1шт.

95-11034

WASHER,1/4"

plain, 0.344 x 0.688 x 0.051 inch

2шт.

120376

NUT,5/16"-18, G5

1шт.

19

NSS

NOT SOLD SEPARAT

SEAL baffle lower, 425 mm, cut from bulk length

1шт.

20

NSS

NOT SOLD SEPARAT

SEAL upper, baffle to hood, 465 mm, cut from bulk length

1шт.
