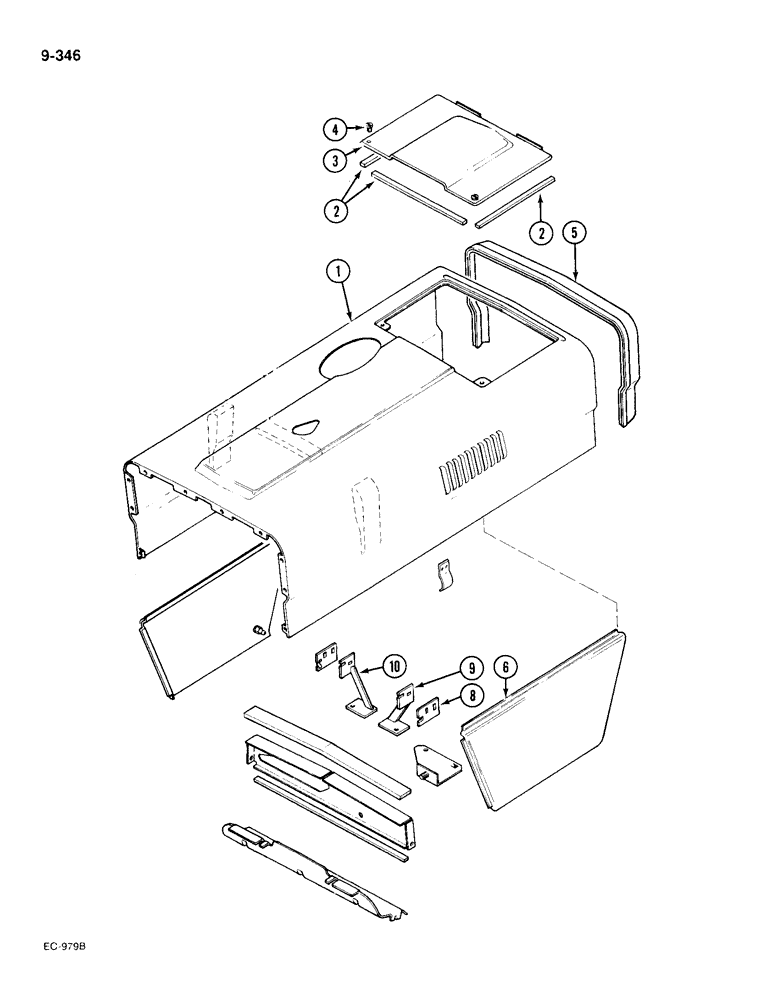

Запчасти Case IH 385 (9-346) - HOOD AND PANELS (09) - CHASSIS/ATTACHMENTS

1

94192C93

HOOD ASSY.

HOOD vertical exhaust, tractors with vertical exhaust

1шт.

1

94216C93

HOOD ASSY.

HOOD, tractors with underslung exhaust

1шт.

1

99621C93

HOOD ASSY.

HOOD, tractors with vertical exhaust, MFD tractors P.I.N. 18001 and after

1шт.

1

99623C93

HOOD ASSY.

HOOD underslung exhaust, tractors with underslung exhaust, MFD tractors P.I.N. 18001 and after

1шт.

9635082

NUT,5/16" - 18, Gr 5

hex, 5/16 inch NC, grade 5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

1502286C1

NUT

cage floating, 5/16 inch NC

2шт.

98778C1

BOLT

hex, 5/16 inch NC, painted black

4шт.

98775C1

WASHER

flat, 5/16 inch, painted black

4шт.

2

NSS

NOT SOLD SEPARAT

SEAL rear hood cover, side 19 inch, cut from P/N 1265282C1 or P/N 73211C1

2шт.

NSS

NOT SOLD SEPARAT

SEAL rear hood cover, front 10.9 inch, cut from P/N 1265282C1 or P/N 73211C1

1шт.

2

1265282C1

STRIP

SEAL bulk length

1шт.

2

73211C1

GASKET

SEAL bulk length, Optional to P/N 1265282C1

1шт.

3

1330795C1

COVER

rear hood, With decal P/N 321-6714, Includes: Ref. 4

1шт.

321-6714

DECAL

battery jump start warning, English

1шт.

4

389872R1

THUMB SCREW,Knurled Head, 5/16"-18 x 3/4"

SCREW knurled

2шт.

389872R1

THUMB SCREW,Knurled Head, 5/16"-18 x 3/4"

SCREW knurled, Optional with P/N 389872R1

2шт.

376787R1

WASHER

X-type, 0.256 x 0.75 inch

2шт.

5

NSS

NOT SOLD SEPARAT

SEAL hood sheet, 45.7 inch, cut from P/N 1265280C1

1шт.

5

1265280C1

SEAL

rubber, bulk length, 4 foot roll

1шт.

6

1970616C1

PANEL

side, left, A

1шт.

P/N 1970616C1 is for a row crop tractor

1шт.

6

1333168C1

PANEL

side, left, A

1шт.

8

99644C1

PLATE

adjustable, left, Serial Range: -19651

1шт.

8

1333180C1

CLIP

panel, front, Start Serial: 19651

1шт.

598794R1

CARRIAGE BOLT,1/4" - 20 x 1/2", Grade 5

BOLT carriage, 1/4 NC x 1/2 inch, grade 5

2шт.

231-4144

NUT,1/4"-20, GB

NUT hex lock, 1/4 inch NC, grade 5

4шт.

120392

WASHER,1/4", SAE

plain, 0.281 x 0.625 x 0.051 inch

2шт.

9

99628C1

SUPPORT

side panel, left, Serial Range: -19651

1шт.

9

1333183C1

SUPPORT

side panel, right, Start Serial: 19651

1шт.

10

99627C1

SUPPORT

side panel, right, Serial Range: -19651

1шт.

10

1333184C1

SUPPORT

side panel, left, Start Serial: 19651

1шт.
