Запчасти Case IH 385 (9-344) - RADIATOR GRILLE (09) - CHASSIS/ATTACHMENTS

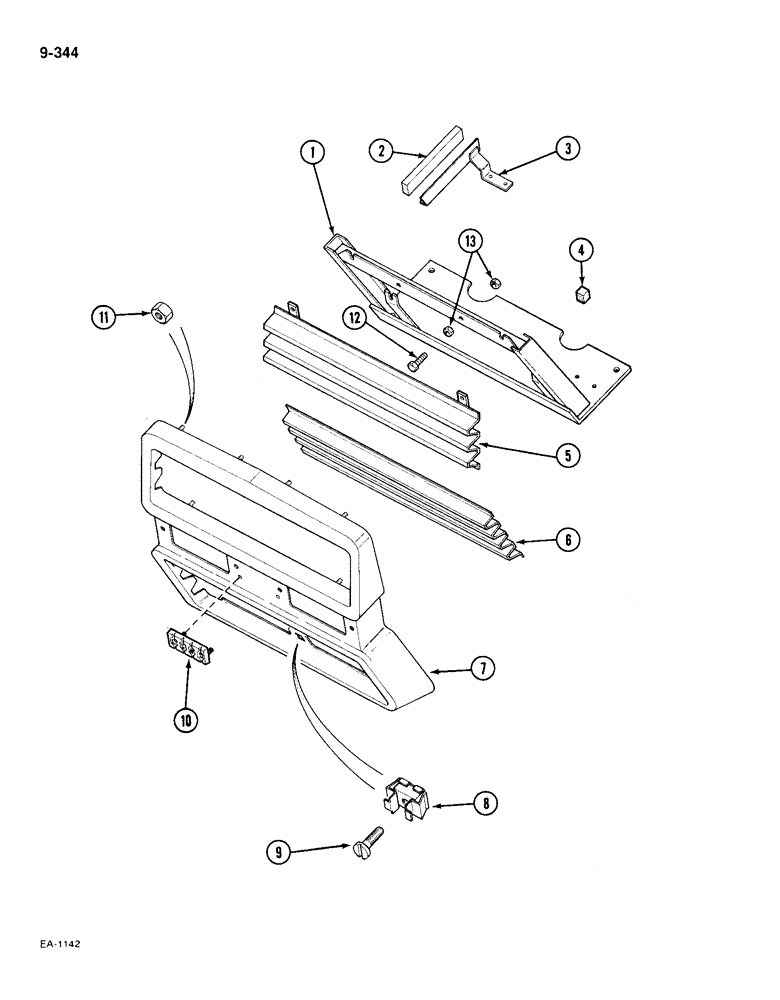

Схема запчастей Case IH 385 - (9-344) - RADIATOR GRILLE (09) - CHASSIS/ATTACHMENTS
13
10
11
8
1
2
3
7
5
8
4
9
12

Артикул

Название

Примечание

Количество

1

94301C3

SUPPORT

grille and hood, not fitted to MFD tractors

1шт.

1

99440C3

SUPPORT

grille and hood, MFD tractors from P.I.N., Serial Range: 18001-19650

1шт.

1

1333015C1

SUPPORT

grille and hood, MFD tractors P.I.N. 19651 and after

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

hex, 3/8 NC x 1-1/4 inch, grade 5, ZND

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

hex, 3/8 NC x 1 inch, grade 5

2шт.

99854C1

SHIM

grille support

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL side panel, foam, cut from P/N 73228C1

2шт.

73228C1

GASKET

SEAL FOAM, 4 foot roll

1шт.

3

1970649C1

BRACKET

SUPPORT side seal, right, not fitted to MFD tractors

1шт.

3

1970650C1

BRACKET

SUPPORT side seal, left, not fitted to MFD tractors

1шт.

3

1970647C1

BRACKET

SUPPORT side seal, right, MFD tractors P.I.N. 18001 and after

1шт.

3

1970648C1

BRACKET

SUPPORT side seal, left, MFD tractors P.I.N. 18001 and after

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

120392

WASHER,1/4", SAE

plain, 0.281 x 0.625 x 0.051 inch

2шт.

4

NSS

NOT SOLD SEPARAT

SEAL grille support sides, cut from P/N 73220C1

2шт.

73220C1

FILLING STRIP

SEAL foam, bulk length, 4 foot roll

1шт.

5

94283C1

SCREEN

upper grille

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

120392

WASHER,1/4", SAE

plain, 0.281 x 0.625 x 0.051 inch

4шт.

6

94285C1

SCREEN

lower grille

1шт.

7

1970623C1

GRILLE

front

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

120392

WASHER,1/4", SAE

plain, 0.281 x 0.625 x 0.051 inch

4шт.

8

99424C1

NUT

RETAINER nut

1шт.

9

160544

SCREW,Cross Pan Hd, 1/4" - 20 x 3/4"

1шт.

10

A181523

EMBLEM CASE/IH

1шт.

131431

NUT

self-threading, 1/4 inch

2шт.

11

120375

NUT,Hex, 1/4" - 20, Gr 5

10шт.

120392

WASHER,1/4", SAE

plain, 0.281 x 0.625 x 0.051 inch

10шт.

180137

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

hex, 3/8 NC x 1 inch

2шт.

12

179850

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

hex, 3/8 NC x 2-3/4 inch, grade 5, Serial Range: -18001

2шт.

13

120377

NUT,3/8" - 16, Gr 5

, Serial Range: -18001

4шт.

Выбрано товаров: 33
