Запчасти Case IH 385 (9-338) - SWINGING DRAWBAR (09) - CHASSIS/ATTACHMENTS

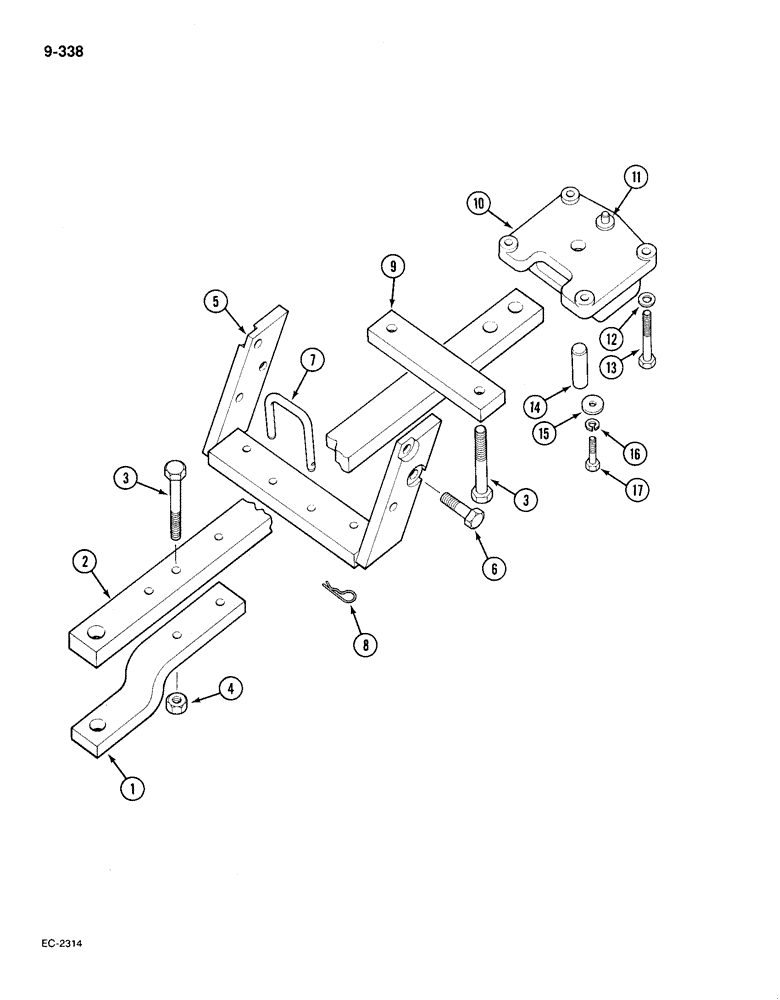

Схема запчастей Case IH 385 - (9-338) - SWINGING DRAWBAR (09) - CHASSIS/ATTACHMENTS
16
12
17
6
4
8
2
3
1
15
13
14
10
11
7
5
3
9

Артикул

Название

Примечание

Количество

1

3064333R1

DRAWBAR CLAMP

CLEVIS drawbar

1шт.

2

82785C1

DRAWBAR, SWINGING

BAR draw, swinging

1шт.

3

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

hex, 5/8 NC x 3 inch, grade 5, Course Threads

4шт.

4

102639

NUT,5/8"-11, G5

2шт.

5

3129483R1

DRAWBAR SUPPORT

SUPPORT swinging drawbar

1шт.

6

271560

PANEL,Hex, 5/8" - 11 x 1 3/4", Gr 5

- hex, 5/8 NC x 1-3/4 inch, grade 5

4шт.

7

1502071C1

COTTER PIN,14.28mm OD

PIN drawbar stop

1шт.

8

720631R1

LINCH PIN

PIN quick attach, cotter

1шт.

9

3121227R1

BAR

drawbar bumper

1шт.

10

406468R31

SUPPORT

drawbar pivot, Includes: Ref. 11

1шт.

11

19846R1

DOWEL,1/2" x 1 1/4"

PIN dowel, 1/2 x 1-1/4 inch

1шт.

12

3061325R1

WASHER

hardened

4шт.

13

264239R1

BOLT,Hex, 1/2" - 13 x 2", Gr 8

hex, 1/2 NC x 2 inch, grade 8

4шт.

14

1502366C1

PIVOT PIN

PIN drawbar pivot

1шт.

15

49139D

WASHER,10.32mm ID x 38.1mm OD x 5mm Thk

PLATE lock, drawbar pin

1шт.

16

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

17

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

hex, 3/8 NC x 7/8 inch, grade 5

1шт.

Выбрано товаров: 17
