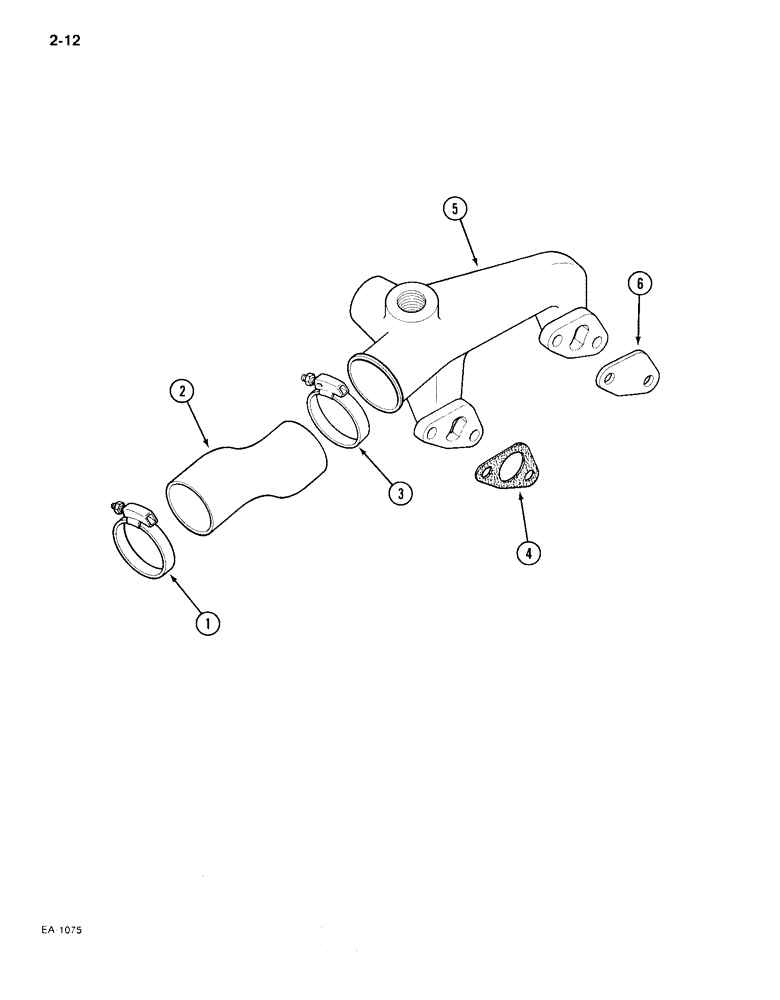

Запчасти Case IH 385 (2-012) - COOLANT MANIFOLD (02) - ENGINE

1

3218259R1

CLAMP,M40-60, Worm

- hose

1шт.

2

3144028R2

HOSE

- Connecting 50.70 mm ID x 112.00 mm, SAE J20B Or SAE 20

1шт.

3

3218259R1

CLAMP,M40-60, Worm

- hose

1шт.

4

3055306R1

GASKET

- manifold, water collecting

3шт.

5

3218034R1

MANIFOLD

- water collecting

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

3136506R1

RING

- packing

1шт.

3055574R1

WASHER,8.5mm ID x 19mm OD x 2.5mm Thk

- flat, 5/16 inch

4шт.

444667

PLUG

- automotive square socket, 1/2 inch NPTF

2шт.

3218395R1

BELLEVILLE WASHER,8.199mm ID x 16mm OD x 0.9mm Thk

Lock (5/16") M8.2 ID x 16 OD x .9 Thk

3шт.

6

3132721R1

COVER

- closing

2шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

6шт.
