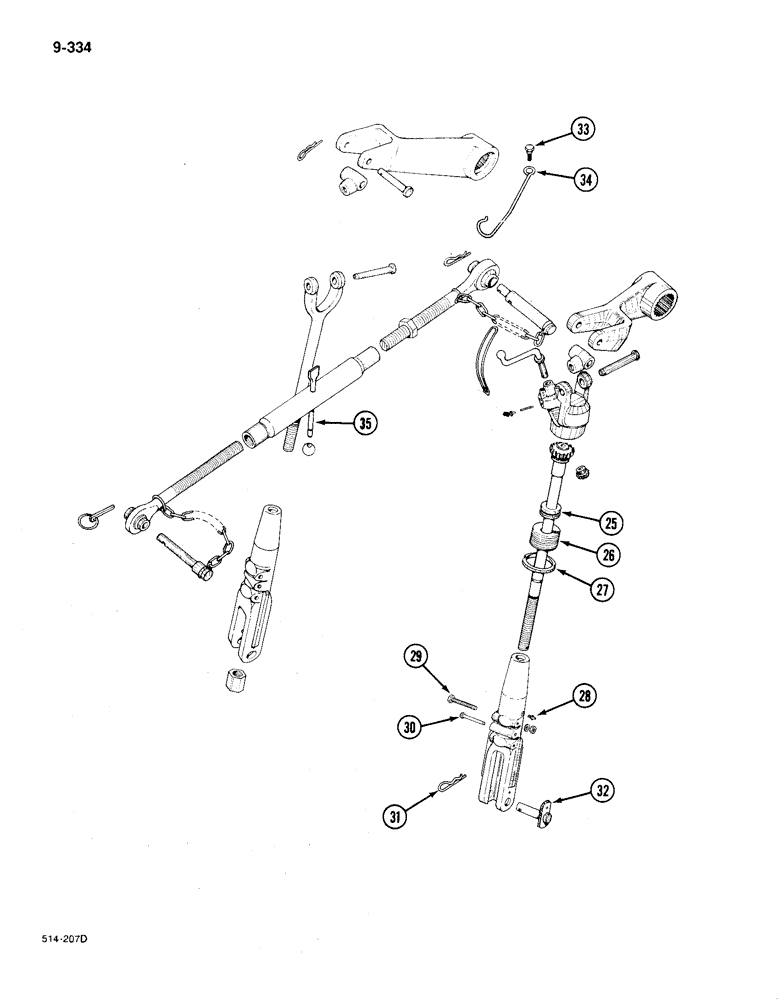

Запчасти Case IH 385 (9-334) - THREE POINT HITCH (CONTD) (09) - CHASSIS/ATTACHMENTS

25

3044346R91

BALL BEARING

BEARING leveling screw

1шт.

25

3044347R91

THRUST BEARING

BEARING leveling screw, optional to P/N 3044346R91

1шт.

25

3044348R91

BEARING, THRUST

BEARING leveling screw, optional to P/N 3044346R91

1шт.

25

3068049R91

BALL BEARING

BEARING leveling screw, optional to P/N 3044346R91

1шт.

26

3069064R1

BEARING

leveling screw

1шт.

27

3069065R1

LOCK NUT

leveling screw bearing

1шт.

28

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

FITTING grease, drive type, 1/4 inch

2шт.

29

179828

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

2шт.

9635082

NUT,5/16" - 18, Gr 5

hex, 5/16 inch NC, grade 5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

30

68804C1

CLEVIS PIN,7.94mm OD x 58.74mm L

PIN float stop

2шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

2шт.

31

NSS

NOT SOLD SEPARAT

not used in this application

1шт.

32

1502066C2

PIVOT PIN

PIN, not used in this application

1шт.

33

391047R1

BOLT,Shldr, Hex, 3/8" - 16 x 1.18"

BOLT - Shoulder

1шт.

23042R1

WASHER

flat, 17/32 x 1 x 1/32 inch

1шт.

34

530050R3

CLIP,ELECTRICAL

CLIP upper link storage

1шт.

35

65958C2

ROD

turnbuckle handle, part of upper link P/N 528085R91

1шт.
