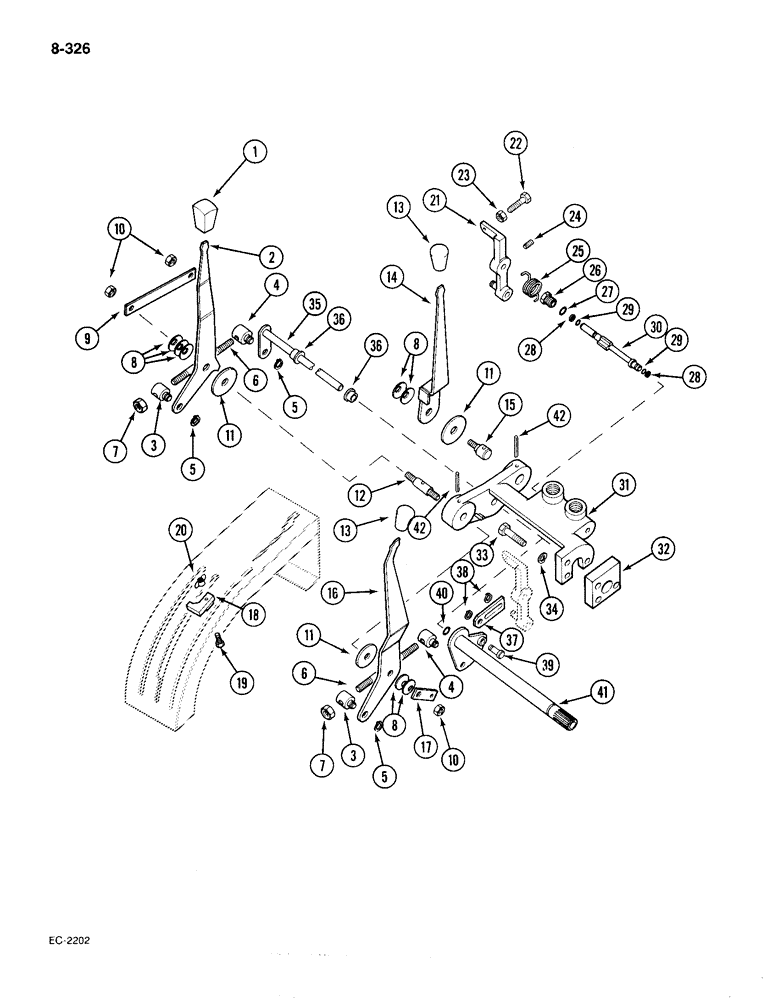

Запчасти Case IH 385 (8-326) - DRAFT CONTROL LEVERS, WITHOUT CAB (08) - HYDRAULICS

1

400068R1

BUTTON

GRIP load control

1шт.

2

94163C1

LEVER ASSY.

LEVER load control

1шт.

3

400086R1

PIN

connecting, hitch link front

2шт.

4

400087R1

PIN

connecting, hitch link rear

2шт.

5

204502R1

SNAP RING,#43, Ext

4шт.

6

400085R1

STUD

connecting rod, hitch link

2шт.

7

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

2шт.

8

536847R1

BELLEVILLE WASHER

WASHER Belleville

7шт.

9

536849R1

PLATE

outer retaining

1шт.

10

231-1446

NUT,3/8" - 16, Gr 5

NUT LOCK, 3/8"-16, GB

3шт.

11

380421R1

FRICTION WASHER

WASHER friction, sensitivity control

3шт.

12

400081R1

BOLT,3/8" - 16 x 72.90mm, HT

- Hitch control lever pivot

1шт.

13

400072R1

BUTTON

GRIP position and speed control

2шт.

14

94165C1

LEVER ASSY.

LEVER flow control adjusting

1шт.

15

527919R1

BOLT

BOLT - Flow lever pivot

1шт.

16

94164C1

LEVER ASSY.

LEVER flow control adjusting

1шт.

17

537600R1

PLATE

inner retaining

1шт.

18

3118646R1

STOP

position control

1шт.

19

28000R1

BOLT

BOLT projection weld, 1/4 NC x 3/4 inch

1шт.

20

86627130

WING NUT,1/4"-20

NUT wing, 1/4 inch NC

1шт.

21

529353R1

ARM ASSY.

ARM flow control

1шт.

22

1502037C1

SET SCREW

SCREW set, hex, 1/4 NC x 1-1/2 inch

1шт.

23

114501

JAM NUT,Jam, 1/4"-20, G5

1шт.

24

65461C1

SET SCREW

SCREW, 1/4 inch NC, with nylon patch insert

1шт.

25

529352R1

SPRING

return

1шт.

26

529356R1

PLUG

variable flow control valve

1шт.

27

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, class 6

1шт.

28

529355R1

WASHER

back up

2шт.

29

360599R1

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

3/16 x 5/16 inch, class 5

2шт.

30

529351R1

SPOOL

variable flow control valve

1шт.

31

529349R3

SUPPORT

hitch control shaft

1шт.

32

3129761R1

SPACER

1шт.

33

179849

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

- hex, 3/8 NC x 2-1/2 inch, grade 5

3шт.

34

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

35

94168C1

SHAFT

load control

1шт.

36

374940R1

NYLON BEARING

BEARING control lever shaft

2шт.

37

527926R1

LINK

flow control over-ride

1шт.

38

104977R1

SNAP RING,#X31, .243" Dia, E-Type

RING, RETAINING, #X31, .243" Dia, E-Type

2шт.

39

527923R1

PIN

link arm

1шт.

40

252739R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

1/2 x 11/16 inch, class 5

1шт.

41

94167C1

SHAFT

position control

1шт.

42

19716R1

PIN,4.75mm OD x 44.45mm L, Coiled

2шт.
