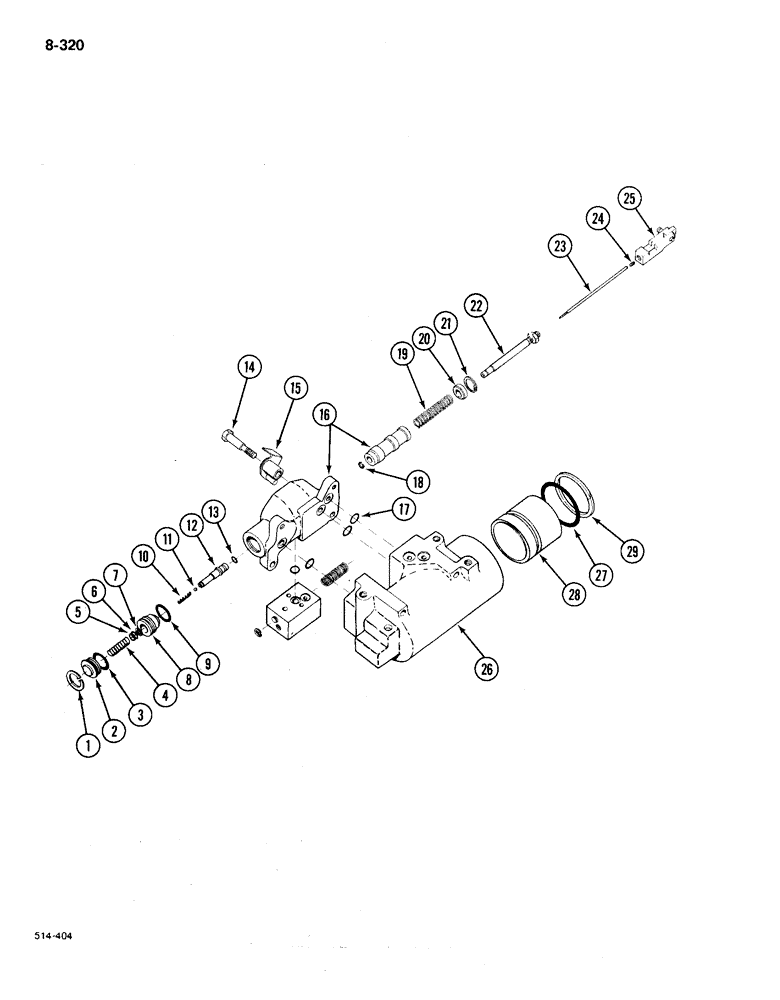

Запчасти Case IH 385 (8-320) - DRAFT CONTROL CYLINDER AND VALVE (08) - HYDRAULICS

399893R92

VALVE

draft control, Includes: Ref. 1 thru 13

1шт.

1

58102R1

SNAP RING,1.312", Int, #131

Drop valve 1.312", Int, #131

1шт.

2

376770R1

PLUG

drop poppet valve

1шт.

3

391733R1

O-RING,0.07" Thk x 1.114" ID, -24, Cl 6, 90 Duro

1-1/8 x 1-1/4 inch, class 6

1шт.

4

376768R1

SPRING

drop poppet valve

1шт.

5

376767R1

BACK-UP RING,9.91mm ID x 12.5mm OD x 1.32mm Thk

drop poppet valve inner O-ring

1шт.

6

406182R1

O-RING,1.78mm Thk x 9.25mm ID, 80 Duro

3/8 x 1/2 x 1/16 inch

1шт.

7

376767R1

BACK-UP RING,9.91mm ID x 12.5mm OD x 1.32mm Thk

drop poppet valve inner O-ring

1шт.

8

376766R1

VALVE POPPET

VALVE drop poppet

1шт.

9

406184R1

O-RING,0.139" Thk x 0.984" ID, -214, 70 Duro

1 x 1-1/4 x 1/8 inch

1шт.

10

376765R1

SPRING

pilot valve

1шт.

11

17006R1

BALL

steel, 3/16 inch diameter

1шт.

12

392041R2

VALVE

drop valve adjusting

1шт.

13

406183R1

O-RING,0.07" Thk x 0.301" ID, -11, 80 Duro

5/16 x 7/16 x 1/16 inch

1шт.

14

399892R1

BOLT,Shldr, Hex, 3/8" - 16 x 2.25"

- Retarding arm shoulder

1шт.

15

399889R1

ARM ASSY.

ARM draft retarding

1шт.

444697

PLUG,Hex Soc, 3/8"-18

hex socket, 3/8 inch NPTF, Includes: Ref. 16

1шт.

16

399894R1

BODY

draft control valve, with spool

1шт.

17

377952R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

9/16 x 3/4 inch, class 6, Includes: Ref. 18 thru 25

3шт.

18

376771R1

RING, SNAP

RING main valve tube retaining

1шт.

19

395005R2

SPRING

main valve

1шт.

20

376759R1

RETAINER

main valve spring

1шт.

21

303322R1

SNAP RING,1.00", Int, #100

- Retaining, 1.111 inch 1.00", Int, #100

1шт.

22

376756R12

HYD CYL SLEEVE

TUBE main valve actuating

1шт.

23

376763R1

ROD

drop valve actuating

1шт.

24

378101R1

SET SCREW,Hex Soc, #8-36 x 1/4"

SCREW drop valve adjusting

1шт.

25

527617R1

ARM ASSY.

ARM main valve

1шт.

26

399885R21

CYLINDER ASSY.

CYLINDER draft control

1шт.

186288

BOLT,Hex, 3/8" - 16 x 4 1/2", Gr 5

hex, 3/8 NC x 4-1/2 inch, grade 5

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

- hex, 3/8"-16 NC x 1-1/4", G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, , Includes: Ref. 27, 28 and 29 3/8"

3шт.

27

378827R1

O-RING,0.21" Thk x 3.1" ID, -338, Cl 6, 90 Duro

3-1/8 x 3-1/2 inch, class 6

1шт.

28

399886R1

PISTON ASSY.,88.87mm Bore, 43.78mm Rod, 71.12mm W

PISTON draft control cylinder

1шт.

29

375936R1

BACK-UP RING

WASHER piston, O-ring back up

1шт.
