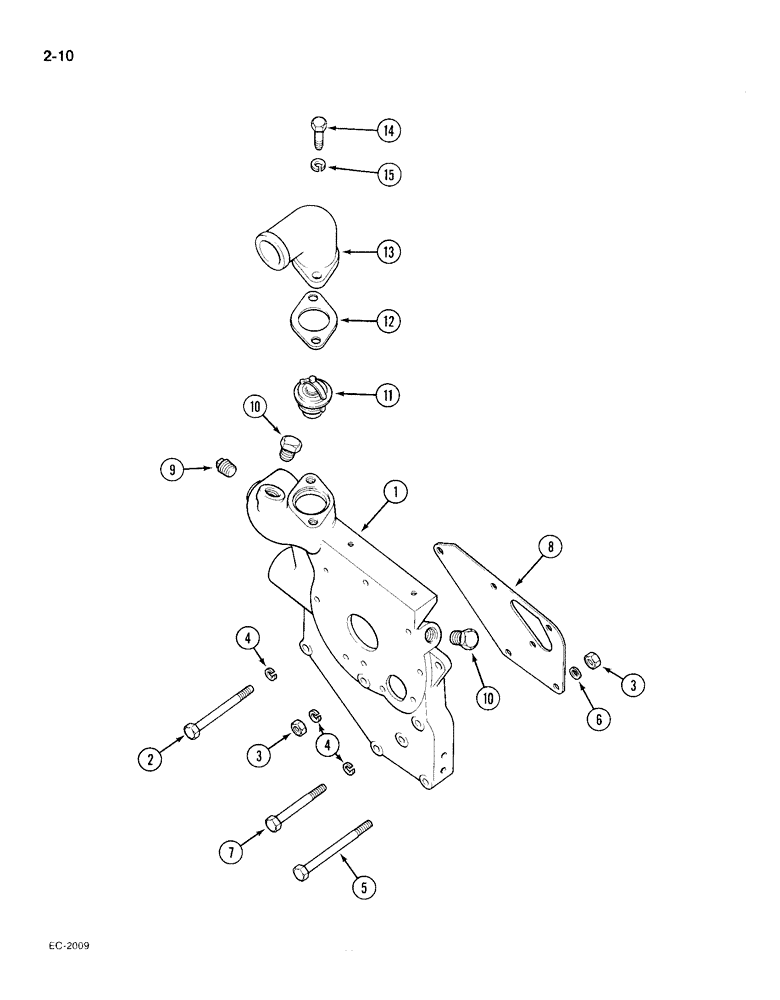

Запчасти Case IH 385 (2-010) - WATER PUMP CARRIER AND THERMOSTAT (02) - ENGINE

1

3136678R2

COVER

CARRIER - water pump

1шт.

2

186270

BOLT,Hex, 5/16" - 18 x 3 1/2", Gr 5

- hex, 5/16 NC x 3-1/2 inch, grade 5

1шт.

3

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16 inch NC, grade 5

2шт.

4

3050129R1

LOCK WASHER

WASHER - lock, 5/16 inch

5шт.

5

186272

BOLT,Hex, 5/16" - 18 x 4", Gr 5

- hex, 5/16"-18 NC x 4", grade 5

1шт.

6

3055574R1

WASHER,8.5mm ID x 19mm OD x 2.5mm Thk

- flat, 5/16 inch

1шт.

7

179830

2шт.

8

3055999R1

GASKET

- water pump carrier

1шт.

9

445686

PLUG

- automotive square head, 3/8 inch NPTF

1шт.

10

444630

PLUG,Hex Hd, 1/2"-14

- hex, pipe

2шт.

11

3228046R1

THERMOSTAT

1шт.

12

3132143R1

GASKET

- water outlet flange

1шт.

13

3136052R1

ELBOW

- water outlet

1шт.

14

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

- hex, 3/8 NC x 1-1/8 inch, grade 5

2шт.

15

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.
