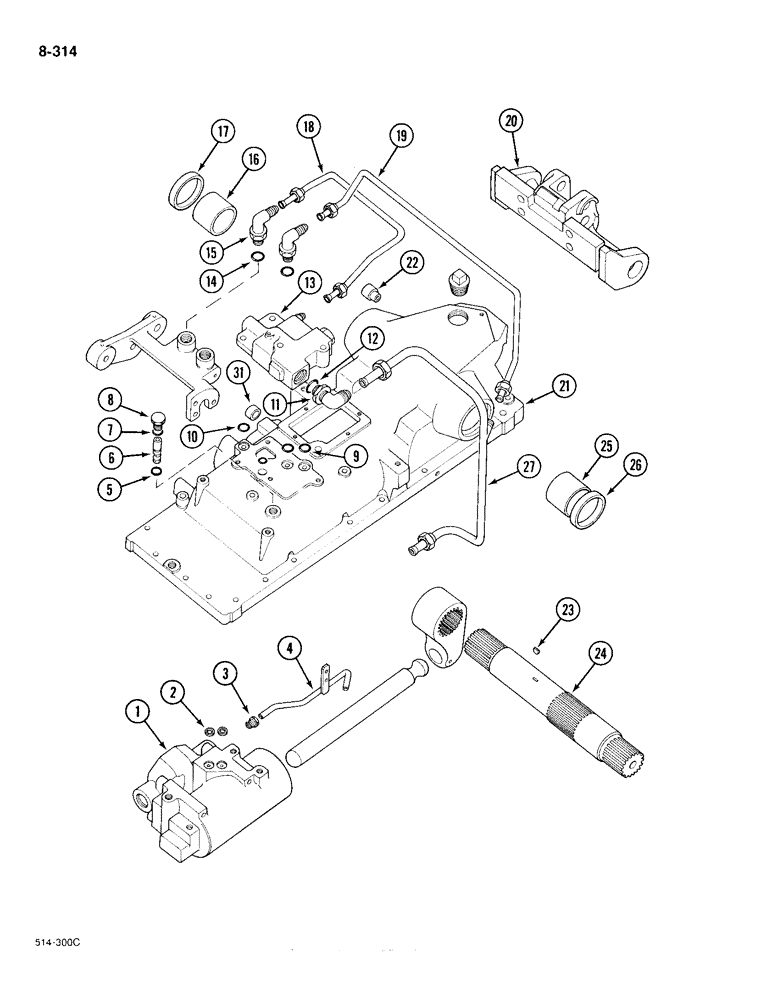

Запчасти Case IH 385 (8-314) - DRAFT CONTROL (08) - HYDRAULICS

1

399885R21

CYLINDER ASSY.

CYLINDER draft control, See Fig. 8-320

1шт.

179884

BOLT,Hex, 1/2" - 13 x 1 3/8", Gr 5, Full Thd

hex, 1/2 NC x 1-3/8 inch, grade 5

3шт.

400000R1

SEALING WASHER

cap screw sealing

3шт.

2

377952R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

9/16 x 3/4 inch, class 6

2шт.

3

222-504

TUBE NUT,9/16"-20

NUT high duty, 3/8 inch OD tube

1шт.

4

60652C1

TUBE ASSY.

TUBE lubrication

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

3шт.

5

702788R1

O-RING,0.103" Thk x 0.362" ID, -110, Cl 6, 90 Duro

3/8 x 9/16 inch, class 6

1шт.

6

400095R92

VALVE, CUSHION

VALVE safety, 2500 psi

1шт.

7

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 inch OD tube, class 6

1шт.

8

536855R1

PLUG

O-ring boss, 3/4 inch NC

1шт.

9

377952R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

9/16 x 3/4 inch, class 6

2шт.

10

21433R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

11/16 x 7/8 inch, class 6

1шт.

11

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

90 degree, adjustable, 5/8 inch OD tube

1шт.

12

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 inch outside diameter

1шт.

13

59098C93

VALVE

unloading and flow control, See Fig. 8-318

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

- hex, 3/8"-16 NC x 1-1/4", G5

2шт.

179848

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

hex, 3/8 NC x 2-1/4 inch, grade 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

14

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 inch OD tube, class 6

2шт.

15

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

90 degree adjustable, 1/2 inch OD tube

2шт.

16

399992R1

BUSHING

rockshaft, right

1шт.

16

1500447C1

BUSHING

rockshaft, right, oversize

1шт.

17

380770R91

OIL SEAL

SEAL oil rockshaft, right

1шт.

18

66759C1

TUBE ASSY.

TUBE variable flow

1шт.

18

3129774R2

PIPE

TUBE variable flow

1шт.

19

1500296C1

TUBE,0.5" OD, 475.5, 75 mm Length

variable flow control supply, measures 475.5 mm, 18.720" end to end

1шт.

19

1289959C2

PIPE

TUBE variable flow control supply, measures 500 mm, 19.685", Serial Range: end-end

1шт.

1956708C1

SLEEVE

PVC, 1/2 inch OD tube

2шт.

20

527229R91

SUPPORT

SPRING draft sensing

1шт.

21047R1

HEX SOC SCREW,5/8"-11 x 1 3/4"

cap, hex socket, 5/8 NC x 1-3/4 inch

4шт.

19842R1

DOWEL,5/16" x 1/2"

PIN dowel, 5/16 x 1/2 inch

1шт.

21

406003R32

HOUSING ASSY.

HOUSING hydraulic unit

1шт.

531143R2

STUD

top cover, long

2шт.

531144R1

STUD

top cover, short

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

22

399993R1

BUSHING

eccentric shaft

1шт.

23

376057R1

BUCKET TOOTH KEY

KEY rockshaft hub

1шт.

24

400049R2

SHAFT

ROCKSHAFT hydraulic draft control

1шт.

537126R2

PLATE

retaining lift arm

2шт.

271560

PANEL,Hex, 5/8" - 11 x 1 3/4", Gr 5

- hex, 5/8 NC x 1-3/4 inch, grade 5

2шт.

25

527749R1

BUSHING,63.52mm ID x 66.67mm OD x 50.8mm L

rockshaft left

1шт.

25

1500532C1

BUSHING

rockshaft left, oversize

1шт.

26

380212R91

OIL SEAL

SEAL oil rockshaft left

1шт.

27

3129243R2

PIPE

TUBE draft control pressure

1шт.
