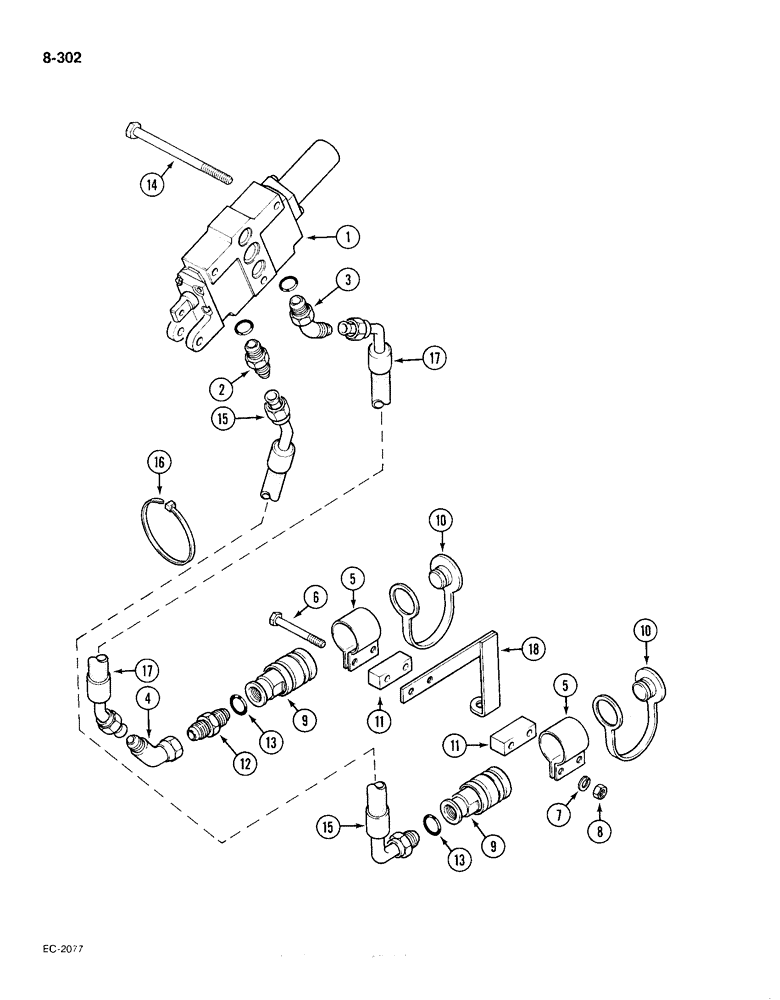

Запчасти Case IH 385 (8-302) - AUXILIARY VALVES COUPLINGS AND PIPES, WITHOUT CAB, 3RD BANK, PIN 18001 AND AFTER (08) - HYDRAULICS

1

1287379C91

VALVE

double acting, without check valve

1шт.

1

1287384C91

VALVE

double acting, with check valve

1шт.

2

86165C1

FITTING

UNION straight, 5/8 inch OD tube x M22

1шт.

3

93636C1

ELBOW

45 degree, 5/8 inch OD tube x M22

1шт.

4

9410256

ELBOW,45 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

45 degree, 5/8 inch swivel

1шт.

5

3114106R1

CLAMP

coupling

2шт.

6

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

hex, 5/16 NC x 3 inch, grade 5

2шт.

7

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

8

120376

NUT,5/16"-18, G5

2шт.

9

1282338C91

COUPLING, QUICK, FEM

COUPLING self-sealing, female

2шт.

10

373220R1

PLUG

dust, breakaway coupling

2шт.

11

3129557R1

SPACER

coupling

2шт.

12

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

UNION short, 5/8 inch OD tube

1шт.

13

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 inch outside diameter

1шт.

14

31252R1

BOLT,Hex, M8 x 1.25 x 160mm, Cl 8.8

hex, M8 x 160 mm, class 8.8

3шт.

15

1956701C1

HYDRAULIC HOSE

HOSE front outlet

1шт.

16

386170C1

CABLE TIE,.30" x 27 1/2"

STRAP tie

1шт.

17

99908C1

HOSE

rear

1шт.

18

1956705C1

PLATE

1шт.
