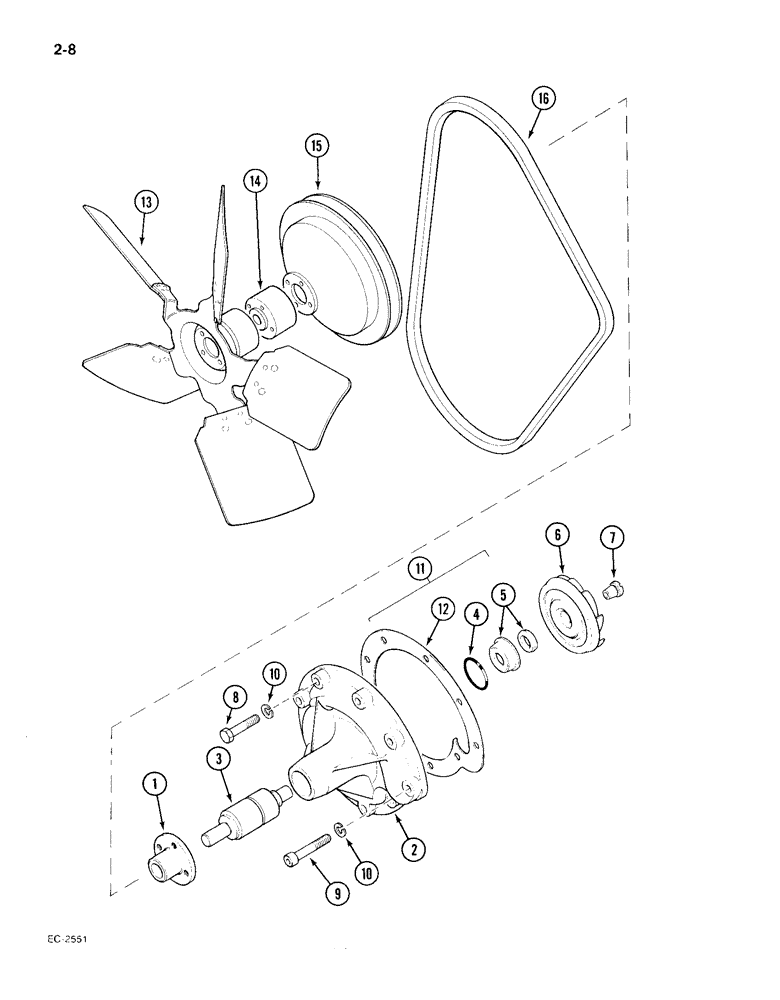

Запчасти Case IH 385 (2-008) - WATER PUMP AND FAN (02) - ENGINE

3136053R92

PUMP, WATER

PUMP - water, Includes: Ref. 1 thru 7

1шт.

3136053R92GV

WATER PUMP

Value, Water Pump Assy.

1шт.

735102C91

REMAN-WATER PUMP

Reman for New PN 3136053R92

1шт.

1928123C1

CORE-WATER PUMP

Return Number

1шт.

1

3132146R1

HUB

- pulley

1шт.

1

3132148R1

HUB

- pulley, optional to P/N 3132146R1

1шт.

2

3132677R41

BODY

- pump Includes: Ref. 3

1шт.

3

3055192R91

BEARING ASSY,38.1mm OD x 129.5mm L

- pump

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL - water pump

1шт.

5

NSS

NOT SOLD SEPARAT

RETAINER - water pump

1шт.

6

3055211R2

IMPELLER

- pump

1шт.

7

3055308R1

PLUG

- closing

1шт.

8

179822

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

7шт.

9

28301R1

HEX SOC SCREW,5/16" - 18 x 1 3/8"

- cap, hex socket, 5/16 NC x 1-3/8 inch

1шт.

10

3050129R1

LOCK WASHER

WASHER - lock, 5/16 inch

8шт.

11

3055285R93

GASKET KIT

KIT - reconditioning, water pump, Includes: seal, retainer and Ref. 12

1шт.

NSS

NOT SOLD SEPARAT

SEAL - water pump

1шт.

NSS

NOT SOLD SEPARAT

RETAINER - water pump

1шт.

12

3055177R1

GASKET

- water pump

1шт.

13

1275810C1

FAN

- engine cooling

1шт.

433065

BOLT,Hex, 1/4" - 28 x 3 1/2", Gr 5

- hex, 1/4 NF x 3-1/2 inch

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

95-11028

WASHER,1/4"

- flat, 0.281 x 0.625 x 0.051 inch

4шт.

14

403335R1

SPACER

- fan

2шт.

15

401124R2

PULLEY

- water pump

1шт.

16

131303C91

V-BELT

Fan

1шт.

This is a belt set shown in 395 tractor and is used with cab. If a single belt, which is less cab, is needed order P/N 3129140R1.

1шт.
