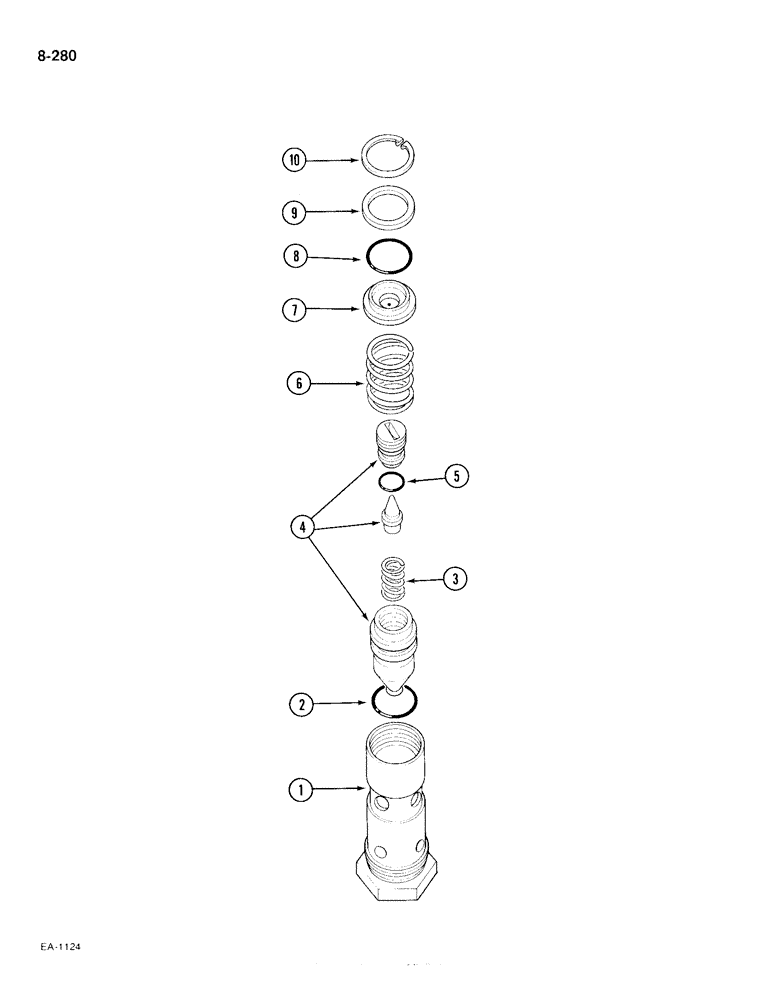

Запчасти Case IH 385 (8-280) - PILOT RELIEF VALVE (08) - HYDRAULICS

399858R92

VALVE

pilot relief, 2500 psi, Includes: Ref. 1 thru 10

1шт.

P/N 399858R92 is the same as P/N 543976R91 which was used in the older tractors, such as 574 etc.

1шт.

1

NSS

NOT SOLD SEPARAT

BODY relief valve

1шт.

2

128359

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

5/8 x 3/4 inch, class 5

1шт.

3

NSS

NOT SOLD SEPARAT

SPRING pilot relief

1шт.

4

NSS

NOT SOLD SEPARAT

VALVE pilot relief

1шт.

5

379366R1

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

5/16 ID x 1/16 inch

1шт.

6

386040R1

SPRING

poppet return

1шт.

7

386042R1

PLATE

orifice

1шт.

8

298385R1

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

11/16 x 13/16 inch, class 5

1шт.

9

386073R91

SCREEN

pilot relief

1шт.

10

NSS

NOT SOLD SEPARAT

RING, retaining

1шт.
