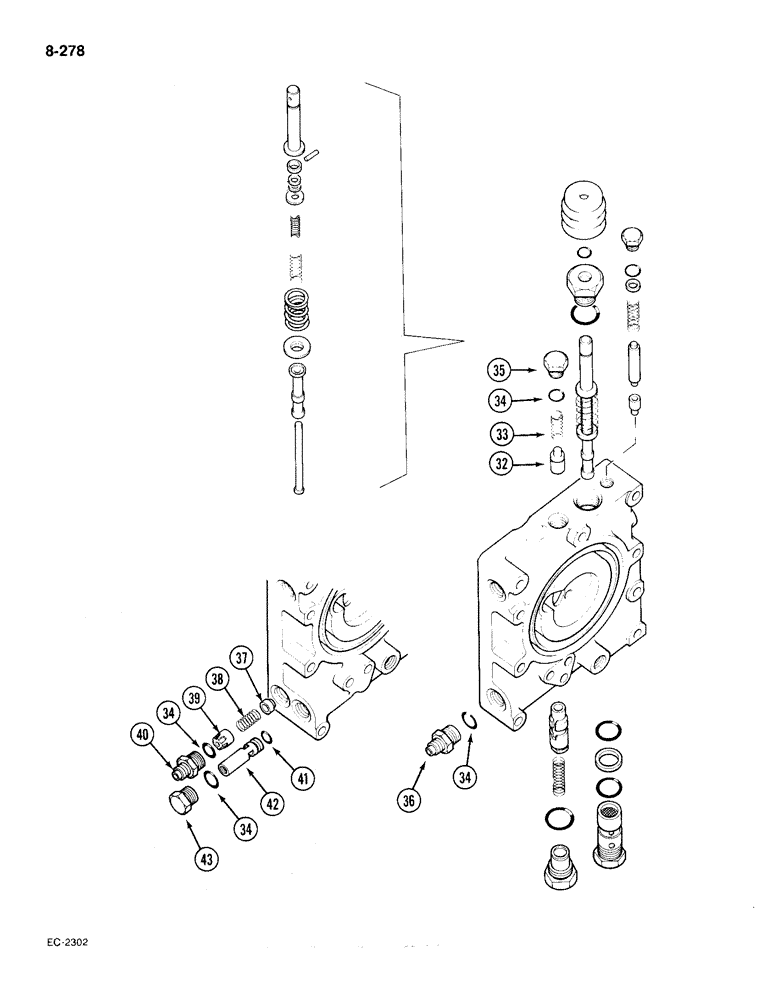

Запчасти Case IH 385 (8-278) - MULTIPLE CONTROL VALVE (CONTD) (08) - HYDRAULICS

57714C96

VALVE

multiple control, Includes: Ref. 32 through 43 and parts in Figure 8-276, Serial Range: -18001

1шт.

94281C91

VALVE

multiple control, Includes: Ref. 32 through 43 and parts in Figure 8-276, Start Serial: 18001

1шт.

32

527482R1

VALVE,By-Pass

VALVE by pass

1шт.

33

1502544C1

SPRING

valve, by pass

1шт.

34

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 inch OD tube, class 6, used with valve assembly P/N 94281C91

2шт.

34

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 inch OD tube, class 6, used with valve assembly P/N 57714C96

3шт.

35

529492R2

PLUG

cooler by pass

1шт.

36

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

UNION short, 1/2 inch OD tube, used with valve assembly P/N 94281C91

1шт.

37

382304R1

CHECK VALVE

VALVE check, used with valve assembly P/N 57714C96

1шт.

38

399869R1

SPRING

check valve, used with valve assembly P/N 57714C96

1шт.

39

399870R2

RETAINER

check valve spring, used with valve assembly P/N 57714C96

1шт.

40

587639R1

HYD CONNECTOR,9/16"-18, 37 Degree x 3/4"-18, O-Ring

UNION straight, 3/8 to 1/2 inch, used with valve assembly P/N 57714C96

1шт.

41

702788R1

O-RING,0.103" Thk x 0.362" ID, -110, Cl 6, 90 Duro

3/8 x 9/16 inch, class 6, used with valve assembly P/N 57714C96

1шт.

42

55356C1

VALVE, CUSHION

VALVE safety, 1500 psi, used with valve assembly P/N 57714C96

1шт.

43

536855R1

PLUG

O-ring boss, 3/4 inch NC, used with valve assembly P/N 57714C96

1шт.
