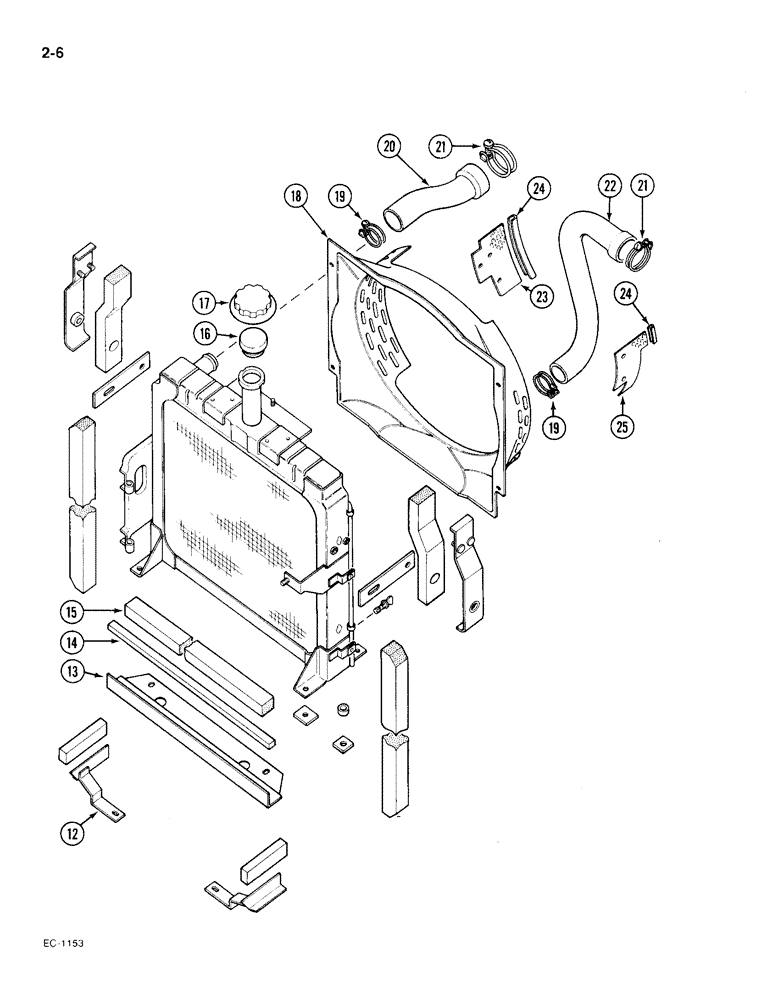

Запчасти Case IH 385 (2-006) - RADIATOR AND CONNECTIONS, TRACTORS P.I.N. 18001 AND AFTER (CONTD) (02) - ENGINE

12

1970649C1

BRACKET

SUPPORT - side seal, right

1шт.

P/N 1970649, bracket is not fitted on MFD tractors.

1шт.

1970647C1

BRACKET

SUPPORT - side seal, right, MFD tractors only

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

120392

WASHER,1/4", SAE

- plain, 0.281 x 0.625 x 0.051 inch

1шт.

13

98956C1

BAFFLE

- lower air, short, MFD tractors only

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL - baffle, foam, 425 mm, cut from bulk length, MFD tractors only

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL - lower radiator, 450 mm, cut from bulk length, MFD tractors only

1шт.

1500626C91

PLUG

CAP - radiator, complete, Includes: Ref. 16 and 17

1шт.

16

NSS

NOT SOLD SEPARAT

CAP

1шт.

17

1333038C1

GUARD

SHIELD - radiator seal, MFD tractors only

1шт.

18

527475R3

HOUSING

- fan

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

95-11028

WASHER,1/4"

- flat, 0.281 x 0.625 x 0.051 inch

4шт.

19

39149H

HOSE CLAMP

CLAMP - hose, No. 64, order: P/N 214-260 clamp

2шт.

19

705935R91

HOSE CLAMP

CLAMP - hose optional to P/N 39149H

2шт.

20

1502065C1

RADIATOR HOSE,1.50" ID, 2.00" ID x 8.98"

1.50" ID, 2.00" mm ID X 8.98", Inlet

1шт.

21

39205H

CLAMP

- hose, No. 80, type C, order: P/N 214-260 clamp

2шт.

21

706082R91

CLAMP

- hose, optional to P/N 39205H

2шт.

22

402189R1

LARGE HOSE,1.50" ID, 2.00" ID x 10.39", SAE 20R2

RADIATOR HOSE, , CLASS R, GRADE 1A OR SAE 20R4, CLASS R, GRADE 1A, SAE 20R4 CLASS D1, Outlet 1.50" ID, 2.00" ID x 10.39", SAE 20R2

1шт.

23

99768C1

GUARD

SCREEN - finger guard, right

1шт.

30325R1

WASHER,M6 x 13 x 2, HT

- M6 x 13 x 2, HT

3шт.

933833R1

LOCK WASHER,M6

WASHER - lock, 6 mm

3шт.

30281R1

NUT,M6, Cl 10

- hex, M6, class 10

3шт.

930242R1

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

- hex, M6 x 12 mm, class 8.8

3шт.

24

NSS

NOT SOLD SEPARAT

STRIP - edging

2шт.

Cut from P/N 1265283 C1.

1шт.

1265283C1

STRIP

- edging, bulk length

1шт.

25

99767C1

GUARD

SCREEN - finger guard, left

1шт.

933833R1

LOCK WASHER,M6

WASHER - lock, 6 mm

2шт.

30325R1

WASHER,M6 x 13 x 2, HT

- M6 x 13 x 2, HT

2шт.

30281R1

NUT,M6, Cl 10

- hex, M6, class 10

2шт.

930242R1

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

- hex, M6 x 12 mm, class 8.8

2шт.
