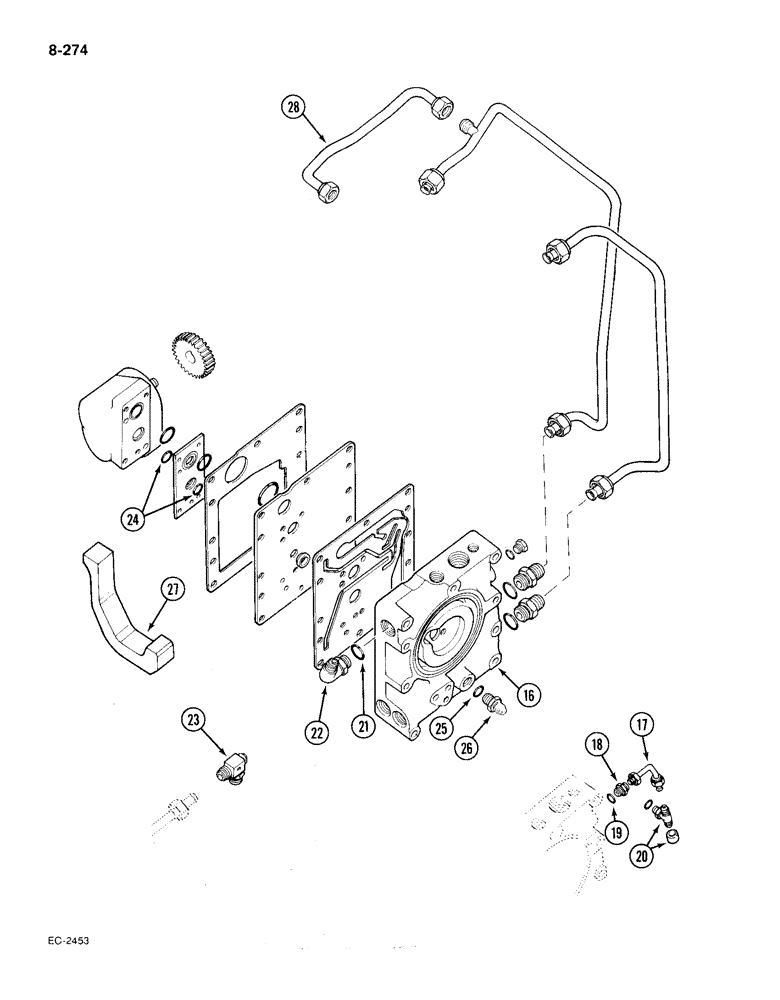

Запчасти Case IH 385 (8-274) - HYDRAULIC POWER SUPPLY AND MULTI CONTROL VALVE (CONTD) (08) - HYDRAULICS

16

57714C96

VALVE

multiple control, Serial Range: -5287

1шт.

16

94281C91

VALVE

multiple control, see Fig. 8-276, Start Serial: 18001

1шт.

280161

BOLT,Hex, 3/8" - 16 x 3", Gr 5

9шт.

186284

BOLT,Hex, 3/8" - 16 x 3 3/4", Gr 5

hex, 3/8 NC x 3-3/4 inch, grade 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

10шт.

17

539835R1

TUBE ASSY.

TUBE IPTO pressure, tractors fitted with PTO

1шт.

18

9410200

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

UNION short, 1/4 inch OD tube, tractors fitted with PTO

1шт.

19

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube, class 6, Tractors fitted with PTO

2шт.

20

9411115

TEE,7/16"-20, 37 Degree x 7/8"-14, O-Ring Br

adjustable, 1/4 inch OD tube, tractors fitted with PTO

1шт.

9403369

CAP,37 Degree, 7/16"-20

tube, 1/4 inch, tractors fitted with PTO

1шт.

21

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 inch OD tube, class 6

1шт.

22

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

90 degree adjustable, 1/2 inch OD tube

1шт.

23

1500561C1

ELBOW

1шт.

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 inch OD tube, class 6

1шт.

24

21433R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

11/16 x 7/8 inch, class 6, pump pressure port

2шт.

25

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, class 6

1шт.

26

57577C1

CHECK VALVE

VALVE check

1шт.

27

69352C1

SEAL

hydraulic pump

1шт.

1502030C1

SEAL KIT

KIT service, seals

1шт.

NSS

NOT SOLD SEPARAT

SEAL

1шт.

NSS

NOT SOLD SEPARAT

RING back up

1шт.

NSS

NOT SOLD SEPARAT

RING

2шт.

NSS

NOT SOLD SEPARAT

INSTRUCTIONS

1шт.

28

1956743C1

HYD TUBE,0.625" OD

TUBE auxiliary valve return, Start Serial: 18001

1шт.
