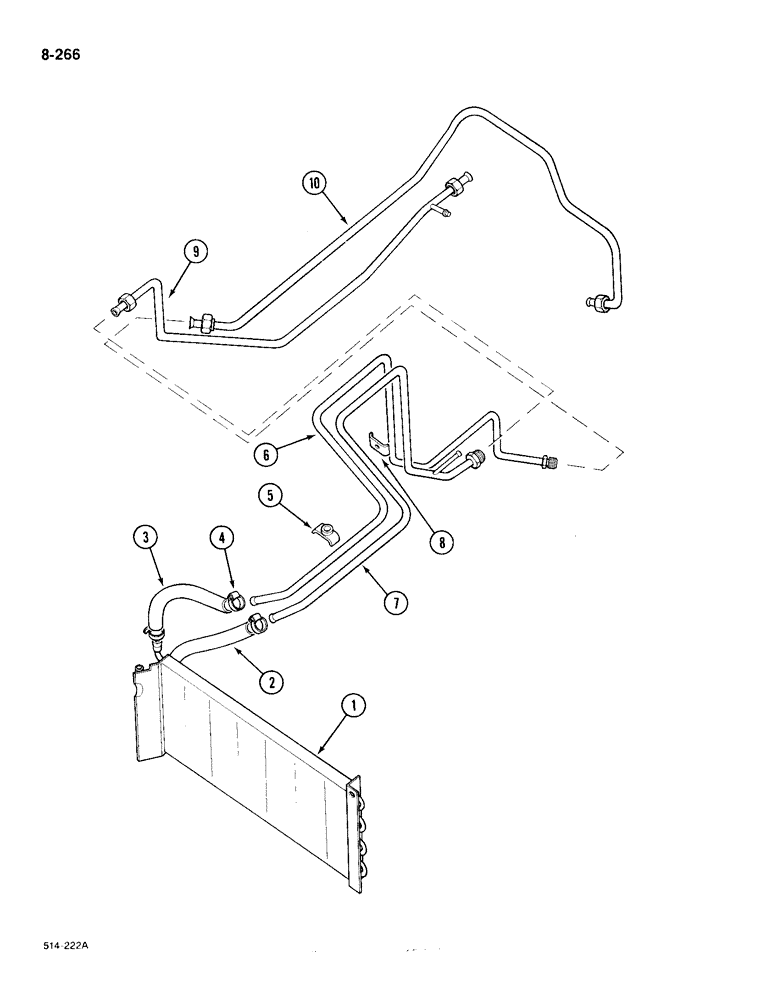

Запчасти Case IH 385 (8-266) - OIL COOLER, SYNCHROMESH DRIVE, TRACTORS PRIOR TO P.I.N. 5287 (08) - HYDRAULICS

1

1265532C1

COOLER

oil

1шт.

Q663

HEADED PIN,5/16" x 1 7/8"

PIN plain head, 5/16 x 1-7/8 inch

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

2

NSS

NOT SOLD SEPARAT

HOSE oil cooler outlet, 20 inch, 508 mm, cut from P/N 73199C1

1шт.

3

NSS

NOT SOLD SEPARAT

HOSE oil cooler inlet, 13.5 inch, 343 mm, cut from P/N 73199C1

1шт.

73199C1

HOSE

1/2 inch rubber, 50 foot, 15 meters

1шт.

4

274085R91

HOSE CLAMP,#10, 0.56/1.06 Type F Worm

CLAMP hose, No. 10, type F

4шт.

4

3074617R1

CLAMP

hose, Optional to P/N 274085R91

4шт.

5

529644R11

CLAMP

tube, oil cooler

1шт.

413-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

hex, 1/4 NC x 7/8 inch, grade 5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

6

3121331R1

PIPE

TUBE oil cooler inlet

1шт.

7

3121332R2

TUBE ASSY.

TUBE oil cooler outlet

1шт.

8

381448R1

CLAMP

oil cooler tube

1шт.

179801

BOLT,Hex, 1/4" - 20 x 1 1/2", Gr 5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

9

66096C4

PIPE

TUBE oil cooler return, rear

1шт.

10

3129259R1

PIPE

TUBE oil cooler supply, rear

1шт.
