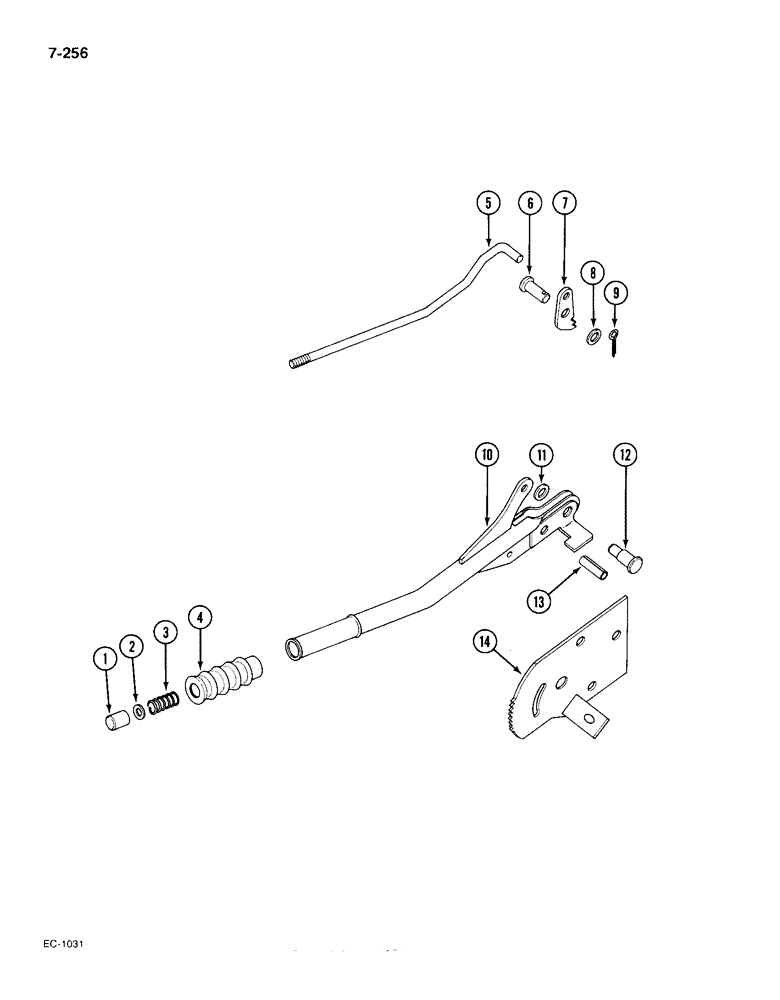

Запчасти Case IH 385 (7-256) - PARK BRAKE HAND LEVER, HEAVY DUTY, MFD TRACTORS P.I.N. 18001 AND AFTER (07) - BRAKES

94256C95

LEVER

park brake, Includes: Ref. 1 thru 14

1шт.

1

3125177R1

BUTTON

release

1шт.

2

27306R1

WASHER,3/16" x 7/16" x .036", Stainless

plain, 0.188 x 0.438 x 0.036 inch

1шт.

3

3125184R1

SPRING

button return

1шт.

4

3125185R1

GRIP

lever, PVC

1шт.

5

94262C3

ROD

pusher

1шт.

6

20687R1

CLEVIS PIN,1/4" x .609"

PIN clevis, 0.25 x 0.609 inch

1шт.

7

94264C2

PAWL

1шт.

8

3125181R1

WASHER

pawl fulcrum

2шт.

9

3125183R1

PIN, SPLIT (COTTER)

PIN pawl fulcrum

1шт.

10

94265C5

LEVER

hand

1шт.

11

1330750C2

SPACER

1шт.

12

94263C3

PIN

pivot

1шт.

13

19328R1

LOCK PIN,3/8" x 3/4", Slotted

1шт.

14

99423C6

BRACKET

RATCHET plate

1шт.
