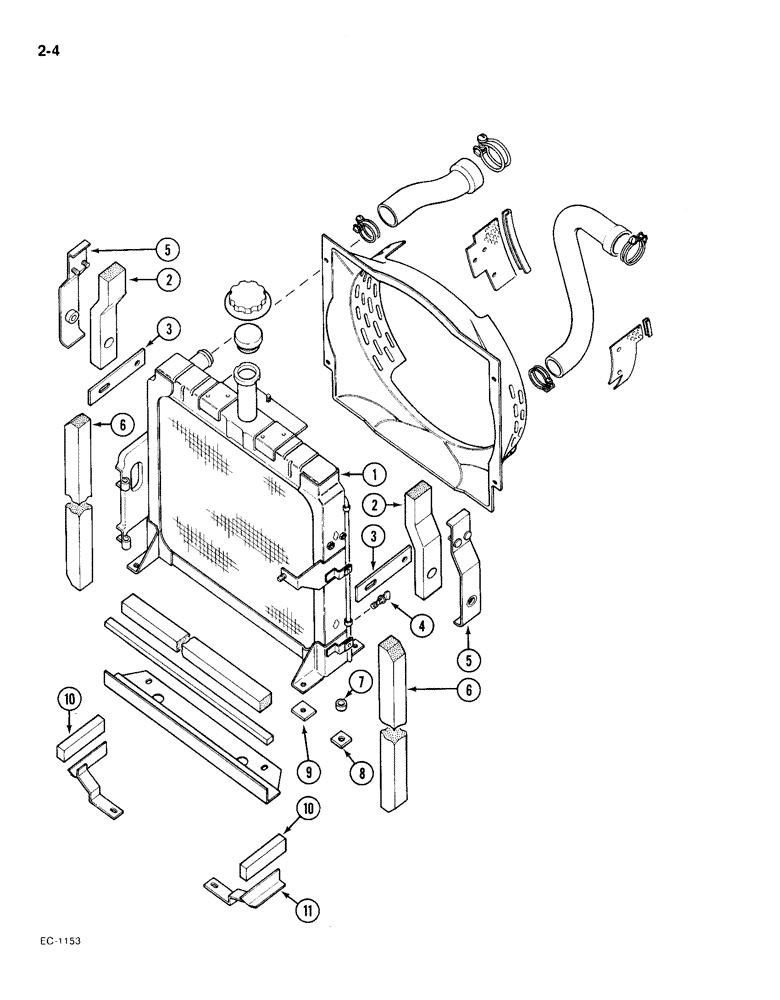

Запчасти Case IH 385 (2-004) - RADIATOR AND CONNECTIONS, TRACTORS P.I.N. 18001 AND AFTER (02) - ENGINE

1

84524C93

RADIATOR

1шт.

Ref. 1 P/N 1536373C1 New Radiator W/New Bolt Pattern.

1шт.

1970646C1

RADIATOR

MFD tractors only

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch, grade 5, ZND

4шт.

Radiator rear mounting to bolster.

1шт.

Radiator front mounting to bolster and grille and hood support assembly.

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

Radiator rear mounting to bolster.

1шт.

Radiator front mounting to bolster and grille and hood support assembly.

1шт.

95-11041

WASHER,3/8"

flat (0.406 x 0.812 x 0.051") 3/8"

4шт.

142745

NUT, WING

NUT - wing, 5/16 inch NC

1шт.

2

98934C1

SEAL

SEAL - foam, radiator side

2шт.

2

1970626C1

SEAL

- foam, radiator side

2шт.

MFD tractors p.i.n.19651 and after.

1шт.

3

98905C1

BRACKET

STRAP - radiator mounting, Serial Range: -19161

2шт.

120394

WASHER,3/8", SAE

WASHER - flat, 13/32 x 13/16 x 3/64 inch

2шт.

9411655

LOCK NUT,3/8"-16, GB

NUT - hex lock, 3/8 inch NC, grade 5

2шт.

3

99996C2

STRAP

- radiator mounting, Start Serial: 19161

2шт.

30175R1

WASHER,M8 x 17.5 x 2, HT

2шт.

30382R1

NUT,M8 x 1.25, Cl 10

Hex M8 x 1.25, Cl 10

2шт.

4

3113083R1

PLUG, DRAIN

VALVE - drain, 1/4 inch

1шт.

5

98907C1

GUARD

SHIELD - radiator seal

2шт.

5

1333038C1

GUARD

SHIELD - radiator seal

2шт.

MFD tractors p.i.n.19651 and after.

1шт.

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

120392

WASHER,1/4", SAE

- plain, 0.281 x 0.625 x 0.051 inch

2шт.

6

NSS

NOT SOLD SEPARAT

SEAL - foam, radiator side, 325 mm, cut from bulk length

2шт.

7

99427C1

SPACER

BUSHING

4шт.

8

84525C1

SPACER

2шт.

9

47240D

PAD

- radiator

4шт.

10

NSS

NOT SOLD SEPARAT

GASKET - side panel, 4.7 inch, not fitted on MFD tractors.

2шт.

Cut from P/N 73228C1.

1шт.

NSS

NOT SOLD SEPARAT

GASKET - side panel, 7.7 inch, MFD tractors only

2шт.

Cut from P/N 73228C1.

1шт.

73228C1

GASKET

SEAL foam, 4 foot roll

2шт.

11

1970650C1

BRACKET

SUPPORT - side seal, left, not fitted on MFD tractors

1шт.

1970648C1

BRACKET

SUPPORT - side seal, left, MFD tractors only

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

120392

WASHER,1/4", SAE

- plain, 0.281 x 0.625 x 0.051 inch

1шт.
