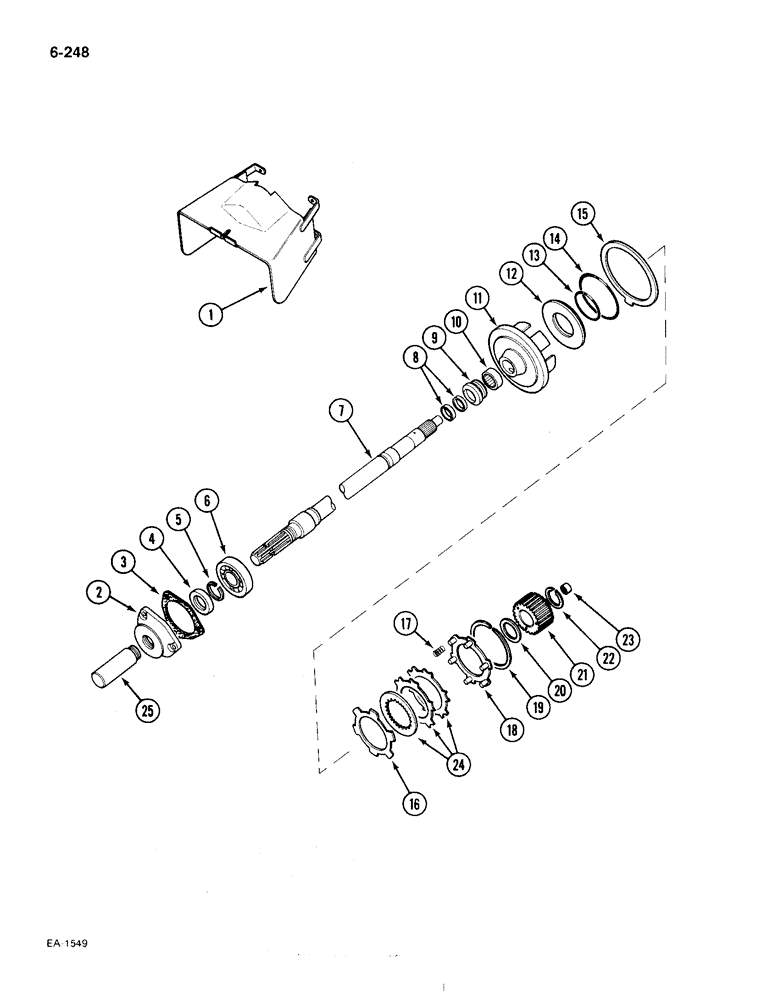

Запчасти Case IH 385 (6-248) - INDEPENDENT POWER TAKE OFF - SINGLE SPEED, LOWER OUTPUT SHAFT WITH PROVISION FOR SIDE PTO (06) - POWER TRAIN

1

401734R1

GUARD ASSY.

SHIELD IPTO safety

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

2

1500086C1

FLANGED BEARING

bearing, IPTO shaft

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

hex, 3/8 NC x 7/8 inch, grade 5

3шт.

3

399843R3

GASKET

rear frame IPTO flange

1шт.

4

385766R91

OIL SEAL,38.1mm ID x 60.45mm OD x 8.13mm Thk

SEAL oil, output shaft

1шт.

5

607186R1

SNAP RING,#156, Ext

1шт.

6

ST236

BEARING, BALL,40mm ID x 90mm OD x 23mm W

BEARING ball

1шт.

7

66456C1

SHAFT

output

1шт.

8

166972R1

RING

shaft sealing

2шт.

9

401705R2

BUSHING,39.69mm ID x 50.86mm OD x 23.11mm L

lower shaft

1шт.

10

565232R91

BEARING, NEEDLE,Needle, 38.09mm ID x 47.64mm OD x 15.88mm W

BEARING needle

1шт.

11

66068C1

GEAR

CUP IPTO clutch, With side drive PTO

1шт.

11

3125149R1

CUP

IPTO clutch, With outside drive PTO

1шт.

617938R1

PIN,5/16" x 1 3/8", Coiled

1шт.

12

401722R1

PISTON

clutch

1шт.

13

401723R1

O-RING,69.32mm ID x 76.22mm OD x 1.75mm Thk

piston, inner piston seal, inner

1шт.

14

401724R1

SEAL,0.551" ID x 0.07" Width

O-RING piston, outer piston seal, outer

1шт.

15

404490R1

RING,140.25mm ID x 4.5mm Thk

IPTO brake

1шт.

16

66185C1

CLUTCH PLATE,98.55mm ID x 157.48mm OD x 3.05mm Thk

piston return

1шт.

17

66182C1

SPRING

piston return

6шт.

18

66186C92

PLATE ASSY.

PLATE clutch backing

1шт.

19

401720R1

CIRCLIP

RING retaining, backing plate

1шт.

20

401713R1

THRUST WASHER,52.48mm ID x 70.1mm OD x 1.82mm Thk

WASHER thrust

1шт.

21

66183C2

HUB ASSY.,45T

HUB clutch

1шт.

22

401756R1

SNAP RING,#206, 1.936", Ext

RING retaining, external, 1.936 inch

1шт.

23

533325R91

BEARING, NEEDLE

BEARING needle, driven shaft

1шт.

24

66193C91

PACKAGE

KIT service, clutch plate

1шт.

NSS

NOT SOLD SEPARAT

PLATE driven

5шт.

NSS

NOT SOLD SEPARAT

PLATE separator

8шт.

401723R1

O-RING,69.32mm ID x 76.22mm OD x 1.75mm Thk

piston, inner clutch piston, inner

1шт.

401724R1

SEAL,0.551" ID x 0.07" Width

O-RING piston, outer clutch piston, outer

1шт.

66182C1

SPRING

piston return

6шт.

25

3054841R2

TUBE

CAP protection, IPTO safety

1шт.

1287945C1

DECAL

warning, PTO overspeed

1шт.
