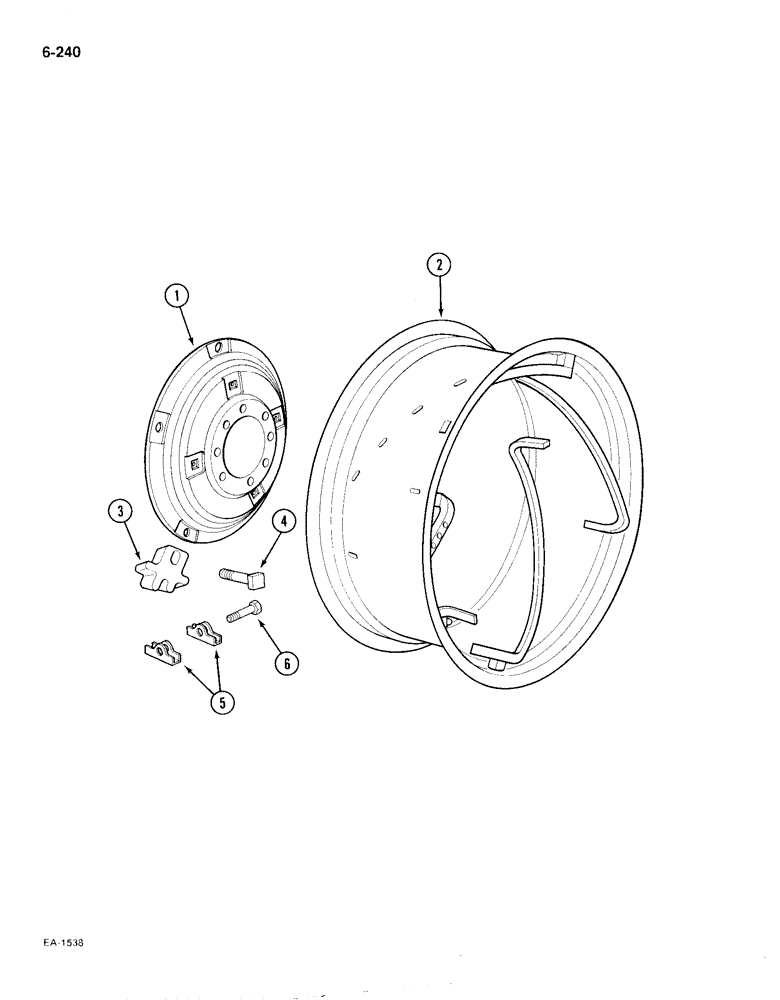

Запчасти Case IH 385 (6-240) - POWER ADJUSTED REAR WHEELS, UTILITY TRACTOR (06) - POWER TRAIN

NSS

NOT SOLD SEPARAT

WHEEL power adjusted rear, Includes: Ref. 1 thru 6

2шт.

1

1282567C1

DISC, WHEEL

DISC formed, 28 inch diameter

1шт.

2

1282568C1

RIM

power adjusted wheel, W12-28

1шт.

3

399004R1

SHIN

CLAMP double ramp

5шт.

4

399005R1

SQUARE BOLT,3/4" - 10 x 2.25"

BOLT square head, 3/4 NC x 2-1/4 inch

5шт.

399006R1

WHEEL NUT

hex, 3/4 inch NC

5шт.

399007R1

WASHER

flat, 3/4 inch

5шт.

5

365327R2

STOP

BODY stop

1шт.

6

365326R1

SCREW

stop

1шт.
