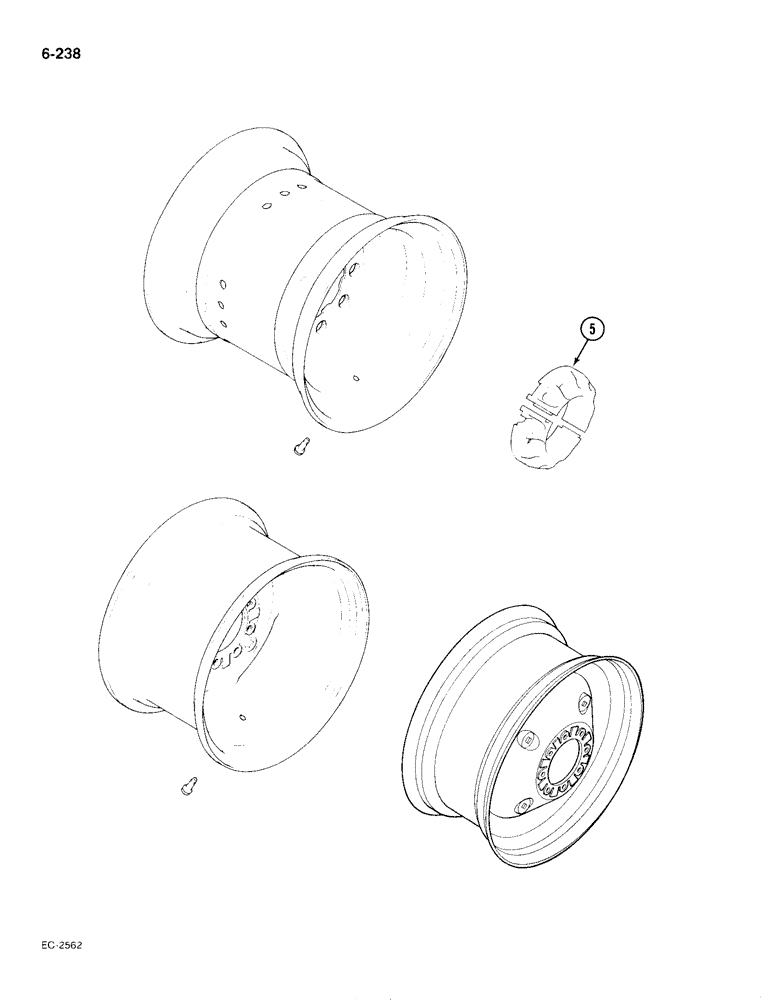

Запчасти Case IH 385 (6-238) - REAR WHEELS (CONTD) (06) - POWER TRAIN

5

365321R2

WEIGHT

rear wheel, 75 lbs, 28 or 30 inch wheels, 1st or 2nd position

4шт.

425-1410

JAM NUT,Jam, 5/8"-11, G5

hex jam, 5/8 inch NC

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

hex, 5/8 inch NC, grade 5

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , 1st position 5/8"

16шт.

365333R1

BOLT,Sht Sq Nk, 5/8" - 11 x 3"

square neck carriage, 5/8 NC x 3 inch, 1st position

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , 2nd position 5/8"

8шт.

365332R2

SQUARE BOLT

BOLT square head, rear wheel weight, 2nd position

8шт.

5

369509R1

WEIGHT

rear wheels, 75 lbs, 1st or 2nd position

4шт.

366646R1

BOLT,Sht Sq Nk, 5/8" - 11 x 3 3/4", Gr 2

carriage, 5/8 NC x 3-3/4 inch, 1st position

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

hex, 5/8 inch NC, grade 5, 1st position

16шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , 1st position 5/8"

8шт.

131140

LOCK WASHER,5/8"

WASHER, LOCK, , RH rear, 1st position 5/8"

8шт.

369508R1

BOLT,5/8" - 11 x 5 3/4"

square head, 5/8 NC x 5-3/4 inch, 2nd position, 24 inch wheels

8шт.

425-1410

JAM NUT,Jam, 5/8"-11, G5

hex jam, 5/8 inch NC, 2nd position, 24 inch wheels

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

hex, 5/8 inch NC, grade 5, 2nd position, 24 inch wheels

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , 2nd position, 24 inch wheels 5/8"

8шт.

366647R1

BOLT,Sq Hd, 5/8" - 11 x 5 1/2"

square head, 5/8 NC x 5-1/2 inch, 2nd position, 26 inch wheels

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , 2nd position, 26 inch wheels 5/8"

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , 2nd position, 26 inch wheels 5/8"

8шт.
