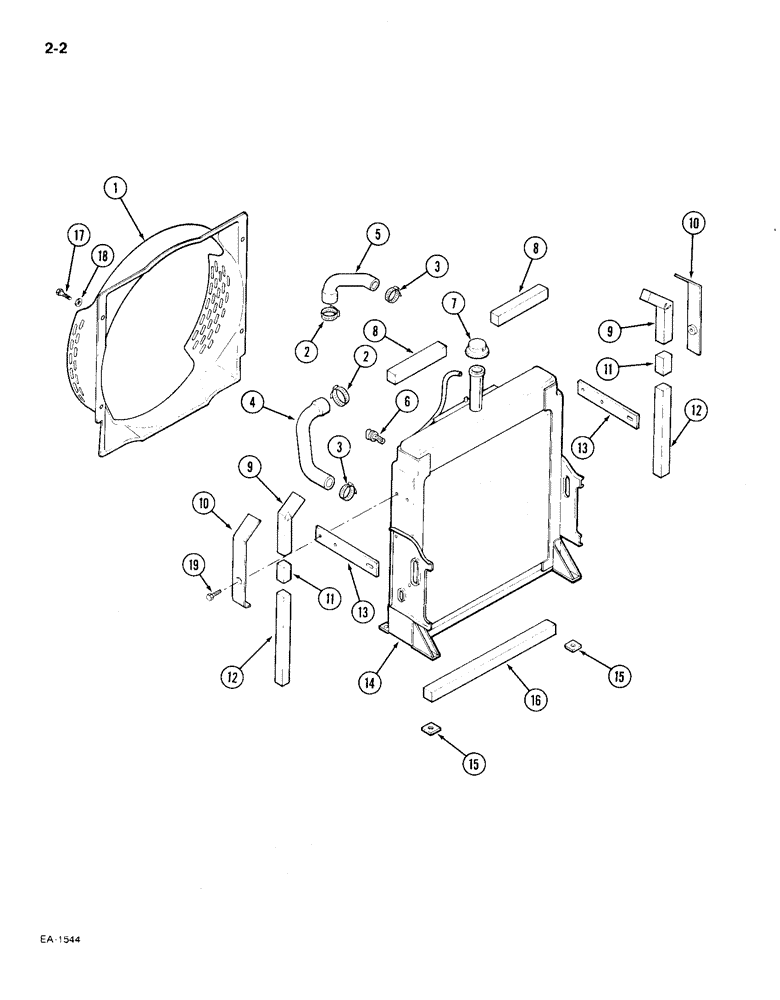

Запчасти Case IH 385 (2-002) - RADIATOR AND CONNECTIONS, TRACTORS PRIOR TO P.I.N. 5287 (02) - ENGINE

1

527475R2

HOUSING

SHROUD - fan

1шт.

2

706082R91

CLAMP

- hose

2шт.

2

39205H

CLAMP

- hose, No. 80, type C, optional to P/N 706082R91.

2шт.

3

39149H

HOSE CLAMP

CLAMP - hose, No. 64

2шт.

4

402189R1

LARGE HOSE,1.50" ID, 2.00" ID x 10.39", SAE 20R2

RADIATOR HOSE, , CLASS R, GRADE 1A OR SAE 20R4, CLASS R, GRADE 1A, SAE 20R4 CLASS D1, Outlet 1.50" ID, 2.00" ID x 10.39", SAE 20R2

1шт.

5

1502065C1

RADIATOR HOSE,1.50" ID, 2.00" ID x 8.98"

1.50" ID, 2.00" mm ID X 8.98", Inlet

1шт.

6

3113083R1

PLUG, DRAIN

VALVE - drain, 1/4 inch

1шт.

7

1500626C91

PLUG

CAP - radiator, complete

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL - radiator top, 8 inch (203 mm)

2шт.

Cut from P/N 73217C1.

1шт.

73217C1

FILLING STRIP

SEAL - foam, bulk length, 4 foot roll

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL - shield, long, 5.6 inch (142 mm)

2шт.

Cut from P/N 73217C1.

1шт.

10

98885C1

GUARD

SHIELD - radiator seal

2шт.

11

NSS

NOT SOLD SEPARAT

SEAL - shield, short, 2.1 inch (53 mm)

2шт.

Cut from P/N 73217C1.

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL - radiator side, 14 inch (356 mm)

2шт.

Cut from P/N 73217C1.

1шт.

13

94313C1

STRAP

- radiator mounting

2шт.

120394

WASHER,3/8", SAE

WASHER - flat, 13/32 x 13/16 x 3/64 inch

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

14

84524C93

RADIATOR

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch, grade 5, ZND

4шт.

Side panel support and radiator rear mounting to bolster.

1шт.

Radiator front mounting to bolster.

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

Side panel support and radiator rear mounting to bolster.

1шт.

Radiator front mounting to bolster.

1шт.

7500032

BUSHING

NUT - wing, 5/16 inch NC

1шт.

Side panel support and radiator rear mounting to bolster.

1шт.

Radiator front mounting to bolster.

1шт.

84525C1

SPACER

2шт.

Side panel support and radiator rear mounting to bolster.

1шт.

95-11041

WASHER,3/8"

flat (0.406 x 0.812 x 0.051") 3/8"

4шт.

Side panel support and radiator rear mounting to bolster.

1шт.

Radiator front mounting to bolster.

1шт.

99427C1

SPACER

BUSHING

4шт.

15

47240D

PAD

- radiator

2шт.

16

537162R1

FILLING STRIP

SEAL - lower radiator

1шт.

17

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

18

95-11028

WASHER,1/4"

- flat, 0.281 x 0.625 x 0.051 inch

4шт.

19

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.
