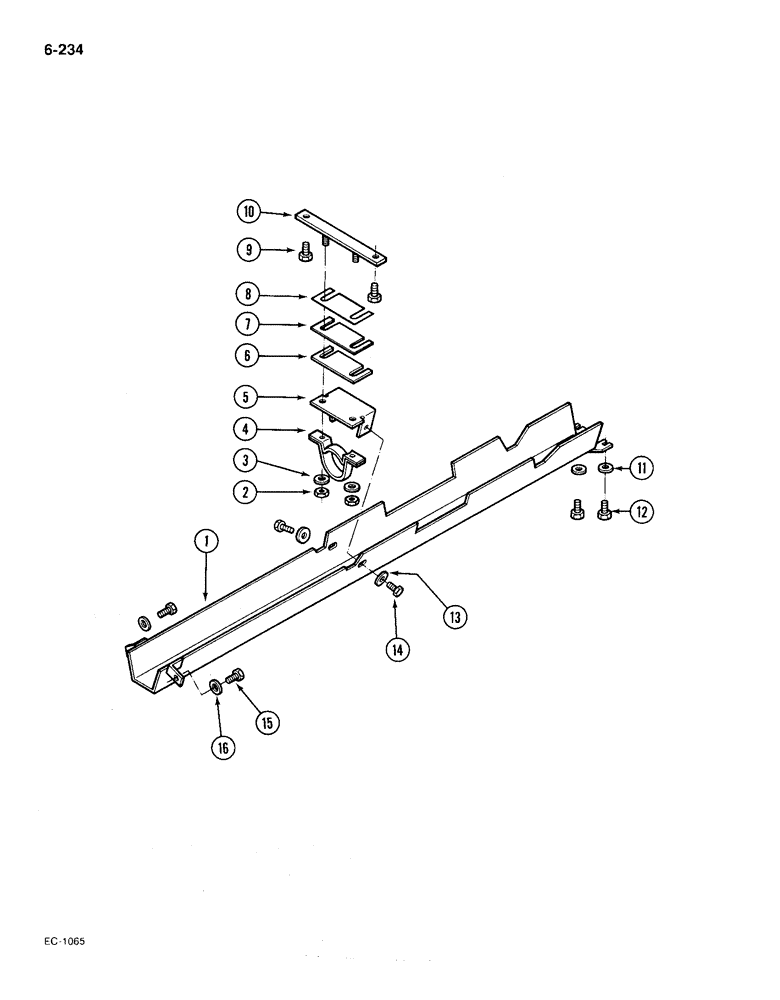

Запчасти Case IH 385 (6-234) - DRIVE SHAFT SHIELD, 4 WHEEL DRIVE, MFD TRACTORS P.I.N. 18001 AND AFTER (06) - POWER TRAIN

1

82308C1

GUARD ASSY.

SHIELD drive shaft

1шт.

2

30168R1

NUT,M10, Cl 10

hex, 10 mm, class 10

2шт.

3

933348R1

WASHER,M10 x 20 x 2

flat, 10.8 x 21 x 2 mm

2шт.

4

82234C1

CLAMP

HOUSING bearing

1шт.

5

82211C1

SUPPORT ASSY.

SUPPORT drive shaft shield

1шт.

6

82228C1

SHIM

2.0 mm

1шт.

7

82227C1

SHIM

1.0 mm

1шт.

8

82226C1

SHIM

0.5 mm

1шт.

9

180123

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5, Full Thd

hex, 3/8 NC x 1-1/8 inch, grade 5

2шт.

10

89485C1

BAR ASSY.

BAR

1шт.

11

711055R1

WASHER

13 x 22 x 2 mm

4шт.

12

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

hex, M10 x 20 mm, class 8.8, ZND

2шт.

13

3058250R1

WASHER

8.5 x 20 x 1.5 mm, flat

2шт.

14

934870R1

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

- hex, 8 mm x 20 mm, class 8.8

2шт.

15

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

hex, M10 x 20 mm, class 8.8, ZND

2шт.

16

933348R1

WASHER,M10 x 20 x 2

flat, 10.8 x 21 x 2 mm

2шт.
