(6-232) - TRANSFER GEARBOX, 4 WHEEL DRIVE, MFD AXLE APL-325, TRACTORS P.I.N. 18001 AND AFTER (CONTD)

Запчасти Case IH 385 (6-232) - TRANSFER GEARBOX, 4 WHEEL DRIVE, MFD AXLE APL-325, TRACTORS P.I.N. 18001 AND AFTER (CONTD) (06) - POWER TRAIN

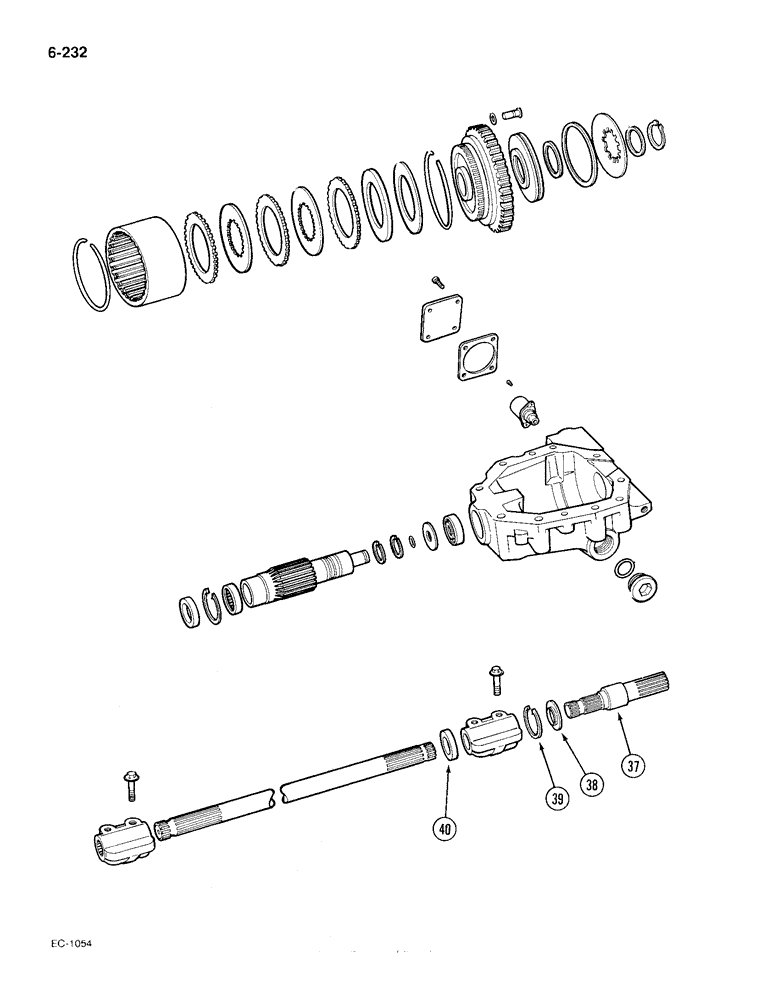

Схема запчастей Case IH 385 - (6-232) - TRANSFER GEARBOX, 4 WHEEL DRIVE, MFD AXLE APL-325, TRACTORS P.I.N. 18001 AND AFTER (CONTD) (06) - POWER TRAIN
40
37
38
39
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

82360C91

DRIVE

BOX transfer gear, Includes: Ref. 37 thru 39 and Ref. 4 thru 36 in Figure 6-230

1шт.

37

81158C1

SHAFT

1шт.

38

81087C1

RING, SNAP

RETAINER

1шт.

39

934443R1

SNAP RING,M58, Int

RING retaining, internal, 61.74 mm

1шт.

40

82235C91

BEARING, BALL,30 mm ID x 62 mm OD x 16 mm

BEARING ball

1шт.

82632C2

GASKET

transfer gear box

1шт.

141284

PIN,25.4mm OD x 31.75mm L

Pin 1/2" x 1 1/8"

2шт.

24868R1

BOLT,Hex, 1/2" - 13 x 4", Gr 8

hex, 1/2 NC x 4 inch, grade 8

5шт.

25285R1

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 8

hex, 1/2 NC x 3-1/4 inch, grade 8

4шт.

25507R1

BOLT,Hex, 1/2" - 13 x 3 3/4", Gr 8

hex, 1/2 NC x 3-3/4 inch, grade 8

2шт.

26273R1

WASHER

flat, 0.531 x 1.062 x 0.134 inch

3шт.
