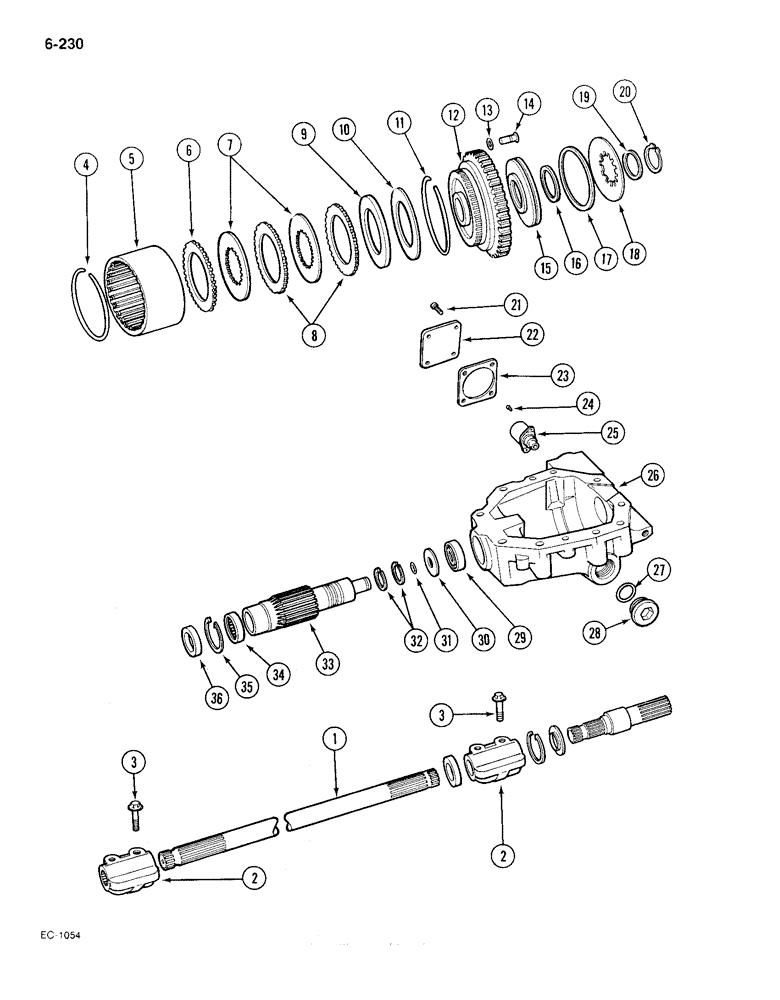

Запчасти Case IH 385 (6-230) - TRANSFER GEARBOX, 4 WHEEL DRIVE, MFD AXLE APL-325, TRACTORS P.I.N. 18001 AND AFTER (06) - POWER TRAIN

82360C91

DRIVE

BOX transfer gear, Includes: Ref. 4 thru 36 and Ref. 37 thru 39 in Figure 6-232

1шт.

1

1335029C1

DRIVE SHAFT

SHAFT drive

1шт.

2

90031C1

COUPLING, BREAK AWAY

COUPLING

2шт.

3

90088C1

BOLT,M12 x 1.5 x 47mm, Cl 12.9

hex, M12 x 45 mm

4шт.

4

81190C1

RING, SNAP

RING snap

1шт.

5

81184C1

RING CARRIER

CARRIER

1шт.

6

81189C1

WASHER

WASHER

1шт.

7

81187C1

DRIVEN PLATE

PLATE inner

8шт.

8

81188C1

DRIVE PLATE

PLATE outer

9шт.

9

81183C1

WASHER

WASHER

1шт.

10

81186C1

WASHER

shim, 4.0 mm

1шт.

11

81185C1

CIRCLIP

RING snap

1шт.

12

81174C1

GEAR

1шт.

13

81179C1

O-RING,1.5mm Thk x 7mm ID, 70 Duro

7 x 1.5 mm

1шт.

14

81178C1

LARGE PIN,17mm OD x 34.7mm L

BOLT

1шт.

15

81175C1

PISTON

1шт.

17

81177C1

RING,Square, 2.5mm Thk x 107mm ID

RING, 107 x 2.5 mm

1шт.

18

81180C1

SPRING

SPRING

1шт.

19

81181C1

RING

1шт.

20

933283C1

RING

retaining, external, 40.72 mm

1шт.

P/N 933283C1 subs to 800-1145

1шт.

21

930244R1

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

hex, M8 x 25 mm, class 8.8

1шт.

22

81173C1

COVER

valve

1шт.

23

81172C1

PACKING RING

GASKET valve cover

1шт.

24

930974R1

HEX SOC SCREW,M5 x 10mm, Cl 8.8

SCREW cap, hex socket, M5 x 10 mm, class 8.8

2шт.

25

81171C1

VALVE

1шт.

26

81170C1

CASE

HOUSING transfer gear, Includes: P/N 3057501R1

1шт.

3057501R1

BALL

6 mm diameter

4шт.

27

81168C1

O-RING,2.65mm Thk x 32.5mm ID, Cl 5, 75 Duro

33 x 2 mm

1шт.

28

905476R1

PLUG

hex socket, M36, grade 5.8

1шт.

29

81088C1

BEARING, ROLLER

BEARING roller

1шт.

30

81089C1

THRUST WASHER

WASHER

1шт.

31

81182C1

RING

19 x 1.5 mm

1шт.

32

81191C1

SEALING RING

RING, 35 x 2 mm

2шт.

33

81192C1

SHAFT

drive

1шт.

34

81093C1

BEARING, ROLLER

BEARING roller

1шт.

35

933086R1

SNAP RING,M30, Ext

- retaining, external, 27.48 mm

1шт.

36

81086C1

OIL SEAL

SEAL oil

1шт.
