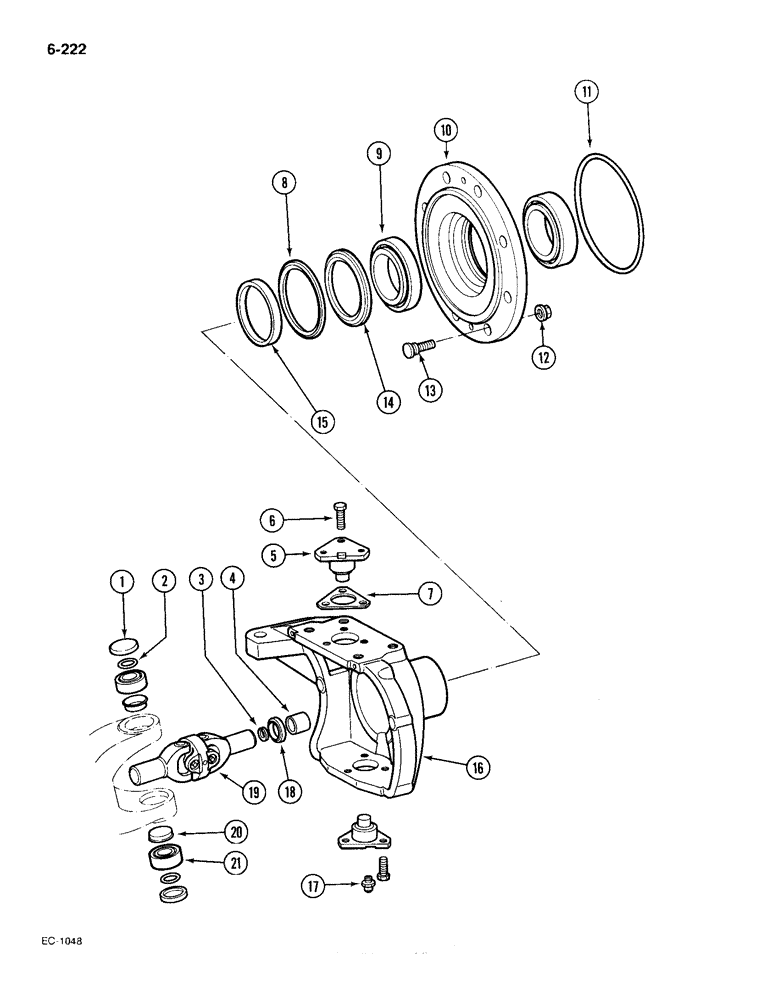

Запчасти Case IH 385 (6-222) - STEERING KNUCKLE, 4 WHEEL DRIVE, MFD AXLES APL-330 AND APL-325 TRACTORS P.I.N. 18001 AND AFTER (06) - POWER TRAIN

NSS

NOT SOLD SEPARAT

HOUSING steering knuckle, Includes: Ref. 1 through 21

1шт.

1

81418C1

CAP

sealing

4шт.

2

81419C1

O-RING,2.5mm Thk x 34mm ID, 70 Duro

34 x 3 mm

2шт.

3

81409C1

RING, SNAP

RING retaining

2шт.

4

81429C1

BUSHING

SLEEVE

2шт.

5

81428C1

KNUCKLE

PIN king

4шт.

6

931590R1

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

hex, M12 x 30 mm, class 10.9

12шт.

7

81426C1

SHIM

0.4 mm

2шт.

7

81420C1

SHIM

0.6 mm

2шт.

7

81427C1

SHIM

0.8 mm

2шт.

7

81421C1

SHIM

1.0 mm

2шт.

7

81422C1

SHIM

1.4 mm

2шт.

7

81423C1

SHIM

1.6 mm

2шт.

7

81424C1

SHIM

1.8 mm

2шт.

7

81425C1

SHIM

2.0 mm

2шт.

8

81311C1

SCRAPER RING

RING scraper

2шт.

9

81312C1

ROLLER BEARING,95 mm ID x 135 mm OD x 20 mm

BEARING roller

4шт.

10

81308C1

HUB

wheel

2шт.

11

81313C1

O-RING,200mm ID

200 x 3 mm

2шт.

12

3230877R1

WHEEL NUT,Wheel, Flg, M18 x 1.5

hex, M18, wheel mounting

16шт.

13

81317C1

STUD

wheel mounting

16шт.

14

81310C1

SEALING RING

shaft

2шт.

15

81309C1

SLEEVE

2шт.

16

81413C1

HOUSING

steering knuckle, left

1шт.

16

81414C1

STEERING KNUCKLE

HOUSING steering knuckle, right

1шт.

17

A52371

FITTING

grease

4шт.

18

81411C1

SEAL ASSY.

SEAL shaft

2шт.

19

81430C1

JOINT ASSY.

JOINT double

2шт.

20

81415C1

CAP

end

4шт.

21

81416C1

BEARING, ROLLER

BEARING outer race

4шт.

21

81417C1

BEARING, ROLLER

BEARING inner race

4шт.
