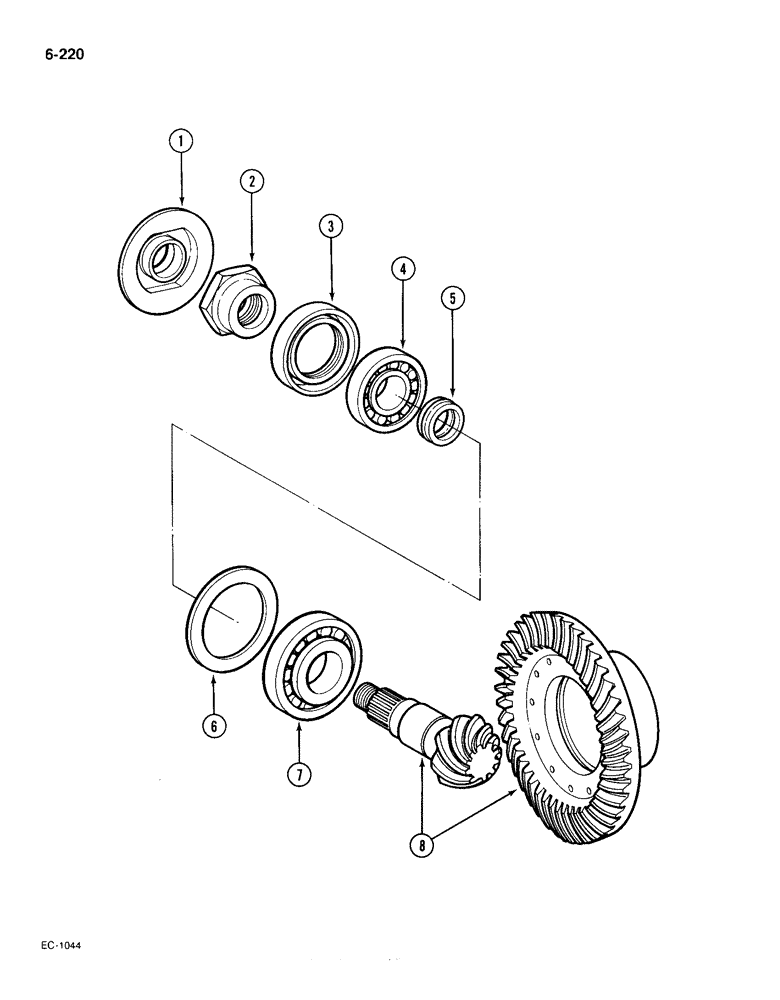

Запчасти Case IH 385 (6-220) - DRIVE ASSEMBLY, 4 WHEEL DRIVE, MFD TRACTORS P.I.N. 18001 AND AFTER (06) - POWER TRAIN

NSS

NOT SOLD SEPARAT

DRIVE ASSEMBLY APL-330, With dog clutch, Includes: Ref. 1 through 8

1шт.

NSS

NOT SOLD SEPARAT

DRIVE ASSEMBLY APL-325, With self-locking differential-disc clutch, Includes: Ref. 1 through 8

1шт.

1

81398C1

PLATE, LOCKING

PLATE lock

1шт.

2

81397C1

NUT

1шт.

3

81396C1

SEAL

SEAL shaft

1шт.

4

3404470R1

BEARING

outer race

1шт.

4

81395C1

BEARING, ROLLER

BEARING inner race

1шт.

5

81380C1

RING

11.0 mm

1шт.

5

81381C1

RING

11.1 mm

1шт.

5

81382C1

RING

11.2 mm

1шт.

5

81383C1

RING

11.3 mm

1шт.

5

81384C1

RING

11.4 mm

1шт.

5

81385C1

RING

11.5 mm

1шт.

5

81386C1

RING

11.6 mm

1шт.

5

81387C1

RING

11.7 mm

1шт.

5

81388C1

RING

11.8 mm

1шт.

5

81389C1

RING

11.9 mm

1шт.

5

81390C1

RING

12.0 mm

1шт.

5

81391C1

RING

12.1 mm

1шт.

5

81392C1

RING

12.2 mm

1шт.

5

81393C1

RING

12.3 mm

1шт.

5

81394C1

RING

12.4 mm

1шт.

6

81366C1

WASHER

DISK, 1.50 mm

1шт.

6

81367C1

SHIM

DISK, 0.90 mm

1шт.

6

81368C1

WASHER

DISK, 0.95 mm

1шт.

6

81369C1

SHIM

DISK, 1.00 mm

1шт.

6

81370C1

SHIM

DISK, 1.05 mm

1шт.

6

81371C1

SHIM

DISK, 1.10 mm

1шт.

6

81372C1

SHIM

DISK, 1.15 mm

1шт.

6

81373C1

SHIM

DISK, 1.20 mm

1шт.

6

81374C1

SHIM

DISK, 1.25 mm

1шт.

6

81375C1

SHIM

DISK, 1.30 mm

1шт.

6

81376C1

SHIM

DISK, 1.35 mm

1шт.

6

81377C1

SHIM

DISK, 1.40 mm

1шт.

6

81378C1

SHIM

DISK, 1.45 mm

1шт.

7

871245R1

BEARING, CUP,72.233 mm OD x 19.842 mm

BEARING outer race

1шт.

7

81379C1

BEARING, CONE

BEARING inner race

1шт.

8

81365C1

GEAR SET

SET bevel gear and shaft

1шт.
