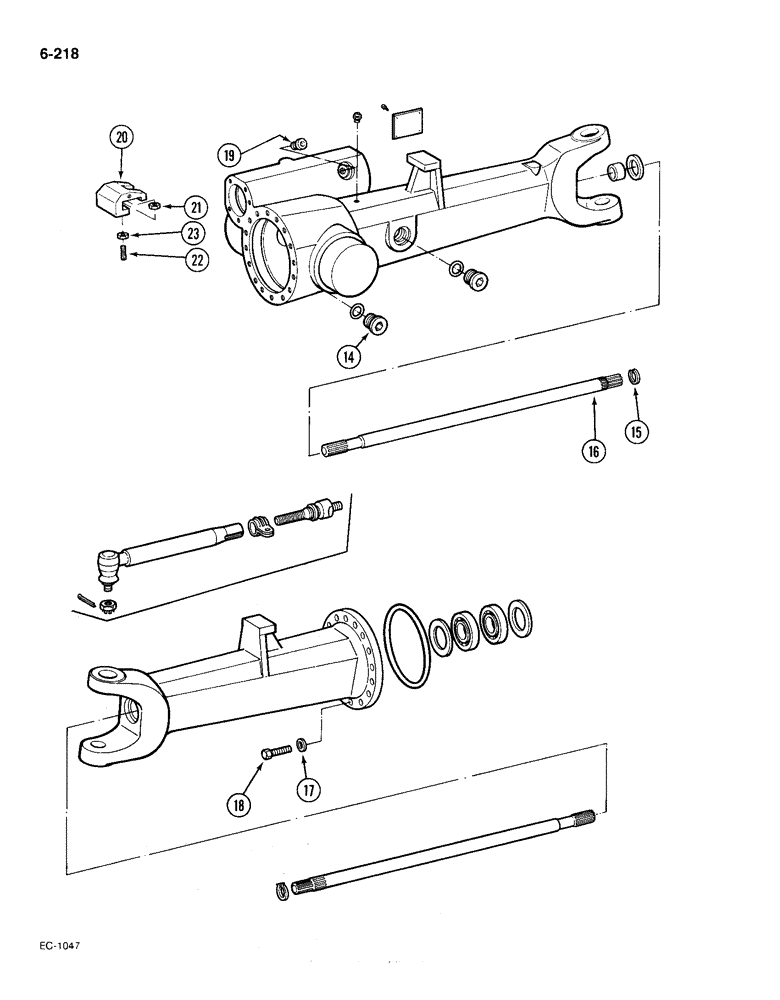

Запчасти Case IH 385 (6-218) - AXLE HOUSING, 4 WHEEL DRIVE, MFD AXLES APL-330 AND APL-325, TRACTORS P.I.N. 18001 AND AFTER (CONTD) (06) - POWER TRAIN

14

81283C1

PLUG

screw

1шт.

15

81409C1

RING, SNAP

RING retaining

2шт.

16

81408C1

SHAFT

plug-in

2шт.

17

3222147R1

DISC

WASHER flat, 14 mm

16шт.

18

931638R1

BOLT,Hex, M14 x 2 x 45mm, Cl 10.9, Full Thd

hex, M14 x 45 mm, class 10.9

16шт.

19

933679R1

PLUG,Hex Soc, M10 x 1, Pipe

hex socket, M10

1шт.

81405C1

TAPE

protection

1шт.

20

99775C1

STOP

axle oscillation

2шт.

21

99779C1

SQUARE NUT

square, 1/4 inch NC

2шт.

22

102436

SET SCREW,Sq Hd, 1/4"-20 x 1 1/2"

SCREW square head, 1/4 NC x 1-1/4 inch

2шт.

23

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.
