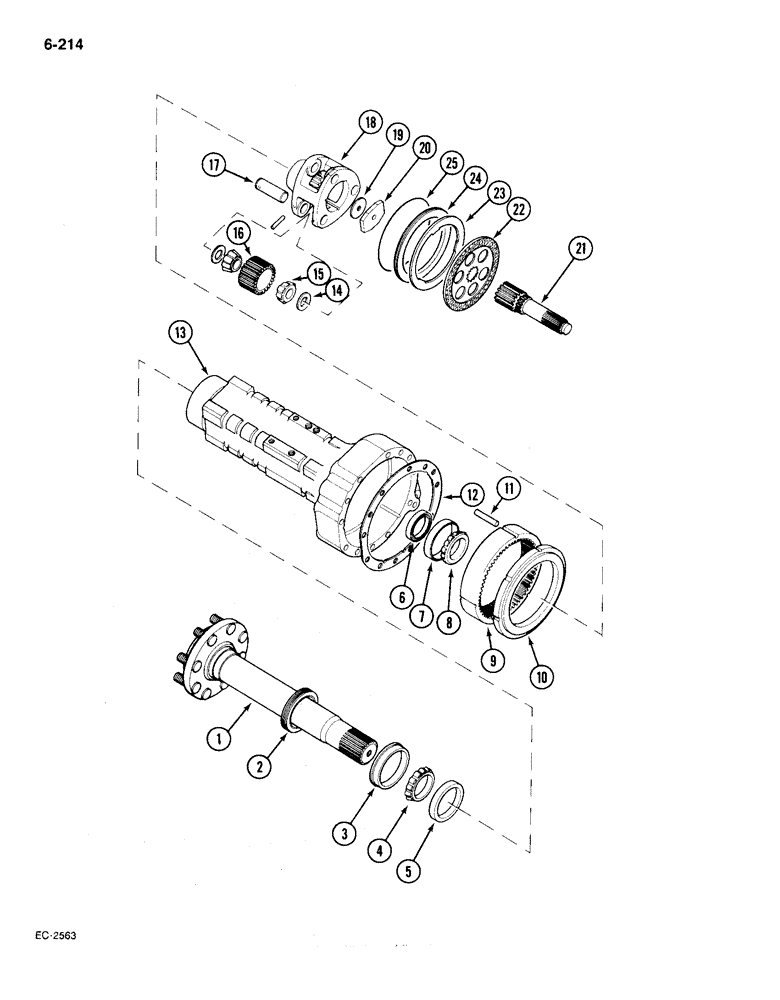

Запчасти Case IH 385 (6-214) - REAR AXLE, CARRIER AND CONNECTIONS (06) - POWER TRAIN

1

404340R21

HALF SHAFT

AXLE assembly, rear

2шт.

404341R3

BOLT,5/8" - 18 x 1.93", Full Thd

BOLT rear wheel

16шт.

3047575R3

NUT,Wheel, 5/8"-18

rear wheel mounting

16шт.

2

105470C1

OIL SEAL

SEAL oil, rear axle outer

2шт.

3

399754R1

SLEEVE

wear

2шт.

4

ST2000A

TAPERED BEARING

BEARING roller, rear axle outer, rear axle inner

2шт.

4

1500904C91

ROLLER BEARING

roller, optional to P/N ST2000A

1шт.

4

399756R91

BEARING ASSY,2.6876" ID x 4.3307" OD x 0.8661, 0.7411"

BEARING roller, optional to P/N ST2000A

1шт.

4

102160H

BEARING ASSY

BEARING roller, optional to P/N ST2000A

1шт.

5

NSS

NOT SOLD SEPARAT

CUP bearing, order: bearing P/N ST2000A

2шт.

6

380200R92

OIL SEAL

oil, rear axle inner

2шт.

7

NSS

NOT SOLD SEPARAT

CUP bearing, order bearing P/N 299188R91

2шт.

8

298188R91

BEARING ASSY

roller, rear axle inner, rear axle inner

2шт.

8

298189R91

BEARING ASSY,2.5" ID x 4.3307" OD x 0.866"

roller, optional to P/N 299188R91

1шт.

8

1500907C91

ROLLER BEARING

roller, optional to P/N 299188R91

1шт.

9

535316R1

GEAR, RING

GEAR ring, 66 teeth

2шт.

10

114620C1

RING,260mm OD

brake outer disc

2шт.

11

529685R1

DOWEL

PIN dowel, 3/8 x 2-1/4 inch

6шт.

12

399762R3

GASKET

rear axle carrier

2шт.

See SB 039 87 gasket eliminator no. 515.

1шт.

13

94225C1

AXLE CARRIER

CARRIER rear axle, left

1шт.

13

94226C1

AXLE CARRIER

CARRIER rear axle, right

1шт.

223444

BOLT,Hex, 5/8" - 11 x 4", Gr 8

hex, 5/8 NC x 4 inch, grade 8, 2 WD tractors

22шт.

20665R1

BOLT,Hex, 5/8" - 11 x 4 1/4", Gr 8

hex, 5/8 NC x 4-1/4 inch, grade 8, MFD tractors

22шт.

14

65420C1

SHIM KIT

KIT service, planet gear shim, includes shims listed below

1шт.

NSS

NOT SOLD SEPARAT

SHIM, 0.042 inch

3шт.

NSS

NOT SOLD SEPARAT

SHIM, 0.049 inch

3шт.

NSS

NOT SOLD SEPARAT

SHIM, 0.056 inch

3шт.

15

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

inner, planet gear

12шт.

16

399784R2

PINION

GEAR planet, 25 teeth

6шт.

17

399788R1

PIN

planet shaft

6шт.

19723R1

PIN,5/16" x 1 1/8", Coiled

6шт.

18

404339R3

PINION CARRIER

CARRIER planet gear

2шт.

19

65422C1

SHIM KIT

KIT service, rear axle retainer shims

1шт.

20

399748R1

SPACER

planet carrier

2шт.

20668R1

BOLT,Hex, 5/8" - 18 x 1 1/2", Gr 8

hex, 5/8 NC x 1-1/2 inch, grade 8

2шт.

21

404338R1

SHAFT

planetary drive, right

1шт.

21

404337R1

SHAFT

planetary drive, left

1шт.

22

114622C2

BRAKE DISC

DISC brake center

2шт.

23

399736R3

RING

brake, Assemble with numbered face inboard

2шт.

24

114621C1

PISTON

brake

2шт.

25

343932R1

O-RING,0.139" Thk x 9.984" ID, -274, Cl 6, 90 Duro

10 x 1/8 inch

2шт.

21472R1

O-RING,0.139" Thk x 8.234" ID, -267, Cl 6, 90 Duro

8-1/4 x 8-1/2 inch, class 6, Diff bearing carrier

2шт.

289506R1

O-RING,0.21" Thk x 7.475" ID, -367, Cl 5, 75 Duro

7-1/2 x 7-7/8 inch, Carrier seal

2шт.

539535R91

O-RING KIT

service, brake O-ring, Includes: P/N 343932R1

1шт.

343932R1

O-RING,0.139" Thk x 9.984" ID, -274, Cl 6, 90 Duro

10 x 1/8 inch, Brake piston

2шт.
