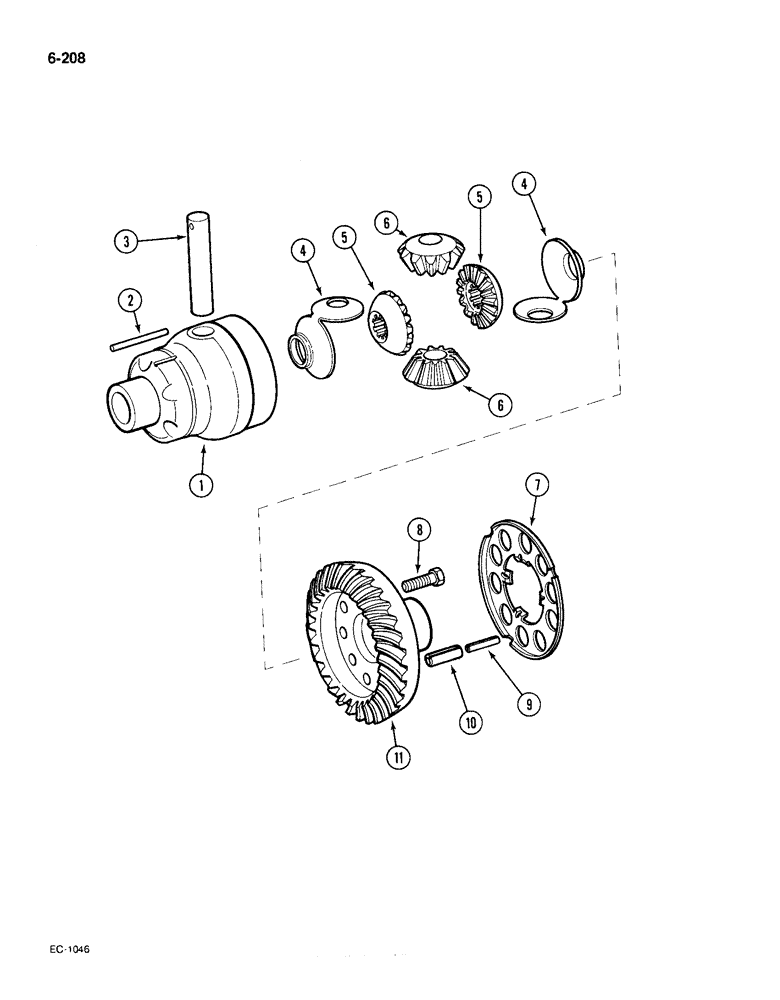

Запчасти Case IH 385 (6-208) - DIFFERENTIAL, 4 WHEEL DRIVE, MFD AXLE TYPE APL-330 (06) - POWER TRAIN

NSS

NOT SOLD SEPARAT

DIFFERENTIAL, Includes: Ref. 1 through 11

1шт.

1

81400C1

HOUSING

CASE differential

1шт.

2

932183R1

LOCK PIN,M5 x 50, Slotted

PIN slotted spring, 5 x 50 mm

1шт.

3

81252C1

AXLE DIFFERENTIAL

SHAFT differential

1шт.

4

81402C1

THRUST WASHER

WASHER thrust

2шт.

5

81401C1

CONE PINION

GEAR differential, side

2шт.

6

81403C1

CONE PINION

GEAR pinion, differential

2шт.

7

81253C1

PLATE

lock

1шт.

8

931369R1

BOLT,Hex, M10 x 1.5 x 28mm, Cl 10.9, Full Thd

BOLT hex, M10 x 28 mm, class 10.9

10шт.

9

932671R1

LOCK PIN,M6 x 30, Slotted

PIN, slotted spring, 6 x 30 mm

5шт.

10

Q2948

LOCK PIN,M10 x 30, Slotted

PIN, LOCK, M10 x 30, Slotted

5шт.

11

NSS

NOT SOLD SEPARAT

GEAR bevel, order: gear set P/N 81365C1

1шт.
