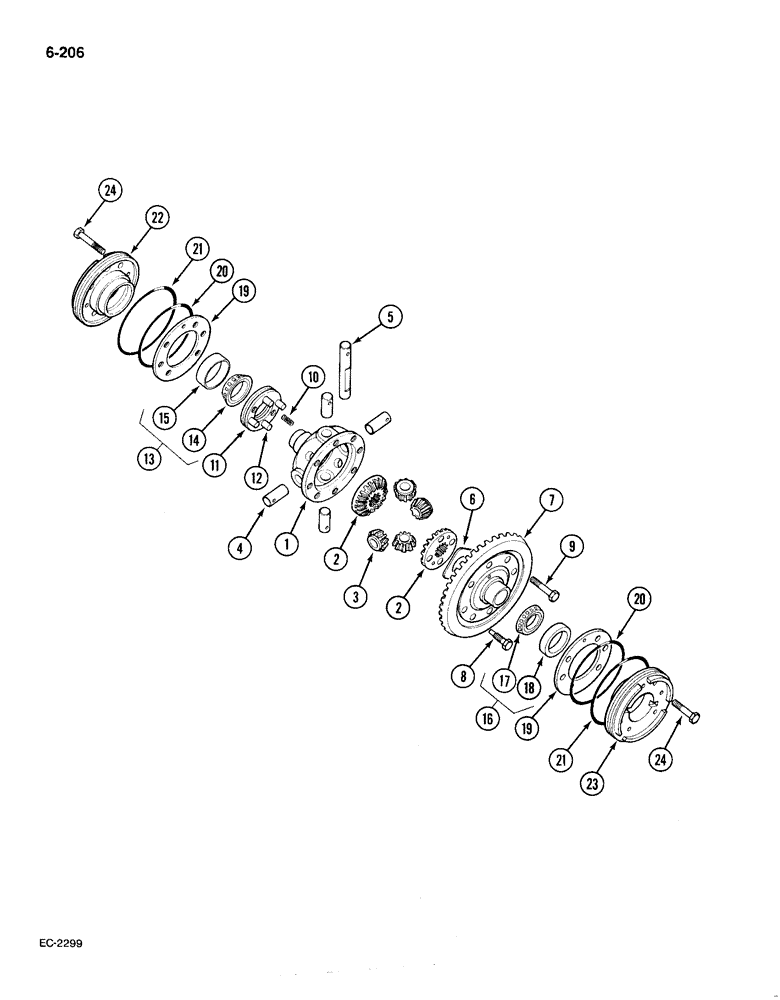

Запчасти Case IH 385 (6-206) - DIFFERENTIAL AND CONNECTIONS (06) - POWER TRAIN

1

399763R1

PINION CARRIER

CARRIER differential

1шт.

2

404336R1

PINION

GEAR bevel, differential, 20 teeth

2шт.

3

399776R1

PINION

GEAR differential pinion, 10 teeth

2шт.

4

NSS

NOT SOLD SEPARAT

NOT USED IN THIS APPLICATION

1шт.

5

399775R1

SHAFT

differential pinion

1шт.

6

399778R1

THRUST WASHER

thrust, differential bevel gear

1шт.

7

99449C1

GEAR, BEVEL

GEAR bevel, matched set with shaft, 12/53 teeth, Start Serial: 18001

1шт.

7

1954073C1

GEAR

bevel, matched set, Serial Range: -18001

1шт.

8

399779R2

BOLT,Hex, 1/2" - 13 x 2.12", Gr 8

BOLT dowel, hex, 1/2 NC x 2-1/8 inch

1шт.

9

340340R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

hex, 1/2 NC x 1-1/2 inch, grade 8

7шт.

10

400867R1

SPRING

differential lock

2шт.

11

399764R11

LOCKING RING

RING differential lock, Includes: Ref. 12

1шт.

12

399765R1

PIN

coupling

4шт.

13

105504H

TAPERED BEARING,57.163 mm ID x 96.863 mm OD x 21.2 mm

roller, differential, right, Includes: Ref. 14 and 15

1шт.

13

402353R91

BEARING ASSY,2.25" ID x 3.815" OD x 0.8268"

roller, optional to P/N 105504H, Includes: Ref. 14 and 15

1шт.

13

1500909C91

TAPERED BEARING,57.163 mm ID x 96.863 mm OD x 21.1 mm

roller, optional to P/N 105504H, Includes: Ref. 14 and 15

1шт.

14

NSS

NOT SOLD SEPARAT

BEARING cone

1шт.

15

NSS

NOT SOLD SEPARAT

BEARING cup

1шт.

16

105502H

TAPERED BEARING,2.25" ID x 3.8437" OD x 0.9688"

roller, differential, left, Includes: Ref. 17 and 18

1шт.

16

399766R91

ROLLER BEARING

BEARING roller, optional to P/N 105502H, Includes: Ref. 17 and 18

1шт.

16

1502182C91

TAPERED BEARING,57.163 mm ID x 97.655 mm OD x 24.808 mm

roller, optional to P/N 105502H, Includes: Ref. 17 and 18

1шт.

17

NSS

NOT SOLD SEPARAT

BEARING cone

1шт.

18

NSS

NOT SOLD SEPARAT

BEARING cup

1шт.

19

65419C1

BEARING CARRIER

KIT shims, differential bearing carrier

1шт.

NSS

NOT SOLD SEPARAT

SHIM, 0.003 inch

3шт.

NSS

NOT SOLD SEPARAT

SHIM, 0.007 inch

3шт.

NSS

NOT SOLD SEPARAT

SHIM, 0.012 inch

3шт.

NSS

NOT SOLD SEPARAT

SHIM, 0.030 inch

3шт.

20

289506R1

O-RING,0.21" Thk x 7.475" ID, -367, Cl 5, 75 Duro

7-1/2 x 7-7/8 inch

2шт.

21

21472R1

O-RING,0.139" Thk x 8.234" ID, -267, Cl 6, 90 Duro

8-1/4 x 8-1/2 inch, class 6

2шт.

22

399770R2

BEARING CARRIER

CARRIER differential bearing, right

1шт.

23

399769R2

BEARING CARRIER

CARRIER differential bearing, left

1шт.

24

340340R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

hex, 1/2 NC x 1-1/2 inch, grade 8

8шт.
