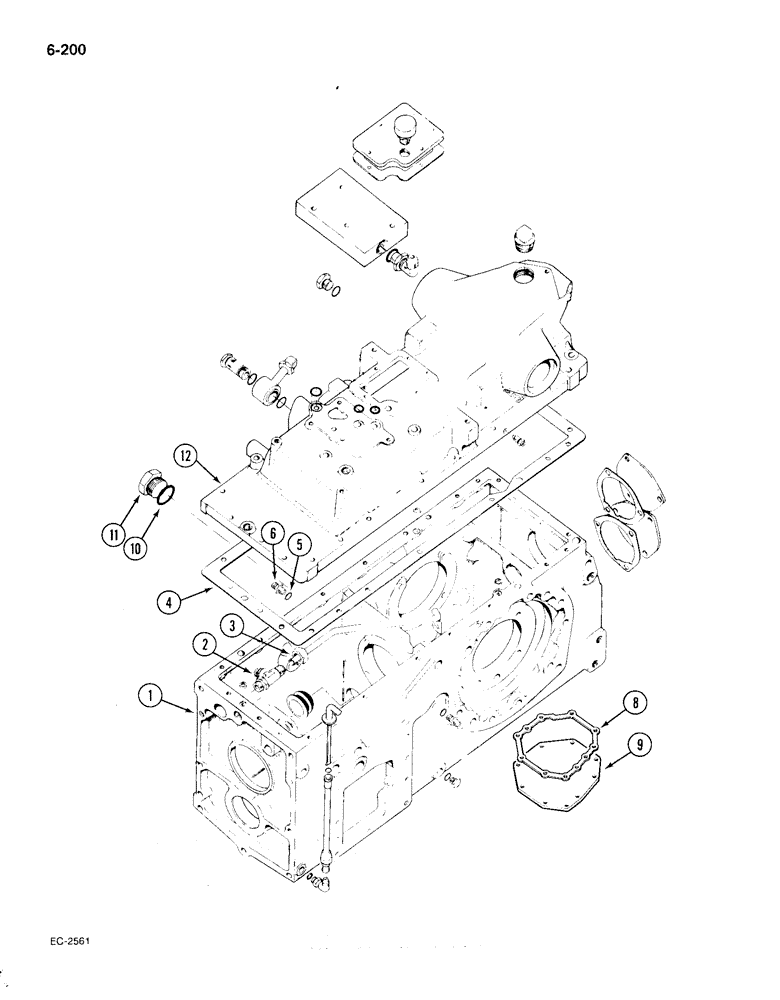

Запчасти Case IH 385 (6-200) - REAR FRAME, COVER AND CONNECTIONS (06) - POWER TRAIN

1

1289949C91

FRAME ASSY

FRAME rear, Serial Range: -5287

1шт.

1

82793C91

FRAME

rear, Start Serial: 18001

1шт.

327412R1

PLUG,Cup, 13/16"

cup, 13/16 inch

1шт.

3113103R1

PLUG

hex, 3/4 inch NPTF

1шт.

444836

PLUG,Hex Hd, 3/4"-14

hex, 3/4 inch NPTF, Optional to P/N 3113103R1

1шт.

349373R1

PLUG

cup, 1-1/4 inch

1шт.

19904R1

DOWEL,1/2" x 1"

PIN dowel, 1/2 x 1 inch

2шт.

19875R1

DOWEL,5/8" x 1 1/2"

PIN dowel, 5/8 x 1-1/2 inch

4шт.

386194R1

PLUG,Cup, 3/4"

cup, 3/4 inch

2шт.

512870R1

PLUG,Cup, 2 1/4"

cup, 2-1/4 inch

1шт.

19846R1

DOWEL,1/2" x 1 1/4"

PIN dowel, 1/2 x 1-1/4 inch

1шт.

23828R1

PLUG,Cup, 2 1/2"

cup, 2-1/2 inch

1шт.

151162R1

PLUG,Cup, 1 3/8"

cup, 1-3/8 inch

2шт.

327413R1

PLUG

cup, 1-1/2 inch

1шт.

28673R1

PLUG,Cup, 2 1/8"

cup, 2-1/8 inch

1шт.

3142063R1

PLUG

cup, 52 mm

1шт.

2

9411131

TEE,3/4"-16, 37 Degree x 3/4"-18, O-Ring Run

90 degree adjustable, 1/2 inch OD tube

1шт.

3

68393C1

TUBE ASSY.

TUBE return, transfer pump, Serial Range: -5287

1шт.

3

86337C1

PIPE

TUBE return, Start Serial: 18001

1шт.

4

538649R92

GASKET KIT

KIT rear frame cover gasket

1шт.

See SB 039 87 gasket eliminator no. 515.

1шт.

5

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube, class 6

1шт.

6

3129671R1

FITTING

ADAPTER brake pipe, Right brake tube

1шт.

8

405739R2

GASKET

side PTO cover, Serial Range: -5287

1шт.

8

82632C2

GASKET

transfer gear box, Start Serial: 18001

1шт.

9

405738R1

COVER

side PTO, Serial Range: -5287

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

, Serial Range: -5287

7шт.

9

94293C1

COVER

CAWD opening, Start Serial: 18001

1шт.

24861R1

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

, Start Serial: 18001

9шт.

26273R1

WASHER

flat, 0.531 x 1.062 x 0.134 inch

9шт.

10

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

1 inch OD tube, class 6

1шт.

11

9410363

PLUG

O-ring boss, 1 inch OD tube

1шт.

12

529381R96

COVER ASSY

COVER rear frame

1шт.

386194R1

PLUG,Cup, 3/4"

cup, 3/4 inch

1шт.

373553R1

PLUG,Cup, 7/8"

cup, 7/8 inch

1шт.

41600D

PLUG,Cup, 1 1/8"

cup, 1-1/8 inch

1шт.

24469R1

PLUG,Cup, 3 1/4"

cup, 3-1/4 inch

2шт.
