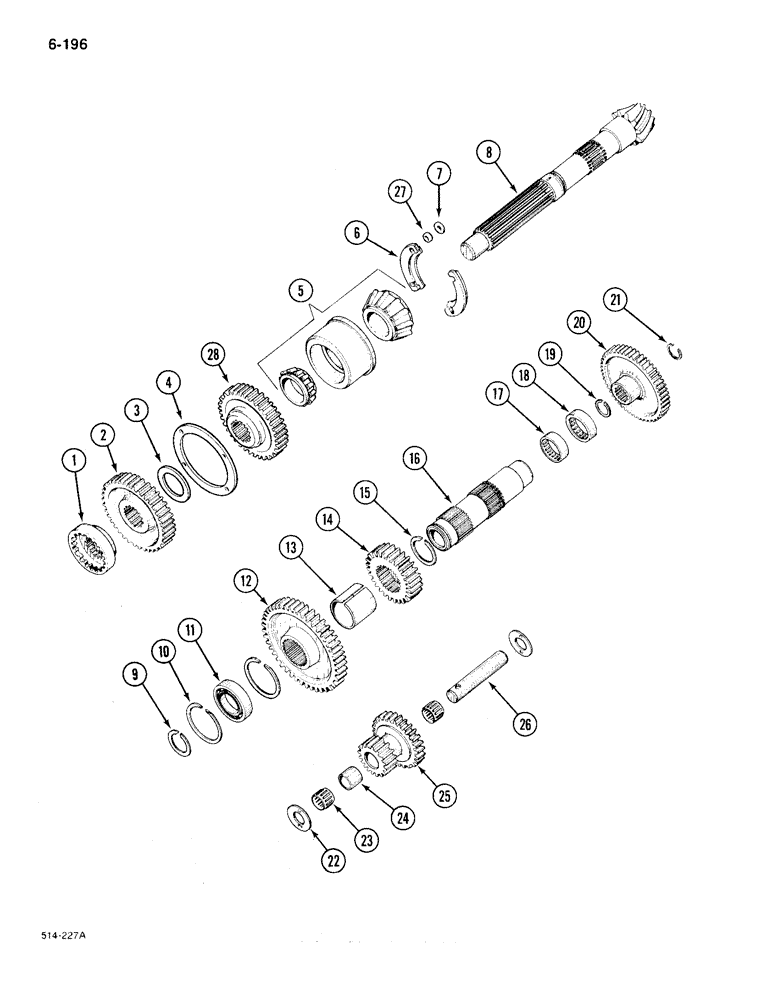

Запчасти Case IH 385 (6-196) - RANGE TRANSMISSION, IN REAR FRAME, MFD TRACTOR P.I.N. 18001 AND AFTER (06) - POWER TRAIN

1

1277137C1

COLLAR ASSY.

COLLAR high speed shift

1шт.

2

1286470C1

GEAR

sliding, forward or reverse, 42 teeth

1шт.

3

65788C1

WASHER

thrust, bevel pinion shaft

1шт.

4

65423C1

SHIM KIT

KIT shim, main shaft bearing cage

1шт.

5

1289706C91

BEARING,52.4mm ID x 116.84mm OD x 66.67mm W

main shaft

1шт.

6

83299C1

RETAINER

main shaft bearing

2шт.

179843

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

4шт.

7

65787C1

WASHER

bearing, retainer bolt

3шт.

8

NSS

NOT SOLD SEPARAT

SHAFT, See Fig. 6-198

1шт.

9

327068R1

RING, SNAP

RING retaining

1шт.

10

399832R1

RING, SNAP

RING retaining

2шт.

11

ST572

BEARING, BALL,50 mm ID x 80 mm OD x 16 mm

BEARING ball

1шт.

12

404097R1

GEAR

constant mesh, 46 teeth

1шт.

13

399825R1

BEARING CUP

CAGE bearing

1шт.

14

103150C1

PINION

GEAR driving, low range, 24 teeth

1шт.

15

398264R1

SNAP RING,#215, 2.026", Ext

RING retaining, external, 2.026 inch, constant mesh driven gear

1шт.

16

94403C1

SHAFT

counter, range transmission

1шт.

17

399820R91

BEARING, NEEDLE,Needle, 47.61mm ID x 57.16mm OD x 15.88mm W

BEARING needle countershaft

1шт.

17

527746R91

BEARING, NEEDLE

BEARING needle, optional to P/N 399820R91

1шт.

18

362251R91

BEARING, NEEDLE,Needle, 47.62mm ID x 57.15mm OD x 12.57mm W

BEARING needle, pump drive gear

1шт.

18

527747R91

BEARING, NEEDLE

BEARING needle, optional to P/N 9362251R91

1шт.

19

399837R1

SNAP RING,#118, 1.121", Ext

RING retaining, external, 1.121 inch

1шт.

20

94404C1

PINION

GEAR pump drive, 55 teeth

1шт.

21

533266R1

RING, SNAP

RING retaining, external, 0.98 inch

1шт.

22

3112846R1

THRUST WASHER

WASHER thrust

2шт.

23

3113041R91

ROLLER CAGE BEARING

needle, 1.25 inch OD reverse idler gear

2шт.

Ref. 23 P/N 3113041R91 see SB 2988 reverse isler gear & bearing P/N A58077.

1шт.

23

3112844R91

BEARING, NEEDLE

BEARING needle, 1.25 inch OD, optional to P/N 3113041R91

2шт.

24

3112845R1

SPACER

idler bearing

1шт.

25

70298C1

PINION

GEAR reverse idler, 20/24 teeth

1шт.

26

399838R3

SHAFT

reverse idler

1шт.

366281R1

PIN,3/8" x 2", Coiled

1шт.

27

94323C1

BUSHING

bearing retainer

1шт.

28

82354C1

GEAR

drive, 38 teeth

1шт.

67628C1

CIRCLIP

SHIM bevel pinion, 0.093 inch

1шт.

67575C1

CIRCLIP

SHIM bevel pinion, 0.090 inch

1шт.

67574C1

CIRCLIP

SHIM bevel pinion, 0.087 inch

1шт.

67573C1

SNAP RING,2.13mm Thk, Ext

SHIM bevel pinion, 0.084 inch

1шт.

67572C1

CIRCLIP

SHIM bevel pinion, 0.081 inch

1шт.

66077C1

CIRCLIP

SHIM bevel pinion, 0.078 inch

1шт.

67571C1

CIRCLIP

SHIM bevel pinion, 0.075 inch

1шт.

67570C1

CIRCLIP

SHIM bevel pinion, 0.072 inch

1шт.

67569C1

CIRCLIP

SHIM bevel pinion, 0.069 inch

1шт.

67568C1

CIRCLIP

SHIM bevel pinion, 0.066 inch

1шт.
