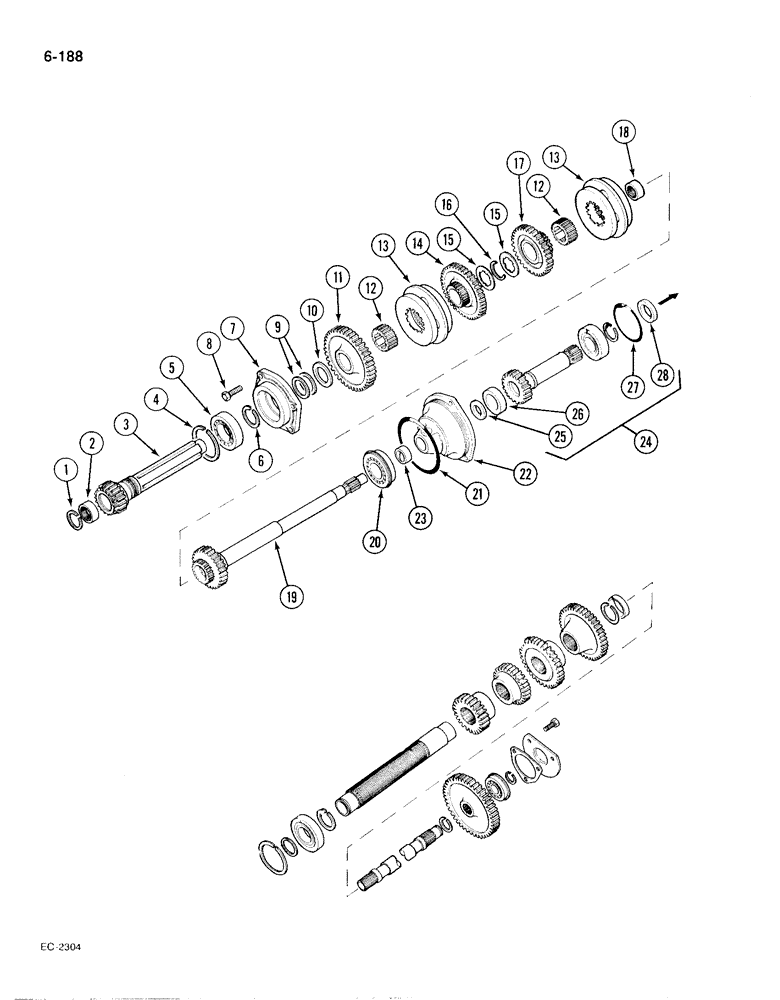

Запчасти Case IH 385 (6-188) - SPEED TRANSMISSION IN CLUTCH HOUSING (06) - POWER TRAIN

1

66014C1

SNAP RING

RING internal snap

1шт.

2

613639C91

NEEDLE BEARING,38.09mm ID x 47.65mm OD x 25.4mm W

needle, main shaft

1шт.

3

65258C1

SHAFT

main, speed transmission

1шт.

3

3118323R1

SHAFT

main, speed transmission, tractors with 2 speed power shift

1шт.

4

A32422

SNAP RING,2.36mm Thk, Int

RING internal snap

1шт.

5

ST264

BEARING, BALL,50 mm ID x 90 mm OD x 20 mm

BEARING ball, main shaft

1шт.

5

20161D

BEARING, BALL,50 mm ID x 90 mm OD x 20 mm

BEARING ball, optional to P/N ST264

1шт.

5

71271C91

BALL BEARING

BEARING ball, optional to P/N ST264

1шт.

5

704234R91

BALL BEARING

BEARING ball, optional to P/N ST264

1шт.

5

3048701R91

BALL BEARING

BEARING ball, optional to P/N ST264

1шт.

6

A27089

SNAP RING,2.36mm Thk, Ext

RING retaining

1шт.

7

534411R1

BEARING ASSY

CAGE main shaft bearing

1шт.

8

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

hex, 3/8 NC x 1 inch, grade 5

4шт.

9

404281R1

RING,Locking, 46.08mm ID x 50.8mm OD x 2.37mm Thk

sealing

2шт.

10

398332R1

WASHER

mainshaft bearing cage

1шт.

11

398331R2

PINION

GEAR, 1st speed driven, 41 teeth

1шт.

12

398325R1

HUB

speed shift

2шт.

13

65793C2

SYNCHRONIZER

with cups

2шт.

14

398330R3

PINION

GEAR, 2nd speed driven, 33 teeth

1шт.

15

398328R2

THRUST WASHER

WASHER thrust, main shaft

2шт.

16

398329R1

CIRCLIP

RING snap, synchronizer locating

1шт.

17

398327R3

PINION

GEAR, 4th speed driven, 24 teeth

1шт.

18

531168R91

BEARING, NEEDLE,Needle, 34.91mm ID x 44.44mm OD x 15.88mm W

BEARING needle, clutch shaft

1шт.

19

92717C1

SHAFT

clutch

1шт.

20

ST243

BEARING, BALL,45 mm ID x 85 mm OD x 19 mm

BEARING ball, clutch shaft

1шт.

20

70126C91

BALL BEARING

BEARING ball, optional to P/N ST243

1шт.

20

42347D

BALL BEARING

BEARING ball, optional to P/N ST243

1шт.

20

398323R91

BALL BEARING

BEARING ball, optional to P/N ST243

1шт.

20

3066860R91

BALL BEARING

BEARING ball, optional to P/N ST243

1шт.

20

3066862R91

BALL BEARING

BEARING ball, optional to P/N ST243

1шт.

20

3067617R91

BEARING, BALL

BEARING ball, optional to P/N ST243

1шт.

21

26969R1

O-RING,0.139" Thk x 5.234" ID, -252, Cl 6, 90 Duro

5-1/4 x 5-1/2 inch, class 6

1шт.

22

398318R41

CAGE ASSY.

CAGE IPTO and clutch shaft, Includes: Ref. 23

1шт.

23

398319R1

BUSHING,30.05mm ID x 33.48mm OD x 15.88mm L

clutch shaft

1шт.

24

1277488C2

SEAL KIT

KIT service, seals, Includes: Ref. 25 through 28

1шт.

25

NSS

NOT SOLD SEPARAT

SEAL oil, clutch shaft

1шт.

26

NSS

NOT SOLD SEPARAT

SEAL oil, PTO drive shaft

1шт.

27

355740R1

O-RING,0.139" Thk x 3.734" ID, -240, Cl 5, 75 Duro

3-3/4 x 4 inch, class 5

1шт.

28

3129030R2

SEAL,42.8mm ID x 63.65mm OD x 7.92mm Thk

SEAL oil, release sleeve

1шт.

NSS

NOT SOLD SEPARAT

SLEEVE installation

2шт.

NSS

NOT SOLD SEPARAT

INSTRUCTIONS fitting

1шт.
