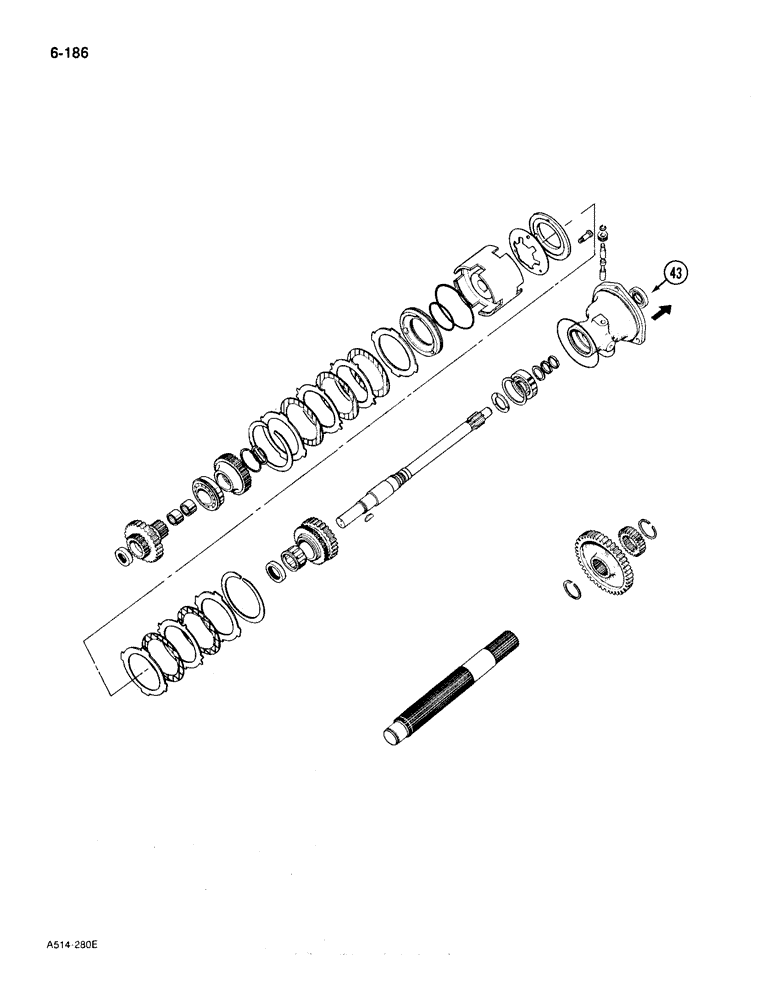

Запчасти Case IH 385 (6-186) - TWO SPEED POWER SHIFT, TRACTORS P.I.N. 18001 AND AFTER (06) - POWER TRAIN

43

NSS

NOT SOLD SEPARAT

SEAL oil, Order Kit P/N 1277488C2

1шт.

1277488C2

SEAL KIT

KITservice, seals, Includes: sleeve, seal, O-ring P/N 355740R1and seal P/N 3129030R2 listed below

1шт.

NSS

NOT SOLD SEPARAT

SLEEVE installation

2шт.

355740R1

O-RING,0.139" Thk x 3.734" ID, -240, Cl 5, 75 Duro

3-3/4 x 4 inch, class 5

1шт.

NSS

NOT SOLD SEPARAT

SEAL oil, PTO drive shaft

1шт.

3129030R2

SEAL,42.8mm ID x 63.65mm OD x 7.92mm Thk

SEAL oil, release sleeve

1шт.

1282783C91

PACKAGE

TA heavy duty update, includes all parts listed below

1шт.

1502339C1

HOUSING

CUP direct drive clutch

1шт.

401716R3

DISC

PLATE clutch driven

6шт.

401717R1

PLATE

clutch separator

4шт.

1502341C1

BOLT,Hex Skt, 1/4" - 28 - 9.50mm x 33mm

BOLT piston return

3шт.

65240C1

SQUARE NUT

square, 1/4 inch NC

3шт.

1502340C1

PLATE

clutch backing

2шт.

402563R2

PINION

GEAR drive, sprag clutch

1шт.

NSS

NOT SOLD SEPARAT

GEAR, 25 teeth

1шт.

NSS

NOT SOLD SEPARAT

BUSHING

1шт.

406275R1

RING

clutch shaft piston

2шт.

401621R3

GASKET

clutch housing top cover

1шт.

26969R1

O-RING,0.139" Thk x 5.234" ID, -252, Cl 6, 90 Duro

5-1/4 x 5-1/2 inch, class 6

1шт.

355740R1

O-RING,0.139" Thk x 3.734" ID, -240, Cl 5, 75 Duro

3-3/4 x 4 inch, class 5

1шт.

402571R1

O-RING,54.97mm ID x 61.87mm OD x 1.75mm Thk

piston, inner

1шт.

401724R1

SEAL,0.551" ID x 0.07" Width

O-RING piston, outer, clutch piston outer

1шт.

402574R1

BELLEVILLE WASHER

WASHER, Belleville

3шт.

1502338C91

SHIM KIT

KIT service, shims, includes shims and diagram listed below

1шт.

NSS

NOT SOLD SEPARAT

SHIM piston return, 0.014 inch

2шт.

NSS

NOT SOLD SEPARAT

SHIM piston return, 0.024 inch

2шт.

NSS

NOT SOLD SEPARAT

SHIM piston return, 0.036 inch

2шт.

NSS

NOT SOLD SEPARAT

DIAGRAM TA clutch cup assembly

1шт.

1502344C93

PACKAGE

KIT service, regulator valve, includes parts listed below

1шт.

NSS

NOT SOLD SEPARAT

PLUG

1шт.

NSS

NOT SOLD SEPARAT

SPRING

1шт.

NSS

NOT SOLD SEPARAT

SHIM

2шт.

NSS

NOT SOLD SEPARAT

DIAGRAM

1шт.
