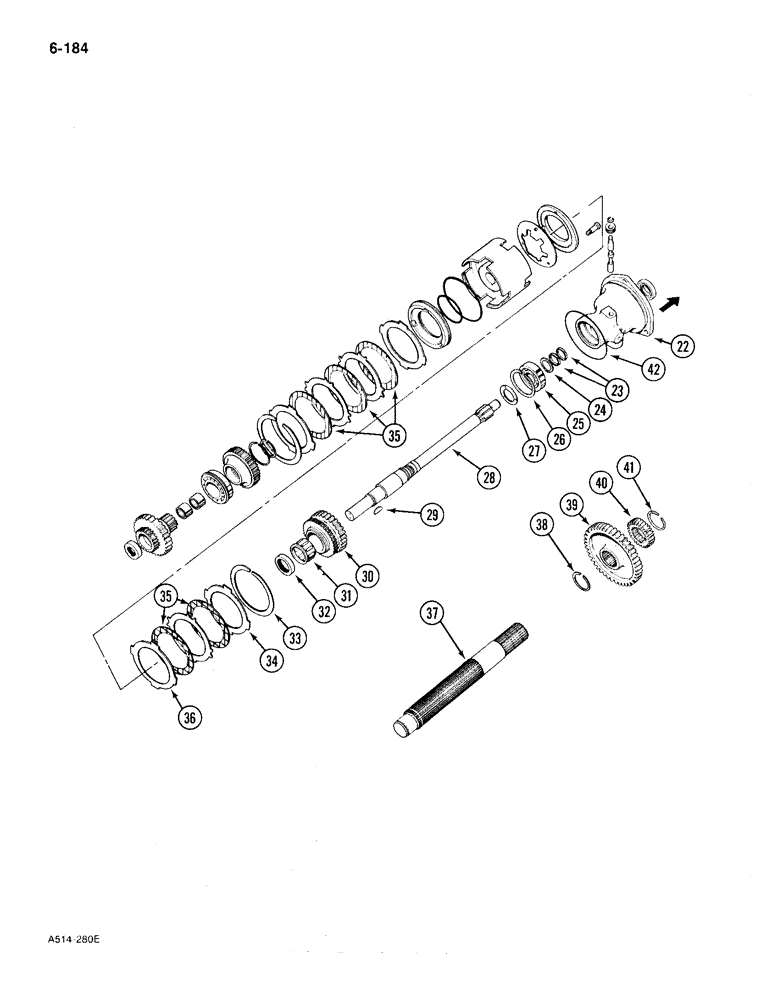

Запчасти Case IH 385 (6-184) - TWO SPEED POWER SHIFT, TRACTORS P.I.N. 18001 AND AFTER (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
22
98555C1
HOUSING
CAGE IPTO and clutch cup retainer
1шт.
23
85038C1
SEALING RING,27.15mm ID x 30.4mm OD x 2.29mm Thk
clutch shaft piston
2шт.
24
A21619
CIRCLIP
RING retaining, clutch shaft bearing, outer
1шт.
25
ST205A
BEARING, BALL,35 mm ID x 72 mm OD x 17 mm
BEARING ball, clutch shaft
1шт.
25
76491H
BEARING, BALL,35 mm ID x 72 mm OD x 17 mm W
BEARING ball, optional to P/N ST205A
1шт.
25
704769R92
BEARING, BALL,35 mm ID x 72 mm OD x 17"
BEARING ball, optional to P/N ST205A
1шт.
25
71270C91
BEARING, BALL
BEARING ball, optional to P/N ST205A
1шт.
25
700311R91
BEARING, BALL,35 mm ID x 72 mm OD x 17 mm
BEARING ball, optional to P/N ST205A
1шт.
26
377911R1
RING, SNAP
RING retaining, inner, clutch shaft bearing
1шт.
27
402562R1
THRUST WASHER
WASHER thrust clutch shaft
1шт.
28
92757C91
SHAFT
clutch
1шт.
222386
CAPSCREW,Set, Hdls, 1/4" - 20 x 1/4", Flat Pt
SCREW set hex socket, 1/4 NC x 1/4 inch
1шт.
SET SCREW,Hex Soc, 1/4"-20 x 1/4"
SCREW set hex socket, 1/4 NC x 1/4 inch, optional to P/N 222386
1шт.
29
88907
WOODRUFF KEY,#B, 5/16" x 1", HT
KEY woodruff, 5/16 x 1 inch, clutch cup retainer
1шт.
30
402563R2
PINION
GEAR drive, sprag clutch
1шт.
31
402566R1
BEARING ASSY
sprag
1шт.
32
402567R91
OIL SEAL,36.65mm ID x 54.86mm OD x 4.78mm Thk
SEAL oil, sprag bore
1шт.
33
401720R1
CIRCLIP
RING retaining, backing plate
1шт.
34
402569R1
PLATE
clutch backing
1шт.
35
401716R3
DISC
PLATE clutch driven
6шт.
36
402572R1
PLATE
piston backing
1шт.
37
404104R3
SHAFT
counter-rotating
1шт.
38
381486R1
SNAP RING,#187, 1.759", Ext
RING retaining, external, 1.759 inch
1шт.
39
404105R1
PINION
GEAR driven, 42 teeth
1шт.
40
Not used in this application
1шт.
41
381486R1
SNAP RING,#187, 1.759", Ext
RING retaining, external, 1.759 inch
1шт.
42
26969R1
O-RING,0.139" Thk x 5.234" ID, -252, Cl 6, 90 Duro
5-1/4 x 5-1/2 inch, class 6
1шт.
Выбрано товаров: 27
