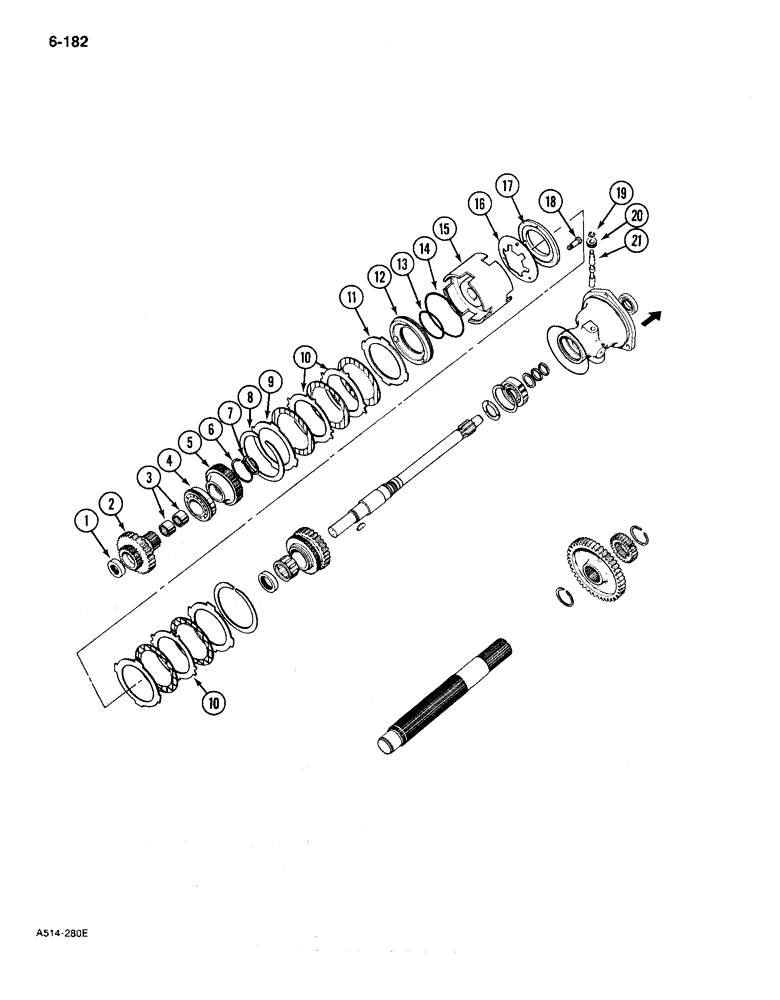

Запчасти Case IH 385 (6-182) - TWO SPEED POWER SHIFT, TRACTORS P.I.N. 18001 AND AFTER (06) - POWER TRAIN

1

3118322R91

BEARING, NEEDLE

BEARING needle, clutch shaft

1шт.

2

3118321R2

PINION

GEAR direct drive hub, 28 teeth

1шт.

3

550839R91

BEARING, NEEDLE

BEARING needle

2шт.

3

531436R91

NEEDLE BEARING

BEARING needle, optional to P/N 550839R91

2шт.

4

ST243

BEARING, BALL,45 mm ID x 85 mm OD x 19 mm

BEARING ball

1шт.

4

42347D

BALL BEARING

BEARING ball, optional to P/N ST243

1шт.

4

398323R91

BALL BEARING

BEARING ball, optional to P/N ST243

1шт.

4

70126C91

BALL BEARING

BEARING ball, optional to P/N ST243

1шт.

4

3066862R91

BALL BEARING

BEARING ball, optional to P/N ST243

1шт.

4

3067617R91

BEARING, BALL

BEARING ball, optional to P/N ST243

1шт.

4

3066860R91

BALL BEARING

BEARING ball, optional to P/N ST243

1шт.

5

404199R3

SPROCKET ASSY.

CARRIER direct drive clutch disc

1шт.

6

336000R1

SNAP RING,#175, 1.640", Ext

RING retaining, external, 1.64 inch

1шт.

7

583976R1

SNAP RING,#125, 1.179", Ext

RING retaining, external, 1.179 inch

1шт.

8

401720R1

CIRCLIP

RING retaining, backing plate

1шт.

9

1502340C1

PLATE

clutch backing

1шт.

10

401717R1

PLATE

clutch separator

4шт.

11

402572R1

PLATE

piston backing

1шт.

12

402570R1

PISTON

direct drive clutch

1шт.

13

402571R1

O-RING,54.97mm ID x 61.87mm OD x 1.75mm Thk

piston, inner

1шт.

14

401724R1

SEAL,0.551" ID x 0.07" Width

O-RING piston, outer, clutch piston outer

1шт.

15

1502339C1

HOUSING

CUP direct drive clutch

1шт.

16

402574R1

BELLEVILLE WASHER

WASHER, Belleville

3шт.

17

402573R1

PLATE

pressure, clutch lock-up

1шт.

18

1502341C1

BOLT,Hex Skt, 1/4" - 28 - 9.50mm x 33mm

BOLT piston return

3шт.

65240C1

SQUARE NUT

square, 1/4 inch NC

3шт.

402576R1

WASHER,6.6mm ID x 15.88mm OD x 0.84mm Thk

piston support

3шт.

19

Not used in this application

1шт.

20

Not used in this application

1шт.

21

Not used in this application

1шт.
