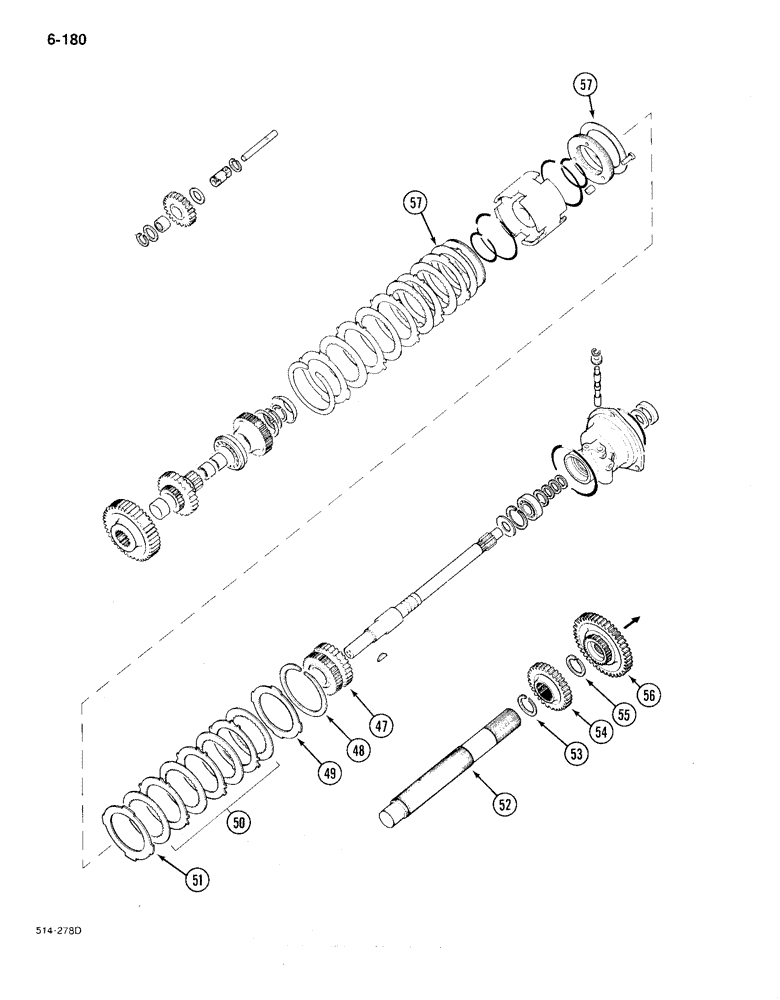

Запчасти Case IH 385 (6-180) - FORWARD AND REVERSE, SYNCHROMESH DRIVE (06) - POWER TRAIN

47

527763R3

PINION

GEAR - drive, 28 teeth

1шт.

48

401720R1

CIRCLIP

RING - retaining, backing plate

1шт.

49

70016C1

PLATE

- clutch backing

1шт.

50

NSS

NOT SOLD SEPARAT

PLATE - clutch, order kit P/N 534937R92

1шт.

51

402572R1

PLATE

- piston backing

1шт.

52

404104R3

SHAFT

- counter-rotating

1шт.

53

381486R1

SNAP RING,#187, 1.759", Ext

RING - retaining, external, 1.759 inch

2шт.

54

527771R1

PINION

GEAR - forward/reverse driven 31 teeth

1шт.

55

381486R1

SNAP RING,#187, 1.759", Ext

RING - retaining, external, 1.759 inch

1шт.

56

527770R1

GEAR

- driven, Ipto, 46 teeth; fwd/rev pump, 33 teeth

1шт.

57

70039C1

SHIM KIT

KIT - service, piston return shims, includes shims and instructions

1шт.

NSS

NOT SOLD SEPARAT

SHIM - 0.014 inch

2шт.

NSS

NOT SOLD SEPARAT

SHIM - 0.024 inch

2шт.

NSS

NOT SOLD SEPARAT

SHIM - 0.036 inch

2шт.

NSS

NOT SOLD SEPARAT

INSTRUCTIONS - fitting, shim installation

1шт.

1277488C2

SEAL KIT

KIT - service, seals, includes parts listed below and instructions

1шт.

SB 0487 transmission input shaft seal leakage.

1шт.

NSS

NOT SOLD SEPARAT

SEAL - oil, clutch shaft

1шт.

NSS

NOT SOLD SEPARAT

SLEEVE - installation

2шт.

355740R1

O-RING,0.139" Thk x 3.734" ID, -240, Cl 5, 75 Duro

- 3-3/4 x 4 inch, class 5

1шт.

NSS

NOT SOLD SEPARAT

SEAL - oil, IPTO drive shaft

1шт.

3129030R2

SEAL,42.8mm ID x 63.65mm OD x 7.92mm Thk

SEAL - oil, release sleeve

1шт.

NSS

NOT SOLD SEPARAT

INSTRUCTIONS - fitting

1шт.
