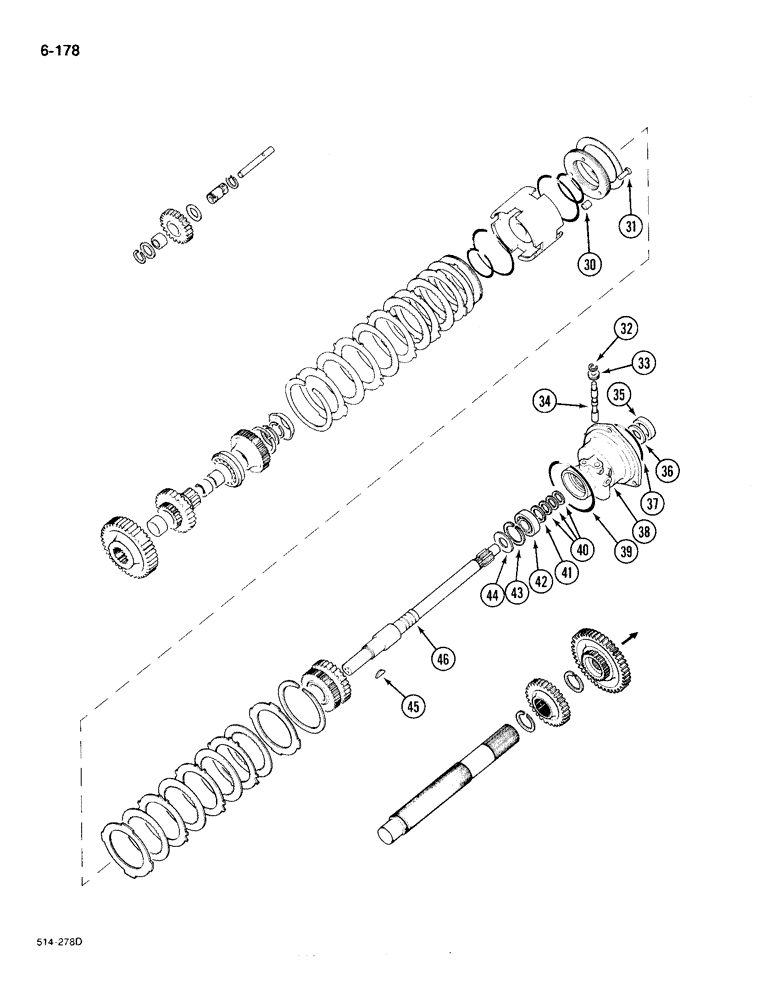

Запчасти Case IH 385 (6-178) - FORWARD AND REVERSE, SYNCHROMESH DRIVE (CONTD) (06) - POWER TRAIN

30

527769R2

SPACER

- piston

3шт.

31

527768R1

BOLT (SPREADER),Skt Hd, 1/4" - 28 x 1"

BOLT - forward/reverse piston return

3шт.

31

114530C1

BOLT

- forward/reverse piston return optional to P/N 527768R1

3шт.

65240C1

SQUARE NUT

- square, 1/4 inch NF

3шт.

32

896045R1

SNAP RING,#37, Ext

1шт.

33

531539R1

COLLAR

- control stem

1шт.

34

536974R1

STEM

- forward and reverse control

1шт.

35

3129030R2

SEAL,42.8mm ID x 63.65mm OD x 7.92mm Thk

SEAL - oil, release sleeve

1шт.

36

NSS

NOT SOLD SEPARAT

SEAL - PTO drive shaft, order kit P/N 1277488C1

1шт.

37

355740R1

O-RING,0.139" Thk x 3.734" ID, -240, Cl 5, 75 Duro

- 3-3/4 x 4 inch, class 5

1шт.

38

527761R4

CAGE

- retaining, IPTO clutch cup

1шт.

39

26969R1

O-RING,0.139" Thk x 5.234" ID, -252, Cl 6, 90 Duro

- 5-1/4 x 5-1/2 inch, class 6

1шт.

40

406275R1

RING

- clutch shaft piston, Serial Range: -5287

3шт.

40

85038C1

SEALING RING,27.15mm ID x 30.4mm OD x 2.29mm Thk

- clutch shaft piston, Start Serial: 18001

3шт.

41

3112664R1

SNAP RING

RING - retaining

1шт.

42

ST213

BALL BEARING,30 mm ID x 62 mm OD x 16 mm

BEARING - ball

1шт.

43

139743R1

RING

- clutch shaft bearing inner retainer

1шт.

44

527767R1

THRUST WASHER

WASHER - clutch shaft thrust

1шт.

45

88907

WOODRUFF KEY,#B, 5/16" x 1", HT

KEY - woodruff, 5/16 x 1 inch

1шт.

46

70014C2

PACKAGE, REPAIR

KIT - service, forward/reverse shaft/clutch cup, Serial Range: -5287

1шт.

46

92758C91

PACKAGE

KIT - service, forward/reverse shaft/clutch cup, Start Serial: 18001

1шт.

NSS

NOT SOLD SEPARAT

SHAFT

1шт.

NSS

NOT SOLD SEPARAT

CUP

1шт.

583976R1

SNAP RING,#125, 1.179", Ext

RING - retaining, external, 1.179 inch

1шт.

70020C1

SLINGER

- direct drive clutch

1шт.

222386

CAPSCREW,Set, Hdls, 1/4" - 20 x 1/4", Flat Pt

SCREW - set hex socket, 1/4 NC x 1/4 inch

2шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW - set hex socket, 1/4 NC x 1/4 inch, optional to P/N 222386

2шт.

88907

WOODRUFF KEY,#B, 5/16" x 1", HT

KEY - woodruff, 5/16 x 1 inch

1шт.
