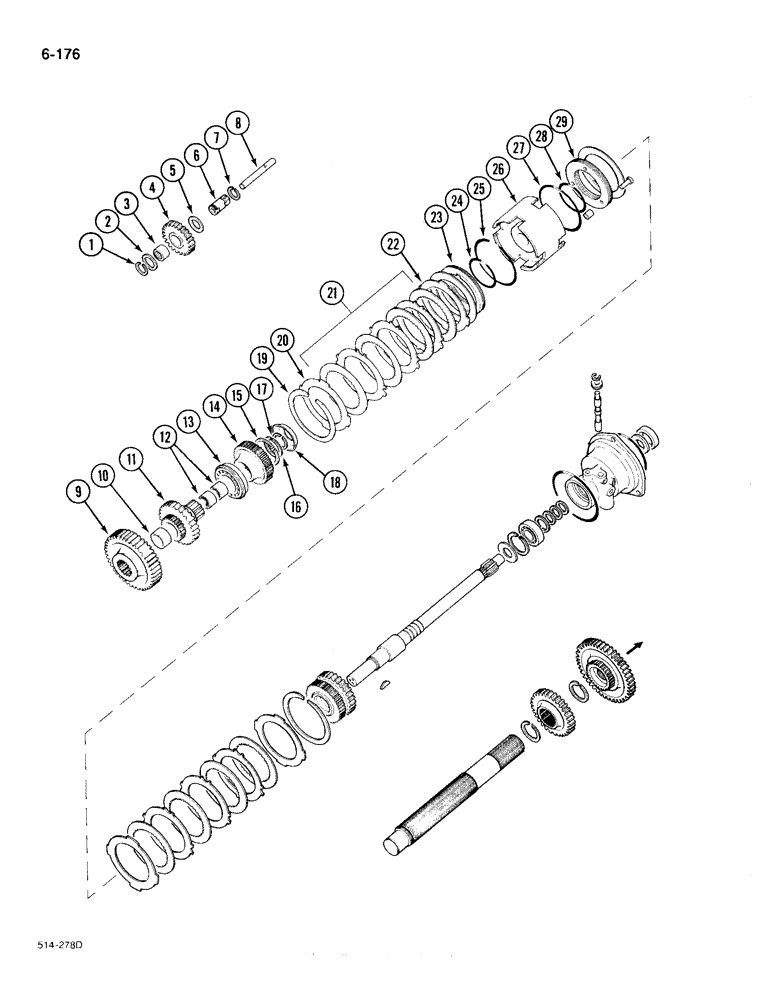

Запчасти Case IH 385 (6-176) - FORWARD AND REVERSE, SYNCHROMESH DRIVE (06) - POWER TRAIN

1

362260R1

RING, SNAP

RING - retainer, idler gear

1шт.

2

527772R1

WASHER

- forward/reverse idler gear

1шт.

3

551139R91

BEARING, NEEDLE

BEARING - needle

1шт.

4

527776R1

PINION

GEAR - forward/reverse idler, 23 teeth

1шт.

5

527772R1

WASHER

- forward/reverse idler gear

1шт.

6

527775R2

SLEEVE

- idler gear

1шт.

18543R1

LOCK PIN,7/32" x 1", Slotted

PIN, 7/32" x 1", Slotted

1шт.

7

362260R1

RING, SNAP

RING - retainer, idler gear

1шт.

591184R1

PIN,3/16" x 1 1/4", Coiled

1шт.

8

527774R1

SHAFT

- forward/reverse idler

1шт.

9

527773R2

GEAR

- hi-lo sliding, 42 teeth

1шт.

10

531168R91

BEARING, NEEDLE,Needle, 34.91mm ID x 44.44mm OD x 15.88mm W

BEARING - needle

1шт.

11

404200R3

PINION

GEAR - direct drive hub, 28 teeth

1шт.

12

550839R91

BEARING, NEEDLE

BEARING - needle

2шт.

13

ST243

BEARING, BALL,45 mm ID x 85 mm OD x 19 mm

BEARING - ball, direct drive gear

1шт.

14

404199R3

SPROCKET ASSY.

CARRIER - direct drive clutch disc

1шт.

15

70244C1

RING, SNAP

RING - internal snap

1шт.

16

336000R1

SNAP RING,#175, 1.640", Ext

RING - retaining, external, 1.64 inch

1шт.

17

583976R1

SNAP RING,#125, 1.179", Ext

RING - retaining, external, 1.179 inch

1шт.

18

70020C1

SLINGER

- direct drive clutch

1шт.

19

401720R1

CIRCLIP

RING - retaining, backing plate

1шт.

20

70016C1

PLATE

- clutch backing

1шт.

21

534937R92

PACKAGE, REPAIR

KIT - service, forward/reverse clutch plate

1шт.

NSS

NOT SOLD SEPARAT

PLATE - clutch separator

8шт.

NSS

NOT SOLD SEPARAT

PLATE - clutch driven

6шт.

401723R1

O-RING,69.32mm ID x 76.22mm OD x 1.75mm Thk

- piston, inner clutch piston, inner

2шт.

401724R1

SEAL,0.551" ID x 0.07" Width

O-RING - piston, outer clutch piston, outer

2шт.

22

402572R1

PLATE

- piston backing

1шт.

23

70017C1

PISTON

- direct drive clutch

1шт.

24

401723R1

O-RING,69.32mm ID x 76.22mm OD x 1.75mm Thk

- piston, inner clutch piston, inner

1шт.

25

401724R1

SEAL,0.551" ID x 0.07" Width

O-RING - piston, outer clutch piston, outer

1шт.

26

NSS

NOT SOLD SEPARAT

CUP - direct drive clutch, prior to P.I.N. 5287 order kit 92758C91, and P.I.N. 18001 and after order kit 70014C2

1шт.

27

401724R1

SEAL,0.551" ID x 0.07" Width

O-RING - piston, outer

1шт.

28

401723R1

O-RING,69.32mm ID x 76.22mm OD x 1.75mm Thk

- piston, inner - clutch piston, inner

1шт.

29

70017C1

PISTON

- direct drive clutch

1шт.
