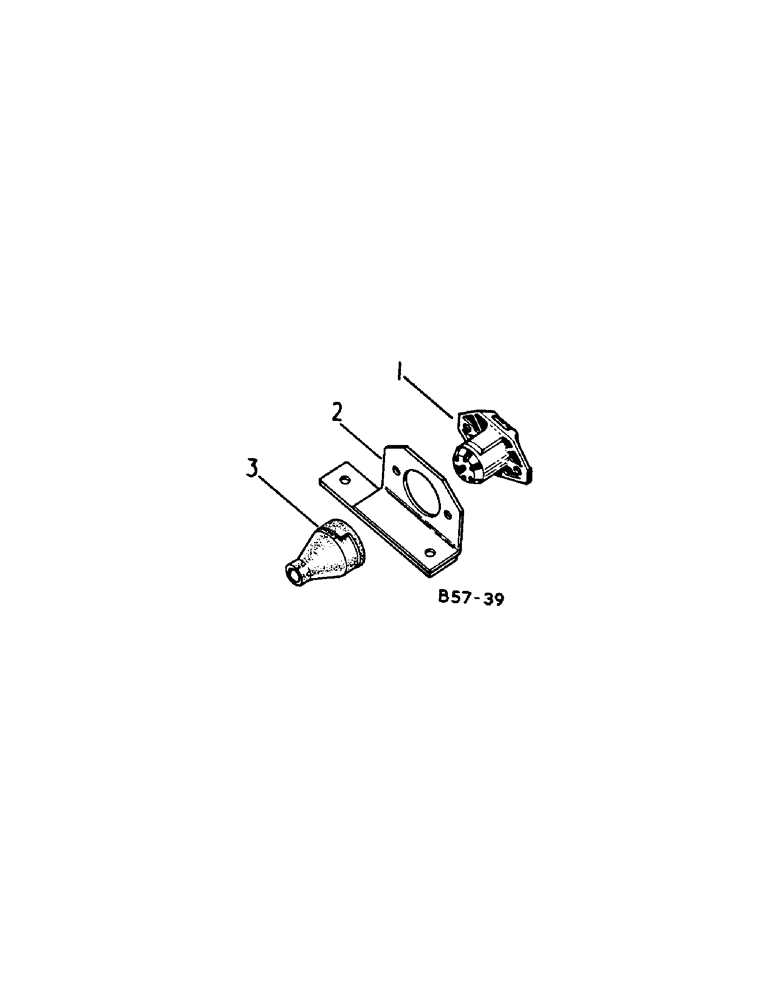

Запчасти Case IH 384 (08-09[1]) - ELECTRICAL, SEVEN PIN SOCKET (06) - ELECTRICAL

1

121645C1

MULTIPOLE CONNECTOR,7 Pin

SOCKET, 7 Pin

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 x 1 type 5

2шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .388 x .051

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

19296R1

NUT,5/16"-18, G5

5/16 CAD type 5

2шт.

2

3123203R1

BRACKET

ASSY, 7 pin socket

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 type 1

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

3

783611R1

BOOT

rubber

1шт.
