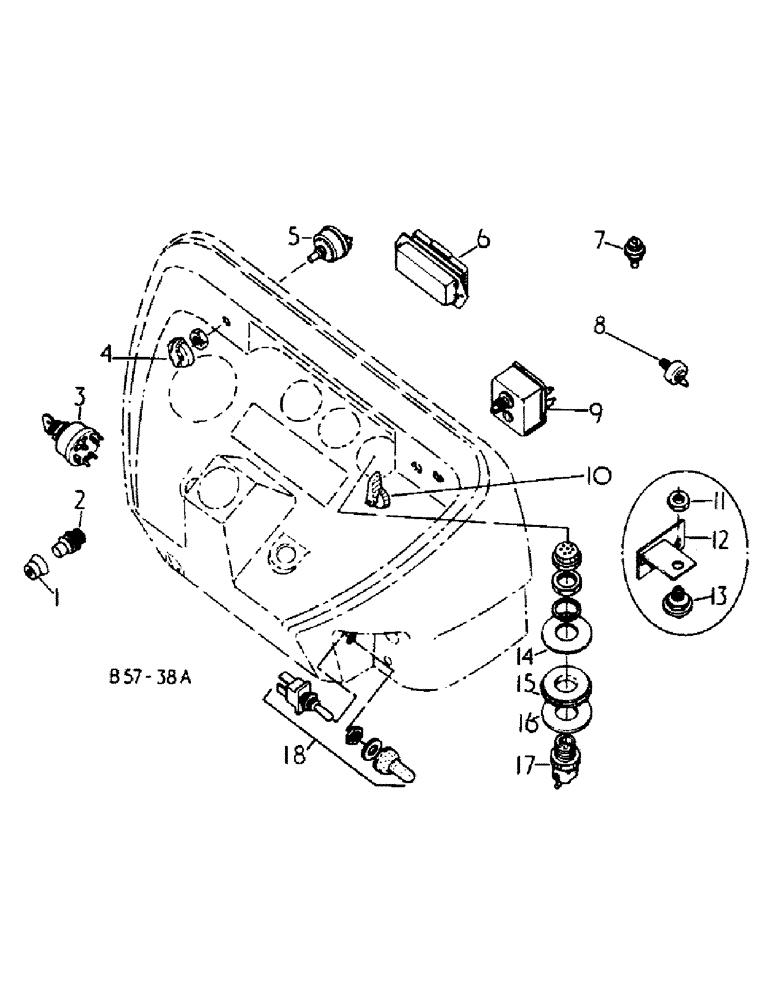

Запчасти Case IH 384 (08-08) - ELECTRICAL, ELECTRICAL SWITCHES AND FUSES (06) - ELECTRICAL

1

3121720R1

COVER ASSY

COVER, horn switch

1шт.

2

705266R91

HORN

SWITCH, horn

1шт.

3

3109707R91

SWITCH

W/TWO KEYS

1шт.

3110259R1

KEY

2шт.

4

KNOB, light switch, not serviced separately, order switch, 107200C2 (NSS)

1шт.

5

107200C2

LIGHT SWITCH

SWITCH, light

1шт.

6

3129948R1

BOX, FUSE

1шт.

160536

SCREW,Cross Pan Hd, 1/4" - 20 x 5/8"

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

3115813R1

FUSE

35 amp

1шт.

3118918R1

FUSE

10 amp, optional with

1шт.

3118918R1

FUSE

10 amp

1шт.

3123157R1

COVER

fuse box

1шт.

7

3073787R91

TRANSMITTER

water temperature

1шт.

8

3106558R1

PRESSURE SWITCH

SWITCH ASSY, oil pressure

1шт.

9

107334C91

SWITCH

FLASHER

1шт.

10

71485C1

PACKAGE

KNOB, flasher

1шт.

11

3112570R1

NUT

NUT, safety start switch lock

1шт.

12

3112571R1

BRACKET

safety switch support

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

95-11034

WASHER,1/4"

.344 x .688 x .051 pln

2шт.

13

3072122R93

SWITCH

safety start

1шт.

14

3121937R1

SEALING WASHER

insulating top

1шт.

15

3121938R1

SEALING WASHER

insulating bottom

1шт.

16

3121939R1

WASHER

steel

1шт.

17

3121936R1

RESISTOR

indicator

1шт.

18

3125854R1

SWITCH

headlight dip

1шт.
